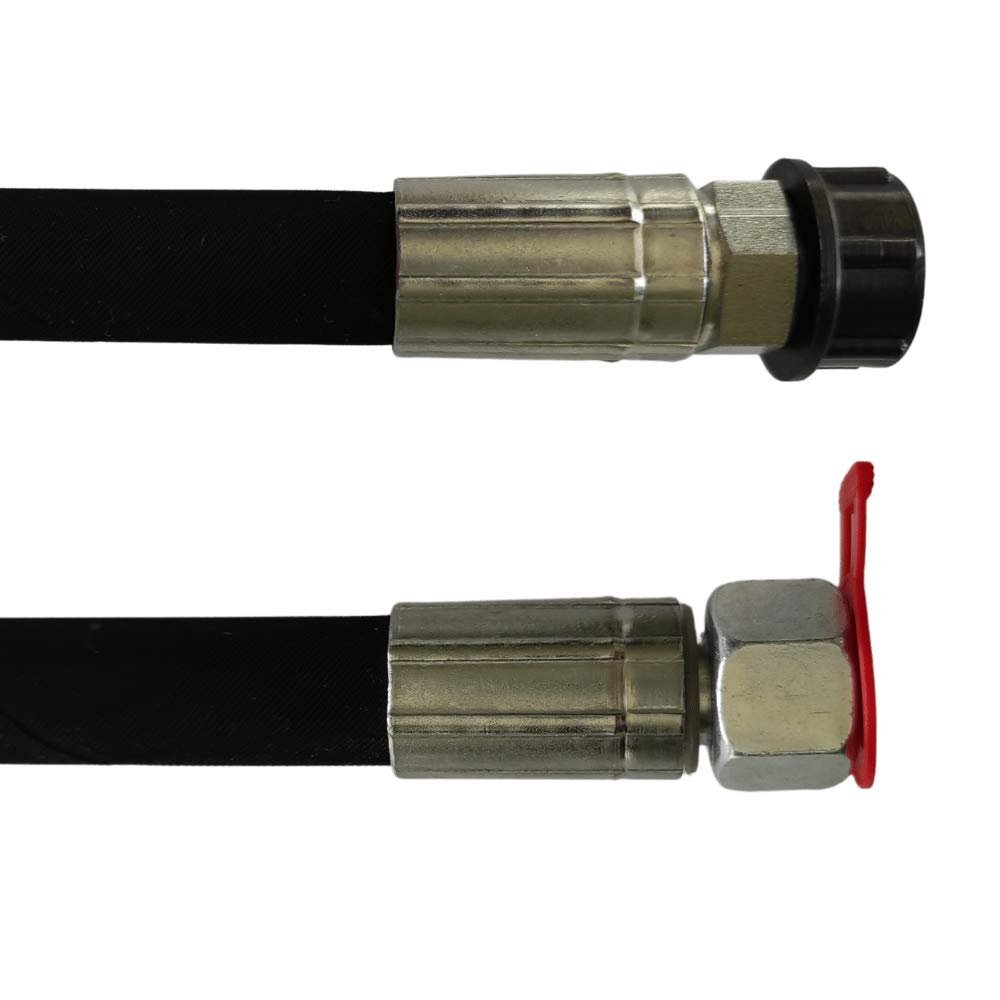

Hydraulic Hose 5600 mm 2SN DN13, G 1/2 in Thread, DKR–AGR, 275 bar

Description

• Length: 5600 mm; hose type: 2SN; nominal diameter: DN13
• Thread: G 1/2 in; nominal pressure: 275 bar
• Standard: DIN EN 853 2SN
• Resistant to mineral-based hydraulic fluids, glycol-water mixtures, water-oil emulsions, heating oil, and diesel
• Connection options: straight DKR, 90 angled DKR, 45 angled DKR, or AGR
• DKR: sealing cone with O-ring and union nut, G 1/2 in
• AGR: internal cone with external thread, G 1/2 in
• Tube: abrasion-resistant synthetic rubber, resistant to oil, fuel, and weather
• Reinforcement: two high-tensile steel wire braids
• Recommended fluids: petroleum-based hydraulic fluids, glycol-water-based fluids, and lubricants
• Temperature resistance: -40C to +100C (-40F to +212F); briefly up to +120C (257F)
• Custom-made according to customer specifications; excluded from returns, exchanges, and cancellation

Hydraulic hose 2SN, 5600 mm long, DN13, with DKRAGR connections and G 1/2 in thread. The hose has a nominal pressure of 275 bar and complies with DIN EN 853 2SN. It is resistant to mineral-based hydraulic fluids, glycol-water mixtures, water-oil emulsions, heating oil, and diesel. Connection options include a straight DKR, a 90 angled DKR, a 45 angled DKR, or an AGR connection. DKR connections feature a sealing cone with an O-ring and union nut; the AGR connection features an internal cone with an external thread. The hose has an abrasion-resistant synthetic rubber tube, two high-tensile steel wire braids, and a temperature resistance of -40C to +100C (-40F to +212F), briefly up to +120C (257F). Because these hydraulic hoses are manufactured to customer measurements and specifications, they are custom-made products and are excluded from returns, exchanges, and cancellation.
