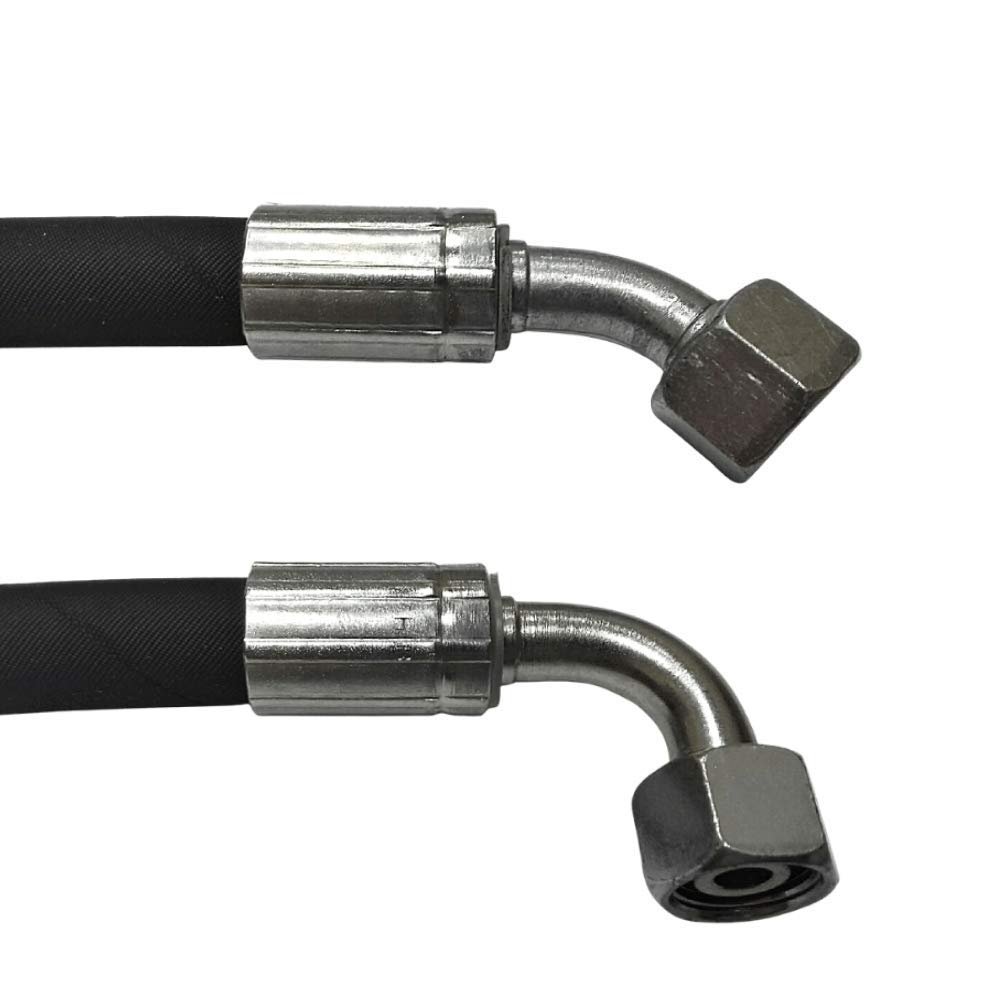

Hydraulic Hose 5300 mm 2SN DN12 (13) 15L, M22x1.5, 275 bar

RHINECART BASICS

Hydraulic Hose 5300 mm 2SN DN12 (13) 15L, M22x1.5, 275 bar

£118.63 £197.72
Free Shipping Sitewide
  • Order within to get between
  • Tracked Shipping on All Orders
  • 14-Day Returns
  • Secure Payments
  • 24/7 Customer Support

Description

  • 2SN hydraulic hose, 5300 mm, DN12 (13) 15L, DKOL 45DKOL 90, thread M22x1.5
  • Resistant to mineral-based hydraulic fluids, glycol-water mixtures, water-oil emulsions, heating oil, and diesel
  • Connection options: straight DKOL with sealing cone, O-ring, and 15L union nut (M22x1.5)
  • Connection options: 90 angled DKOL with sealing cone, O-ring, and 15L union nut (M22x1.5)
  • Connection options: 45 angled DKOL with sealing cone, O-ring, and 15L union nut (M12x1.5)
  • Connection option: CEL with internal cone and external 15L thread (M22x1.5)
  • Inner tube: abrasion-resistant synthetic rubber, resistant to oil, fuel, and weathering
  • Reinforcement: two high-tensile steel wire braids
  • Recommended fluids: petroleum-based hydraulic fluids, glycol-water-based fluids, and lubricants
  • Temperature resistance: -40C to +100C (-40F to +212F); briefly up to +120C (257F)
  • Standard: DIN EN 853 2SN
  • Nominal pressure: 275 bar
  • Custom-made to customer specifications; excluded from returns, exchanges, and cancellation
