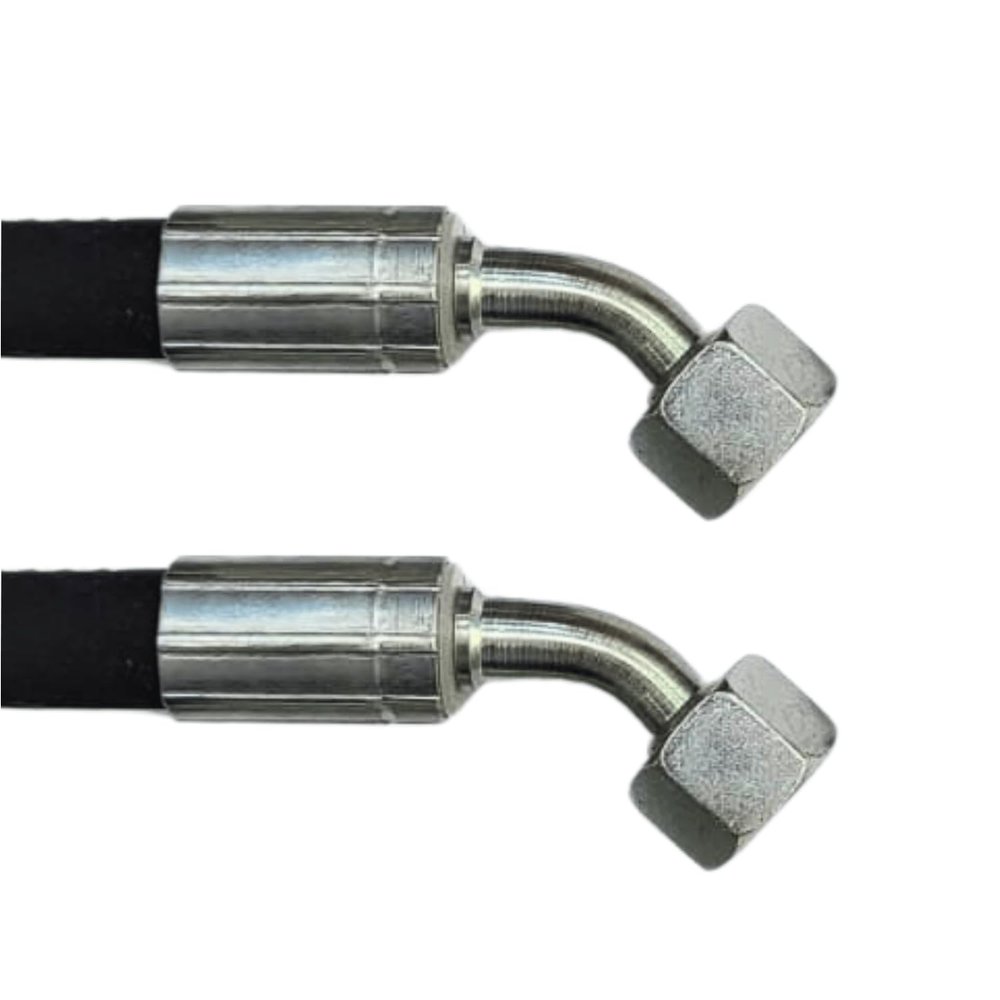

Hydraulic Hose 300 mm 1SN DN10 | G3/8" Thread | DKR45-DKR45 | 180 bar Rated Pressure

Description

• Hydraulic hose 1SN, 300 mm, DN10, DKR45-DKR45, G3/8" thread
• Resistant to mineral-based hydraulic fluids, glycol-water mixtures, water-oil emulsions, heating oil, and diesel
• Connection options: straight DKR, 90 angled DKR, 45 angled DKR, or AGR; all with G3/8" connection
• DKR: sealing cone with O-ring and union nut; AGR: female cone with male thread
• Inner tube: abrasion-resistant synthetic rubber, resistant to oil, fuel, and weathering
• Reinforcement: one high-tensile steel wire braid
• Recommended fluids: petroleum-based hydraulic fluid, glycol-water-based fluids, and lubricants
• Temperature resistance: -40C to +100C (-40F to +212F), briefly up to +120C (257F)
• Standard: DIN EN 853 1SN
• Rated pressure: 180 bar
• Custom-made products are excluded from returns, exchanges, and cancellation

Hydraulic hose, 300 mm long, type 1SN, DN10, with DKR45-DKR45 connections and G3/8" thread. Rated pressure: 180 bar. Standard: DIN EN 853 1SN. The hose is resistant to mineral-based hydraulic fluids, glycol-water mixtures, water-oil emulsions, heating oil, and diesel. Available connection options include straight DKR, 90 angled DKR, 45 angled DKR, or AGR. The inner tube is made of abrasion-resistant synthetic rubber and is resistant to oil, fuel, and weathering. It has one high-tensile steel wire braid and is temperature-resistant from -40C to +100C (-40F to +212F), briefly up to +120C (257F). Because these hydraulic hoses are manufactured according to the customer's specifications and requirements, they are custom-made products and are excluded from returns, exchanges, and cancellation.
