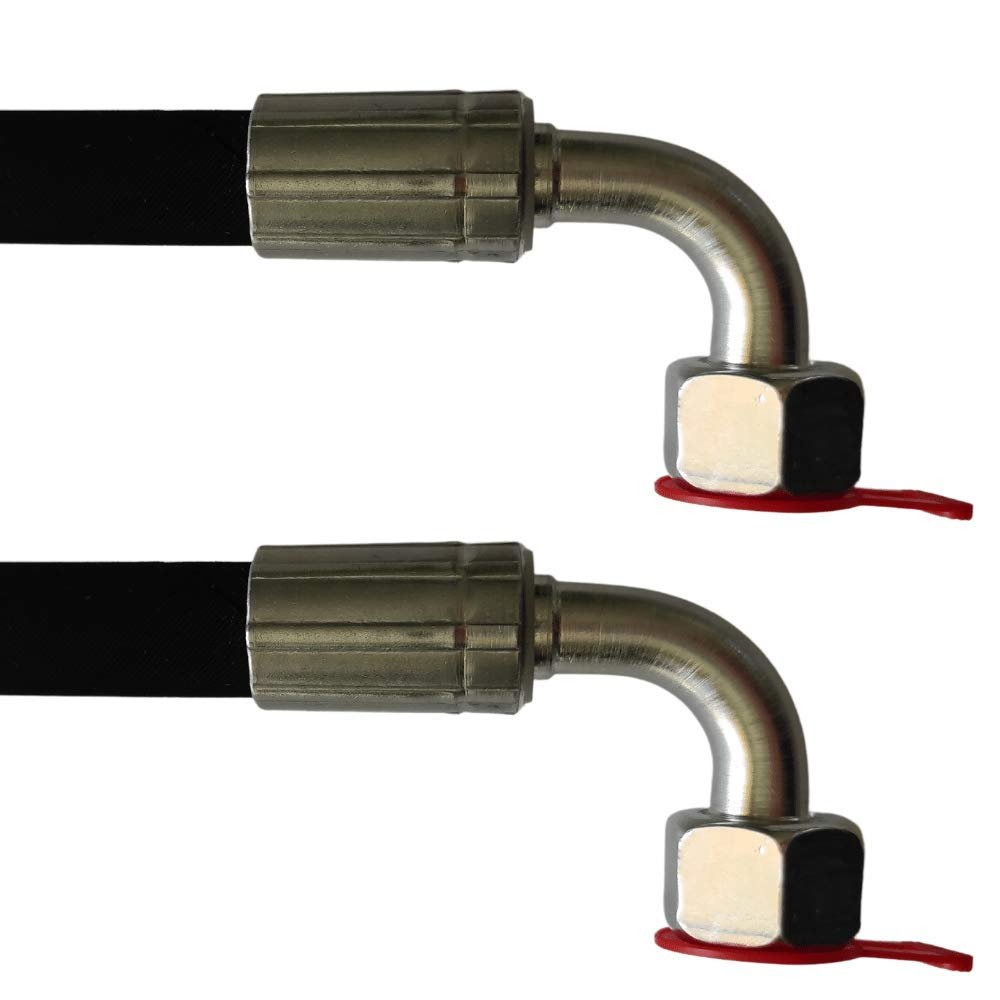

Hydraulic Hose 1SN DN13, 600 mm, M24 x 1.5, DKOS90-DKOS90, 160 bar

Description

• Length: 600 mm; nominal size DN13; size 16S
• Connections: DKOS90-DKOS90; thread M24 x 1.5
• Standard: DIN EN 853; hose type: 1SN
• Nominal pressure: 160 bar
• Compatible with mineral-based hydraulic fluids, glycol-water mixtures, water-oil emulsions, heating oil, and diesel
• Optional connections: straight DKOS, 90 DKOS, 45 DKOS, or CES
• Connection design: sealing cone with O-ring and union nut, or CES internal cone with male thread
• Tube: abrasion-resistant synthetic rubber, resistant to oil, fuel, and weather
• Reinforcement: 1 high-tensile steel wire braid
• Temperature range: -40C to +100C; briefly up to +120C

Hydraulic hose type 1SN, 600 mm long, DN13 (size 16S), with DKOS90-DKOS90 connections and M24 x 1.5 thread. The hose is suitable for mineral-based hydraulic fluids, glycol-water mixtures, water-oil emulsions, heating oil, and diesel. It features an abrasion-resistant synthetic rubber tube and one high-tensile steel wire braid. Temperature resistance is -40C to +100C, briefly up to +120C (-40F to +212F, briefly up to 257F). The hose complies with DIN EN 853 and has a nominal pressure of 160 bar. As these hydraulic hoses are manufactured to the customer's specified dimensions and requirements, they are custom-made and excluded from returns, exchanges, and cancellation.
