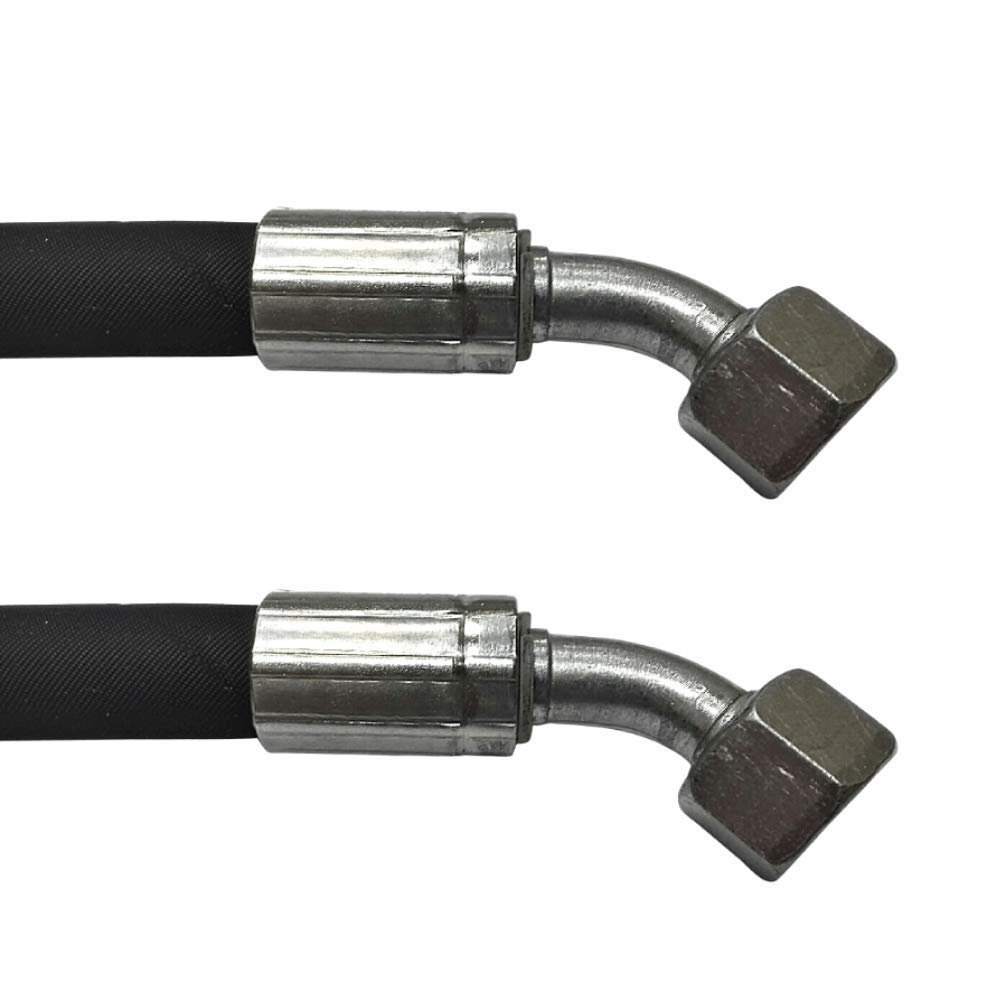

Hydraulic Hose 1SN DN10, 600 mm, 12L, DKOL45–DKOL45, 180 bar

Description

• Length: 600 mm; nominal size: DN10 (12L); thread: M18 1.5
• Connections: DKOL45DKOL45; 45 sealing cones with O-rings and 12L union nuts
• Compatible with mineral-based hydraulic fluids, glycol-water mixtures, water-oil emulsions, heating oil, and diesel
• Optional connections: straight DKOL, 90 angled DKOL, 45 angled DKOL, or CEL with female cone and 12L male thread
• Construction: abrasion-resistant synthetic rubber tube with one high-tensile steel wire braid
• Temperature range: -40C to +100C; briefly up to +120C
• Standard: DIN EN 853; hose type: 1SN; nominal pressure: 180 bar
• Custom-made product: excluded from returns, exchanges, and cancellation

Hydraulic hose type 1SN, 600 mm long, DN10 (12L), with DKOL45DKOL45 connections and M18 1.5 threads. The hose is suitable for mineral-based hydraulic fluids, glycol-water mixtures, water-oil emulsions, heating oil, and diesel. It features an abrasion-resistant synthetic rubber tube that is resistant to oil, fuel, and weathering, reinforced with one high-tensile steel wire braid. Recommended fluids include petroleum-based hydraulic fluids, glycol-water-based fluids, and lubricants. Operating temperature is -40C to +100C, briefly up to +120C (257F). Manufactured to DIN EN 853 with a nominal pressure of 180 bar. As this hydraulic hose is manufactured to the customer's specified dimensions and requirements, it is a custom-made product and is excluded from returns, exchanges, and cancellation.
