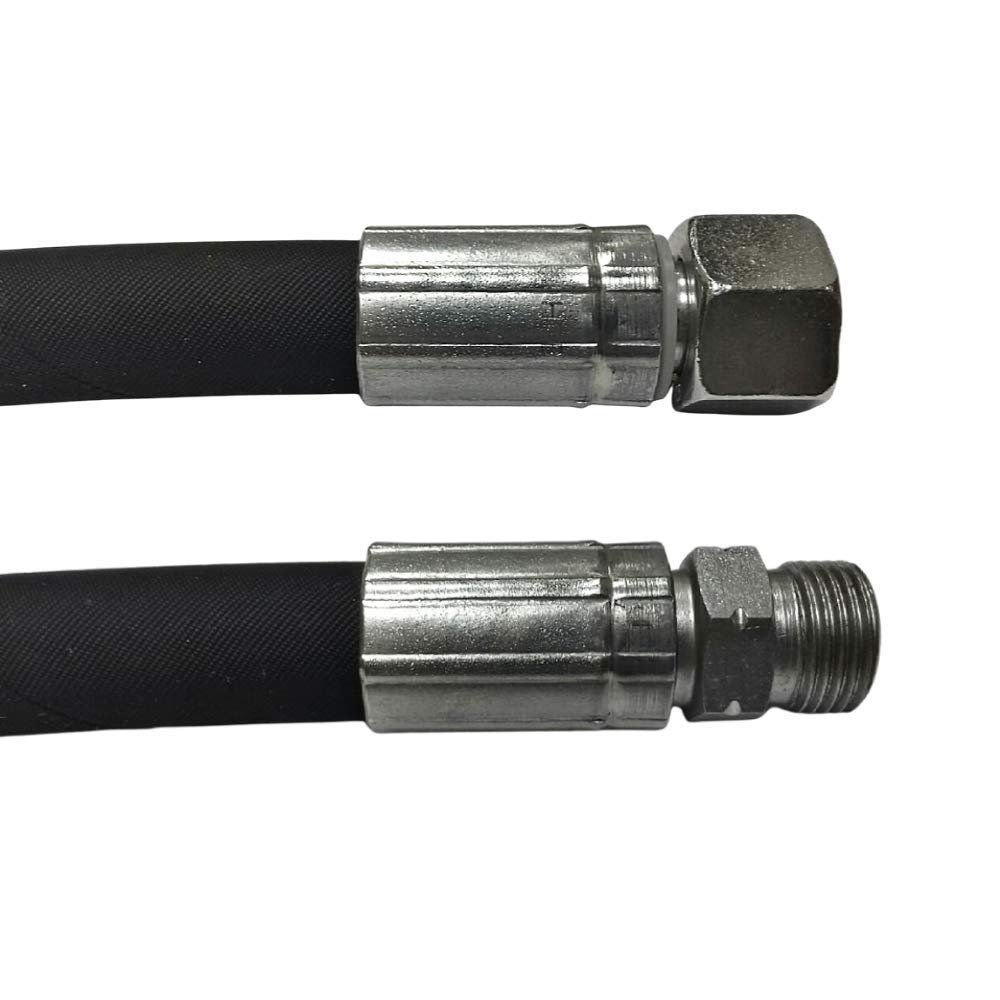

Hydraulic Hose 1SN DN10, 1900 mm, 12L, M18x1.5, 180 bar

Description

• Type 1SN hydraulic hose, 1900 mm long, DN10 (12L)
• DKOL-CEL connections with M18x1.5 thread
• Available connections: straight DKOL, 90 DKOL, 45 DKOL, or CEL
• Suitable for mineral-based hydraulic fluids, glycol-water mixtures, water-oil emulsions, heating oil, and diesel
• Abrasion-resistant synthetic rubber inner tube; oil-, fuel-, and weather-resistant
• One high-tensile steel wire braid; temperature range: -40C to +100C, briefly up to +120C
• Standard: DIN EN 853; nominal pressure: 180 bar
• Custom-made product; excluded from returns, exchanges, and cancellation

Configure your 1900 mm hydraulic hose with 1SN construction, DN10 (12L) size, M18x1.5 thread, and DKOL-CEL connection options. Choose between a straight DKOL connection with sealing cone, O-ring, and 12L union nut, a 90 or 45 angled DKOL connection, or a CEL connection with internal cone and 12L male thread. DKOL connections require a 22 mm wrench; CEL connections require a 19 mm wrench. The hose has an abrasion-resistant synthetic rubber inner tube and one high-tensile steel wire braid. It is suitable for mineral-based hydraulic fluids, glycol-water mixtures, water-oil emulsions, heating oil, diesel, and lubricants. Temperature resistance is -40C to +100C, briefly up to +120C. The hose complies with DIN EN 853 and has a nominal pressure of 180 bar. Because these hydraulic hoses are manufactured to the customer's specified dimensions and requirements, they are custom-made products and are excluded from returns, exchanges, and cancellation.
