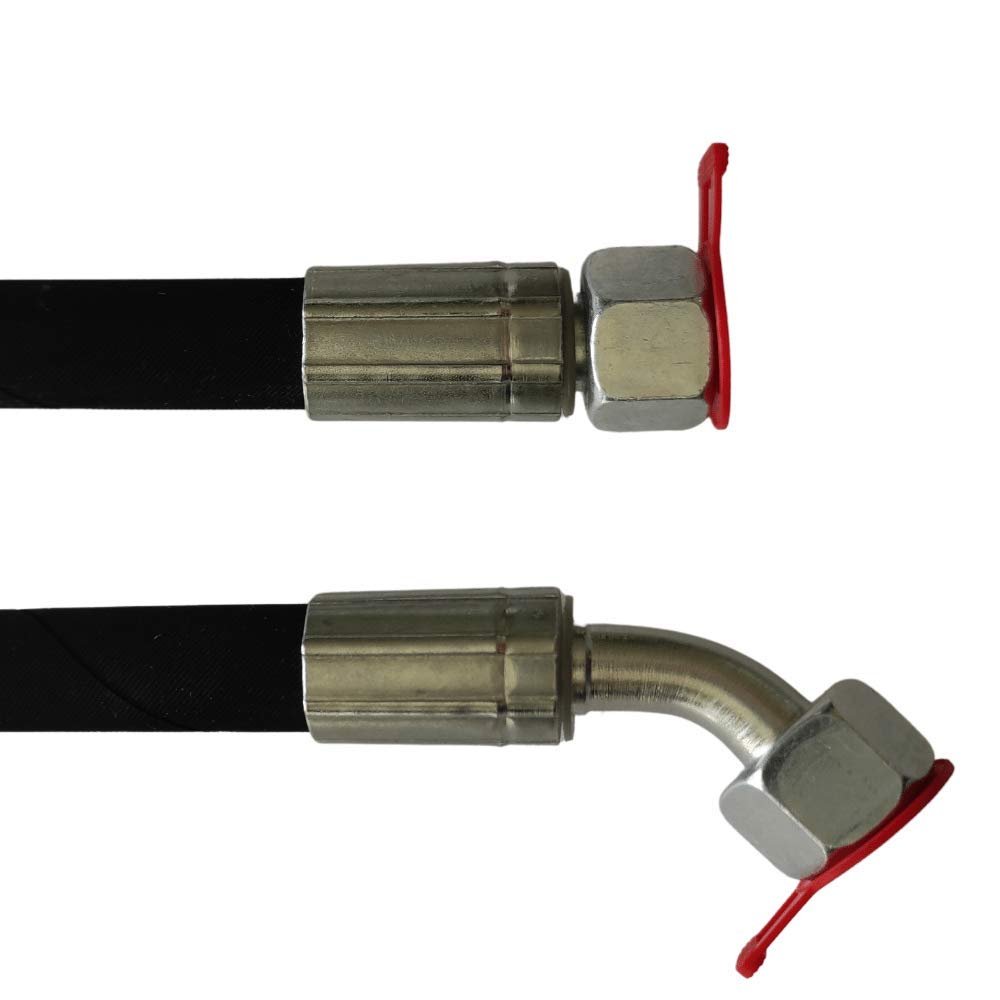

Hydraulic Hose 1SN 3300 mm DN13, M24 x 1.5, DKOS/DKOS45, 160 bar

Description

• Length: 3300 mm; nominal size: DN13 (16S)
• Thread: M24 x 1.5
• Connection options: straight DKOS, 90 DKOS, 45 DKOS, or CES
• DKOS connections with sealing cone, O-ring, and 16S union nut
• CES connection with internal cone and 16S male thread
• Resistant to mineral-based hydraulic fluids, glycol-water mixtures, water-oil emulsions, heating oil, and diesel
• Inner tube: abrasion-resistant synthetic rubber, resistant to oil, fuel, and weathering
• Reinforcement: one high-tensile steel wire braid
• Recommended fluids: petroleum-based hydraulic fluid, glycol-water-based fluids, and lubricants
• Temperature range: -40C to +100C (-40F to +212F); briefly up to +120C (257F)
• Standard: DIN EN 853; hose type: 1SN
• Nominal pressure: 160 bar
• Custom-made product; excluded from returns, exchanges, and cancellation

Hydraulic hose 1SN, 3300 mm long, DN13 (16S), with M24 x 1.5 thread and DKOS/DKOS45 connection options. Available with a straight DKOS connection, a 90 angled DKOS connection, a 45 angled DKOS connection, or a CES connection. The DKOS connections feature a sealing cone with O-ring and 16S union nut (M24 x 1.5); the CES connection features an internal cone with 16S male thread (M24 x 1.5). The hose has an abrasion-resistant synthetic rubber inner tube that is resistant to oil, fuel, and weathering, reinforced with one high-tensile steel wire braid. Suitable for mineral-based hydraulic fluids, glycol-water mixtures, water-oil emulsions, heating oil, diesel, petroleum-based hydraulic fluids, and lubricants. Temperature resistance is -40C to +100C (-40F to +212F), briefly up to +120C (257F). Manufactured according to DIN EN 853, hose type 1SN, with a nominal pressure of 160 bar. As this hydraulic hose is manufactured to the customer's specified dimensions and requirements, it is a custom-made product and excluded from returns, exchanges, and cancellation.
