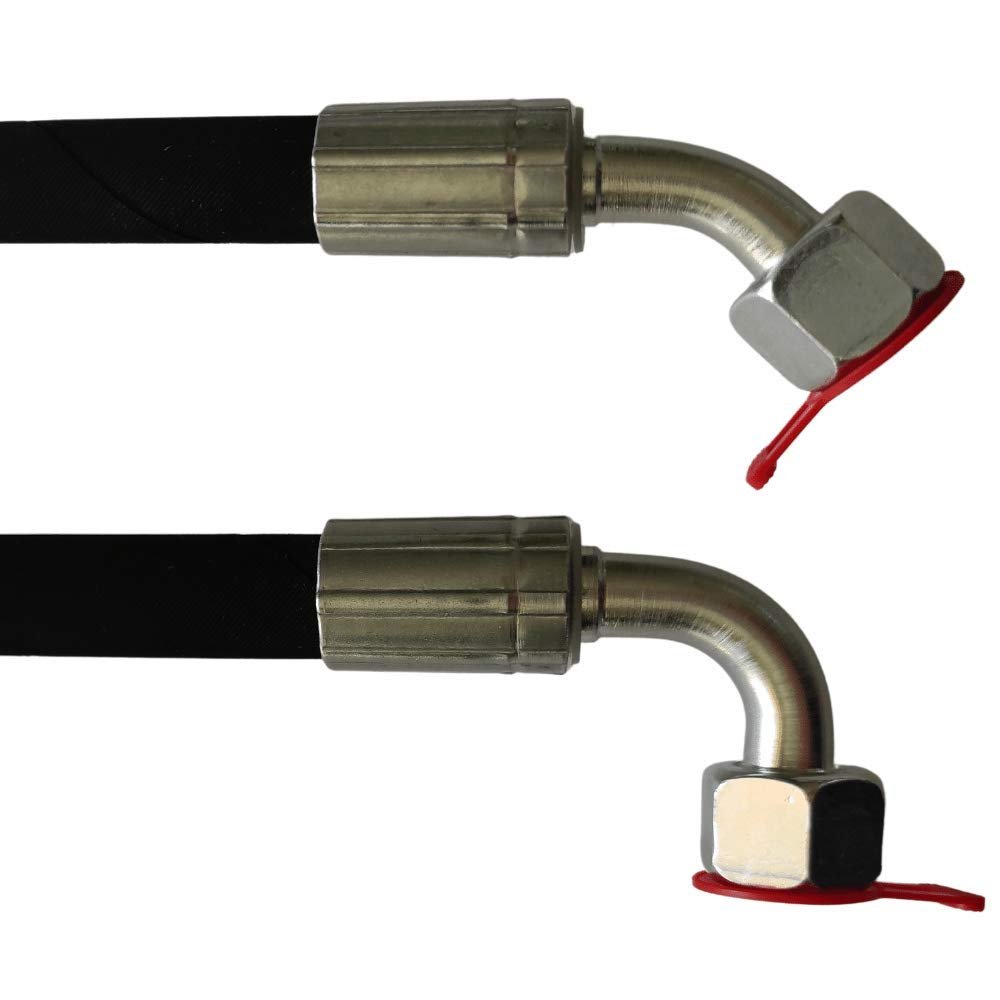

Hydraulic Hose 1SN 2600 mm DN13, M24 x 1.5, 160 bar

Description

• Length: 2600 mm; nominal size: DN13; hose type: 1SN
• Thread: M24 x 1.5; size 16S
• Connection options: straight DKOS, 90 DKOS, 45 DKOS, or CES
• DKOS: sealing cone with O-ring and 16S union nut
• CES: internal cone with 16S male thread
• Compatible with mineral-based hydraulic fluids, glycol-water mixtures, water-oil emulsions, heating oil, and diesel
• Tube: abrasion-resistant synthetic rubber, resistant to oil, fuel, and weathering
• Reinforcement: 1 high-tensile steel wire braid
• Recommended fluids: petroleum-based hydraulic fluid, glycol-water-based fluids, and lubricants
• Temperature range: -40C to +100C (-40F to +212F); briefly up to +120C (257F)
• Standard: DIN EN 853; nominal pressure: 160 bar
• Custom-made according to specified dimensions; excluded from returns, exchanges, and cancellation

Hydraulic hose, type 1SN, 2600 mm long, DN13, size 16S, with M24 x 1.5 thread and a nominal pressure of 160 bar. Connection options include straight DKOS, 90 bent DKOS, 45 bent DKOS, or CES. DKOS connections feature a sealing cone with O-ring and 16S union nut; the CES connection has an internal cone with 16S male thread. The hose is suitable for mineral-based hydraulic fluids, glycol-water mixtures, water-oil emulsions, heating oil, and diesel. It has an abrasion-resistant synthetic rubber tube, one high-tensile steel wire braid, and a temperature resistance of -40C to +100C (-40F to +212F), briefly up to +120C (257F). Manufactured to customer-specified dimensions and requirements; therefore, it is excluded from returns, exchanges, and cancellation.
