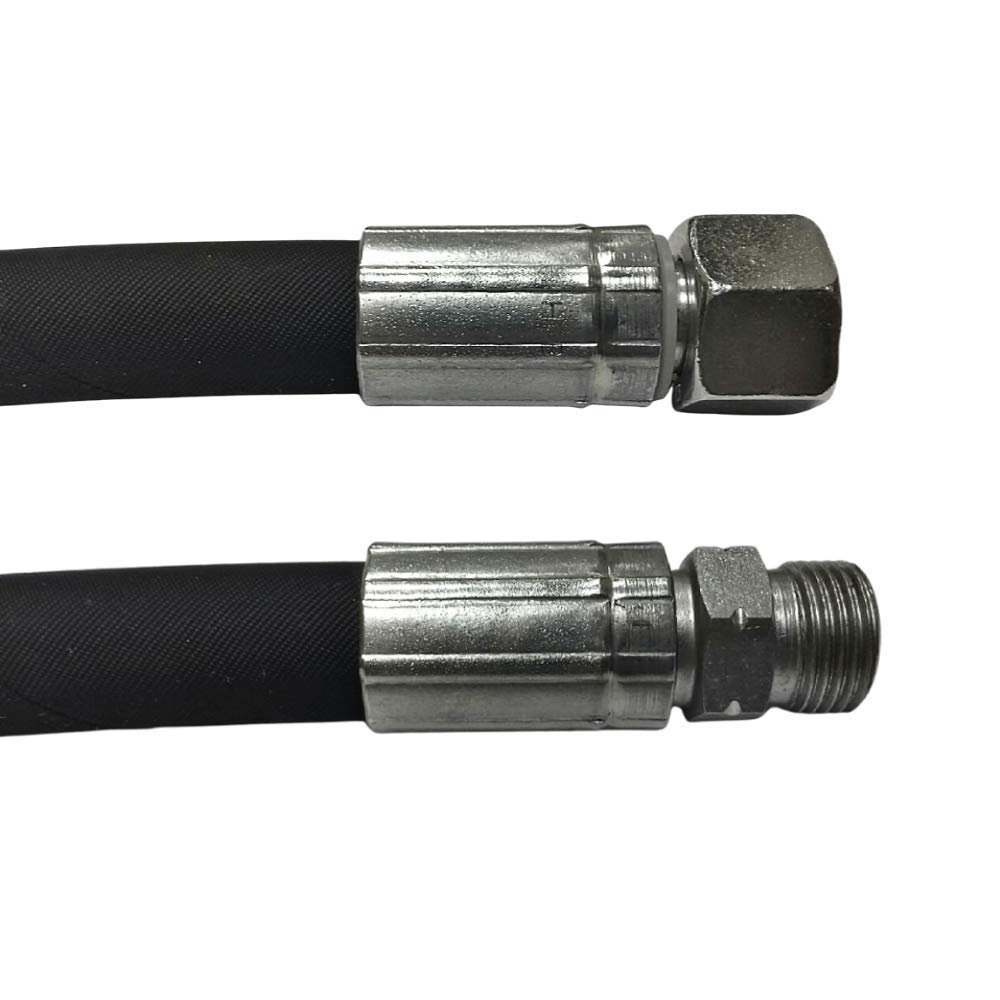

Hydraulic Hose 1SN, 1,800 mm, DN10, 12L, M18x1.5, 180 bar

Description

• Length: 1,800 mm; nominal size: DN10 (12L)
• Hose type: 1SN; standard: DIN EN 853
• Nominal pressure: 180 bar
• Thread: M18x1.5
• Connection options: straight DKOL, 90 DKOL, 45 DKOL, or CEL
• DKOL fittings: sealing cone with O-ring and 12L union nut; 22 mm wrench size
• CEL fitting: female cone with 12L male thread; 19 mm wrench size
• Resistant to mineral-based hydraulic fluids, glycol-water mixtures, water-oil emulsions, heating oil, and diesel
• Tube: abrasion-resistant synthetic rubber, resistant to oil, fuel, and weathering
• Reinforcement: 1 high-tensile steel wire braid
• Recommended fluids: petroleum-based hydraulic fluids, glycol-water-based fluids, and lubricants
• Temperature range: -40C to +100C (-40F to +212F); briefly up to +120C (257F)
• Custom-made products are excluded from returns, exchanges, and cancellation

Configure your custom hydraulic hose: 1,800 mm long, DN10 (12L), type 1SN, with M18x1.5 thread and DKOL-CEL connection options. The hose has a nominal pressure of 180 bar and complies with DIN EN 853. Choose between straight, 90 angled, or 45 angled DKOL fittings, or a CEL fitting. Because these hydraulic hoses are manufactured according to your specifications and requirements, they are custom-made and excluded from returns, exchanges, and cancellation.
