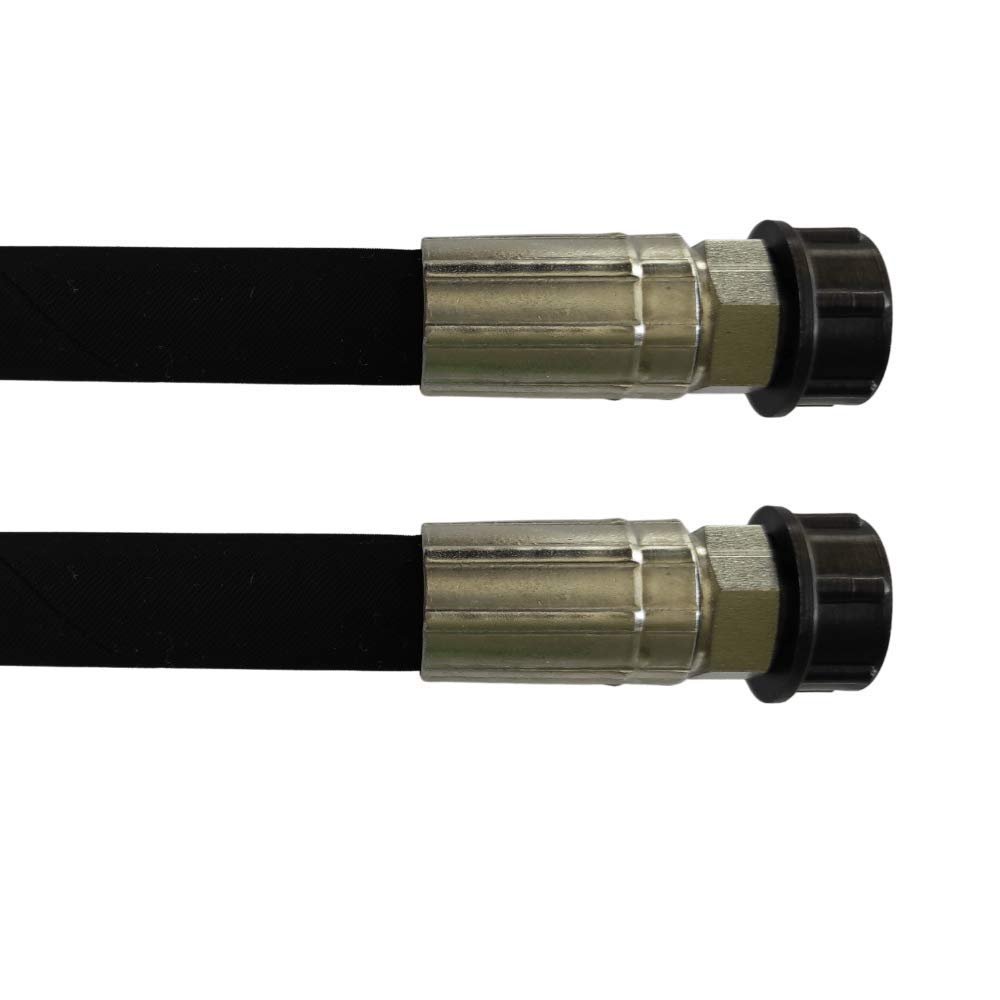

Hydraulic Hose 16S, 6,500 mm, 2SN DN13, M24 x 1.5, CES-CES, 275 bar

Description

• Length: 6,500 mm; hose type: 2SN; nominal size: DN13 (16S)
• Connections: CES-CES; thread: M24 x 1.5
• Nominal pressure: 275 bar; standard: DIN EN 853 2SN
• Resistant to mineral-oil-based hydraulic fluids, glycol-water mixtures, water-oil emulsions, heating oil, and diesel
• Optional connections: straight DKOS, 90 angled DKOS, 45 angled DKOS, or CES
• DKOS: sealing cone with O-ring and 16S union nut (M24 x 1.5)
• CES: internal cone with 16S male thread (M24 x 1.5)
• Tube: abrasion-resistant synthetic rubber, resistant to oil, fuel, and weathering
• Reinforcement: two high-tensile braided steel wire layers
• Recommended fluids: petroleum-based hydraulic fluid, glycol-water-based fluids, and lubricants
• Temperature resistance: -40C to +100C (-40F to +212F); briefly up to +120C (257F)
• Custom-made according to customer specifications; hydraulic hoses are excluded from returns, exchanges, and cancellation

Hydraulic hose 2SN, 6,500 mm, DN13 (16S), with CES-CES connections and M24 x 1.5 thread. The hose has a nominal pressure of 275 bar and complies with DIN EN 853 2SN. It is resistant to mineral-oil-based hydraulic fluids, glycol-water mixtures, water-oil emulsions, heating oil, and diesel. The hose features abrasion-resistant synthetic rubber with resistance to oil, fuel, and weathering, reinforced by two high-tensile braided steel wire layers. Temperature resistance is -40C to +100C (-40F to +212F), briefly up to +120C (257F). As this is a custom-made product manufactured according to the customer's specifications, hydraulic hoses are excluded from returns, exchanges, and cancellation.
