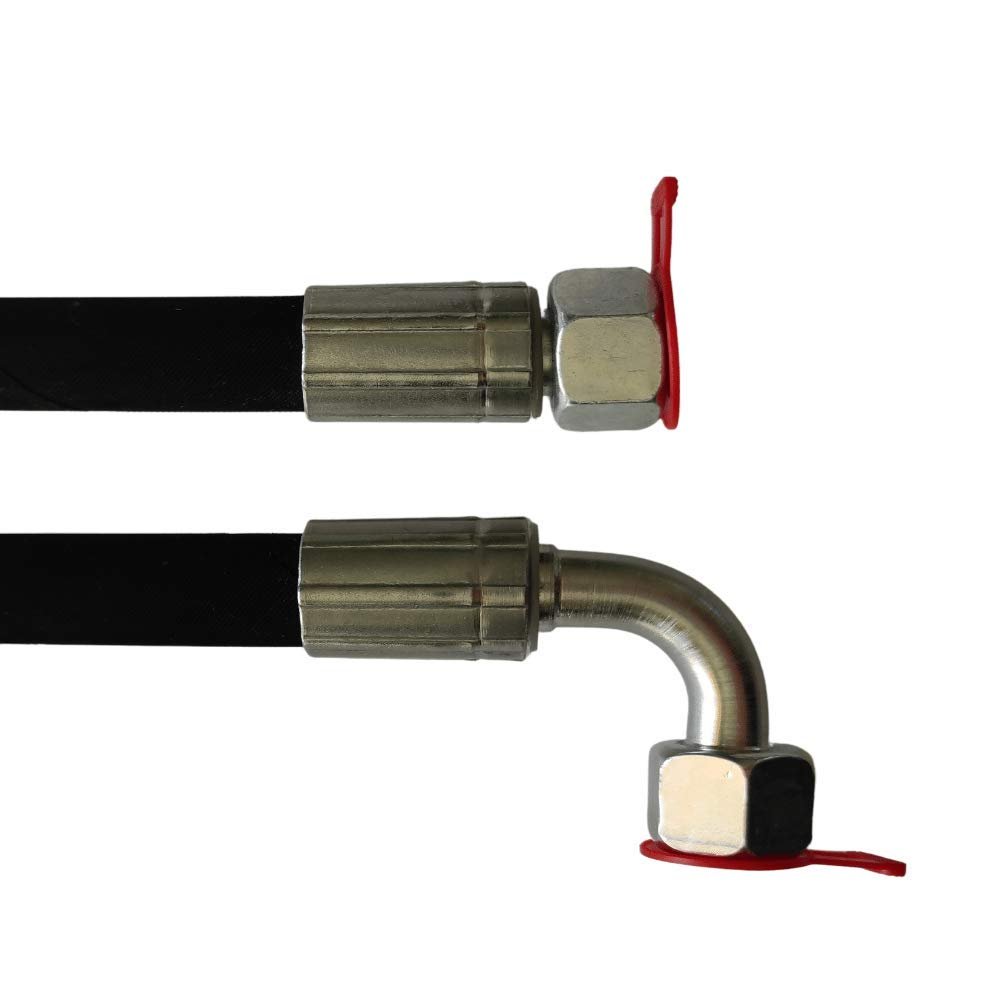

Hydraulic Hose 16S, 5300 mm, 1SN DN13, M24 x 1.5, DKOS/DKOS90, 160 bar

Description

• Length: 5300 mm; nominal size: DN13; hose type: 1SN
• Thread: M24 x 1.5; nominal pressure: 160 bar
• Connection options: straight DKOS, 90 DKOS, 45 DKOS, or CES
• Suitable for mineral-based hydraulic fluids, glycol-water mixtures, water-oil emulsions, heating oil, and diesel
• Inner tube: abrasion-resistant synthetic rubber, resistant to oil, fuel, and weathering
• Reinforcement: 1 high-tensile steel wire braid; temperature range: -40C to +100C, briefly up to +120C
• Standard: DIN EN 853
• Custom-made product: excluded from returns, exchanges, and cancellation

Hydraulic hose 1SN, 5300 mm, DN13, size 16S, with M24 x 1.5 thread and DKOS/DKOS90 connection options. The connection may be selected as a straight DKOS sealing cone with O-ring and size 16S union nut, a 90 or 45 angled DKOS connection with O-ring and size 16S union nut, or a CES internal cone with size 16S external thread. The hose has an abrasion-resistant synthetic rubber inner tube that is resistant to oil, fuel, and weathering, with one high-tensile steel wire braid. Recommended fluids include petroleum-based hydraulic fluids, glycol-water-based fluids, and lubricants. Temperature resistance is -40C to +100C (-40F to +212F), briefly up to +120C (257F). Because the hydraulic hoses are manufactured to the customer's specified measurements and requirements, they are custom-made products and are excluded from returns, exchanges, and cancellation.
