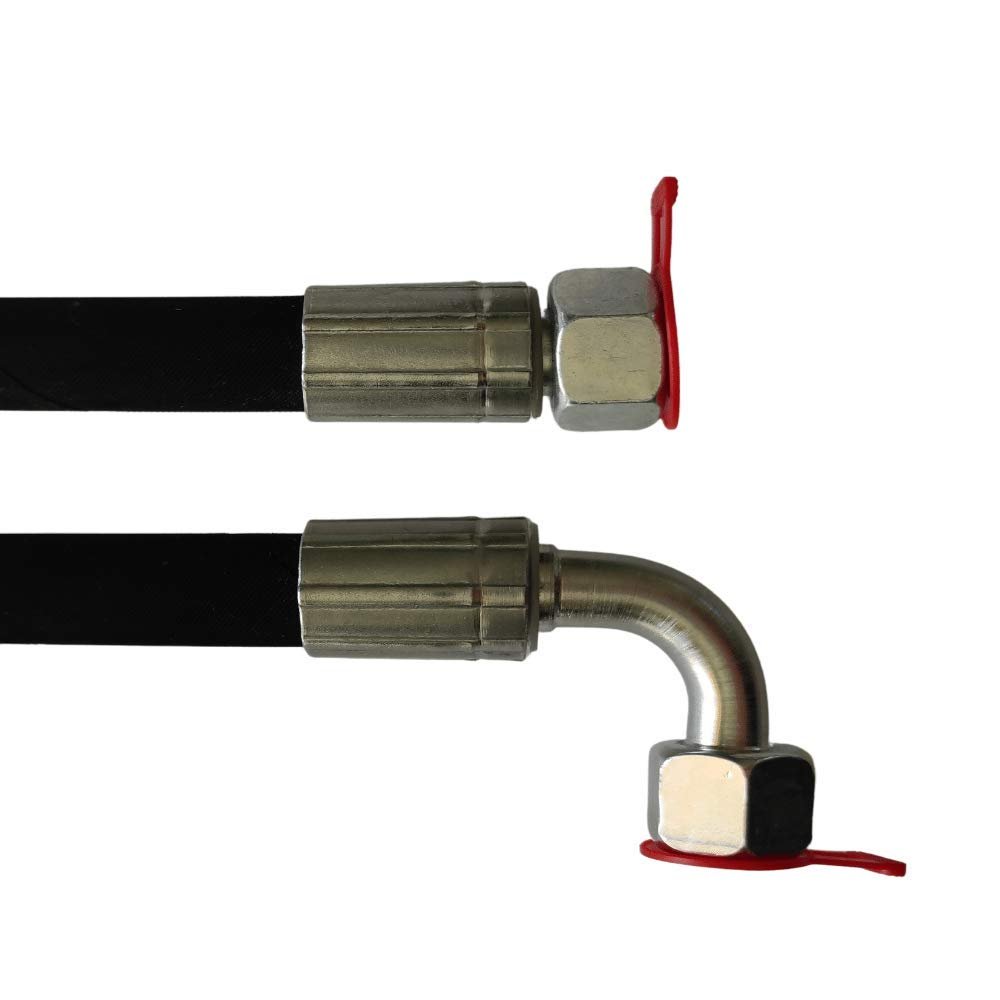

Hydraulic Hose 16S, 3,900 mm, 2SN DN13 | M24 x 1.5 Thread | DKOS–DKOS90 | 275 bar

Description

• Type: 2SN hydraulic hose, 3,900 mm length, DN13, size 16S
• Thread: M24 x 1.5
• Rated pressure: 275 bar
• Standard: DIN EN 853 2SN
• Connection options: straight DKOS, 90 DKOS, 45 DKOS, or CES
• DKOS connections feature a sealing cone with O-ring and 16S union nut
• CES connection features an internal cone with 16S male thread
• Abrasion-resistant synthetic rubber tube, resistant to oil, fuel, and weather
• Reinforcement: 2 high-tensile steel wire braids
• Suitable for mineral-based hydraulic fluids, glycol-water mixtures, water-oil emulsions, heating oil, and diesel
• Temperature range: -40C to +100C (-40F to +212F); briefly up to +120C (257F)
• Custom-made product; excluded from returns, exchanges, and cancellation

Hydraulic hose 2SN, 3,900 mm long, DN13, size 16S, with M24 x 1.5 thread and a rated pressure of 275 bar. Connection options include a straight DKOS, 90 DKOS, 45 DKOS, or CES connection. The hose has an abrasion-resistant synthetic rubber tube with resistance to oil, fuel, and weather, reinforced with two high-tensile steel wire braids. Suitable fluids include mineral-based hydraulic fluids, glycol-water mixtures, lubricants, water-oil emulsions, heating oil, and diesel. Temperature resistance is -40C to +100C (-40F to +212F), briefly up to +120C (257F). As this hose is manufactured to the customer's specified dimensions and requirements, it is a custom-made product and is excluded from returns, exchanges, and cancellation.
