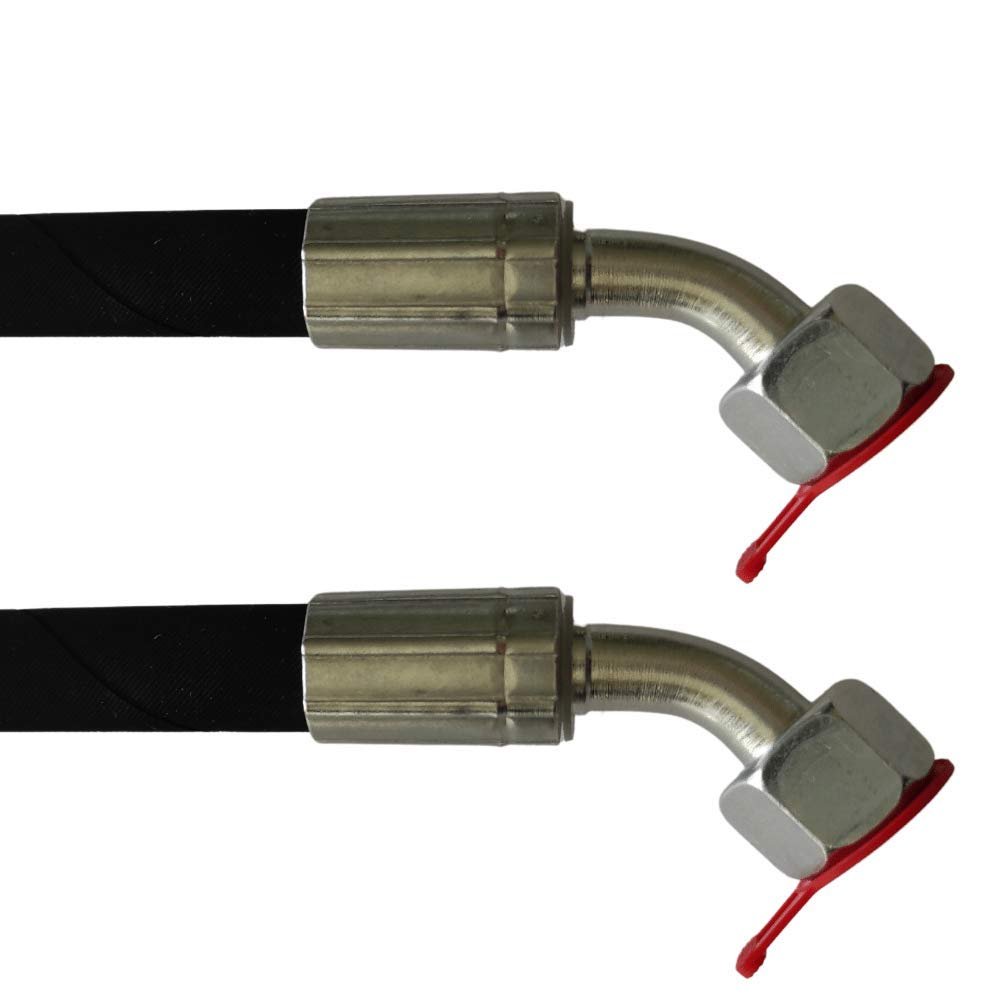

Hydraulic Hose 16S, 3400 mm, 2SN DN13, M24 x 1.5, DKOS45-DKOS45, 275 bar

Description

• 2SN hydraulic hose, 3400 mm long, DN13, size 16S
• DKOS45-DKOS45 connections with M24 x 1.5 thread
• Resistant to mineral-oil-based hydraulic fluids, glycol-water mixtures, water-oil emulsions, heating oil, and diesel
• Connection options: straight DKOS, 90 angled DKOS, 45 angled DKOS, or CES
• Sealing cone with O-ring and union nut, size 16S (M24 x 1.5); CES with female cone and external thread
• Tube: abrasion-resistant synthetic rubber, resistant to oil, fuel, and weathering
• Reinforcement: two high-tensile steel wire braids
• Recommended fluids: petroleum-based hydraulic fluids, glycol-water-based fluids, and lubricants
• Temperature range: -40C to +100C; briefly up to +120C
• Standard: DIN EN 853 2SN; nominal pressure: 275 bar
• Custom-made hydraulic hoses are excluded from returns, exchanges, and cancellation

Hydraulic hose, 3400 mm long, with DKOS45-DKOS45 connections, M24 x 1.5 thread, 2SN hose type, DN13 nominal diameter, and a nominal pressure of 275 bar. The hose is resistant to mineral-oil-based hydraulic fluids, glycol-water mixtures, water-oil emulsions, heating oil, and diesel. Available connection options include straight DKOS, 90 angled DKOS, 45 angled DKOS, or CES. The hose has an abrasion-resistant synthetic rubber tube, two high-tensile steel wire braids, and a temperature resistance of -40C to +100C, briefly up to +120C. It complies with DIN EN 853 2SN. As these hydraulic hoses are manufactured according to customer-specific dimensions and requirements, they are excluded from returns, exchanges, and cancellation.
