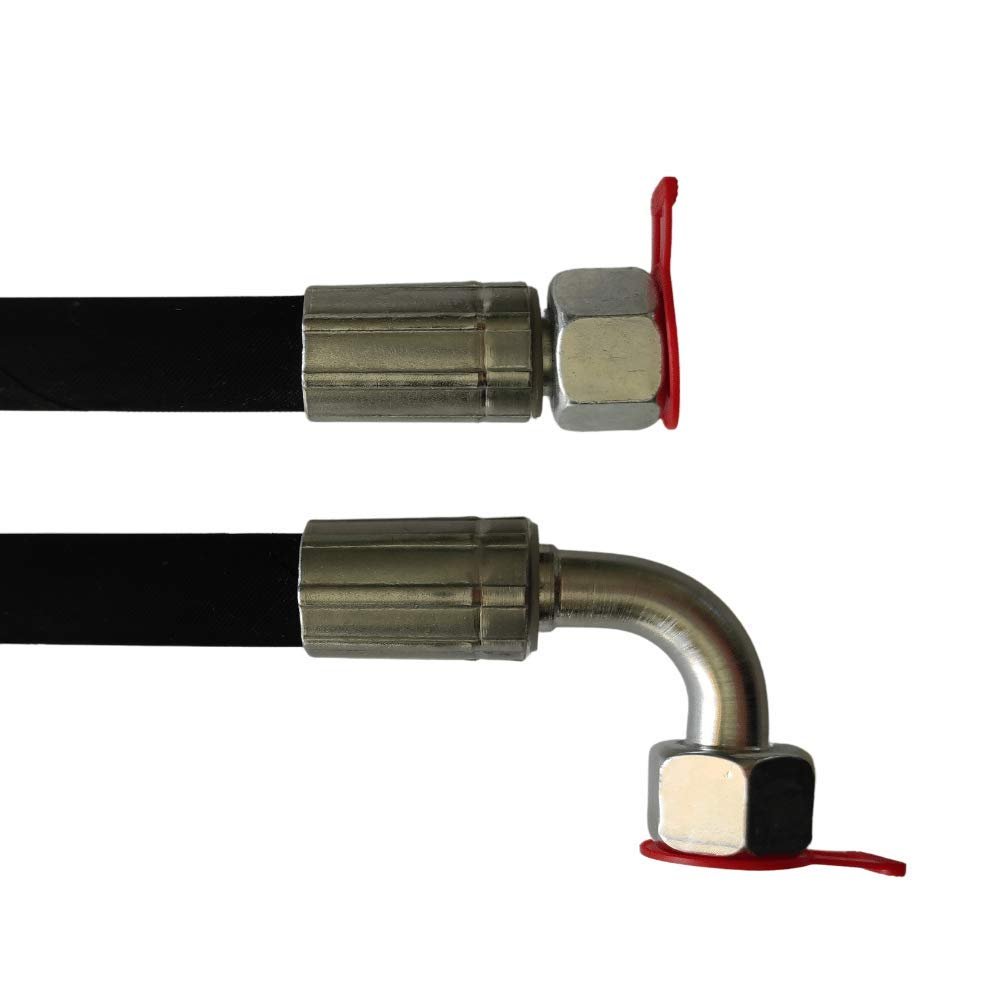

Hydraulic Hose 16S 1100 mm 2SN DN13, M24 x 1.5, DKOS/DKOS90, 275 bar

Description

• Length: 1100 mm; nominal diameter: DN13; size: 16S
• Hose type: 2SN; standard: DIN EN 853 2SN
• Thread: M24 x 1.5; nominal pressure: 275 bar
• Connection options: straight DKOS, 90 DKOS, 45 DKOS, or CES
• Connections feature a sealing cone with O-ring and union nut, or CES internal cone with external thread
• Resistant to mineral-oil-based hydraulic fluids, glycol-water mixtures, water-oil emulsions, heating oil, and diesel
• Tube: abrasion-resistant synthetic rubber, resistant to oil, fuel, and weathering
• Reinforcement: two high-tensile steel wire braids
• Recommended fluids: petroleum-based hydraulic fluids, glycol-water-based fluids, and lubricants
• Temperature resistance: -40C to +100C; briefly up to +120C
• Custom-made product: returns, exchanges, and cancellation are excluded

Hydraulic hose, 2SN, 1100 mm, DN13 (16S), with M24 x 1.5 thread and a nominal pressure of 275 bar. Available connection options include straight DKOS, 90 DKOS, 45 DKOS, or CES. DKOS connections use a sealing cone with O-ring and 16S union nut (M24 x 1.5); CES uses an internal cone with 16S external thread (M24 x 1.5). The hose has an abrasion-resistant synthetic rubber tube that is resistant to oil, fuel, and weathering, reinforced with two high-tensile steel wire braids. Temperature resistance is -40C to +100C, briefly up to +120C. Because the hydraulic hoses are manufactured according to the customer's specified dimensions and requirements, they are custom-made products and are excluded from returns, exchanges, and cancellation.
