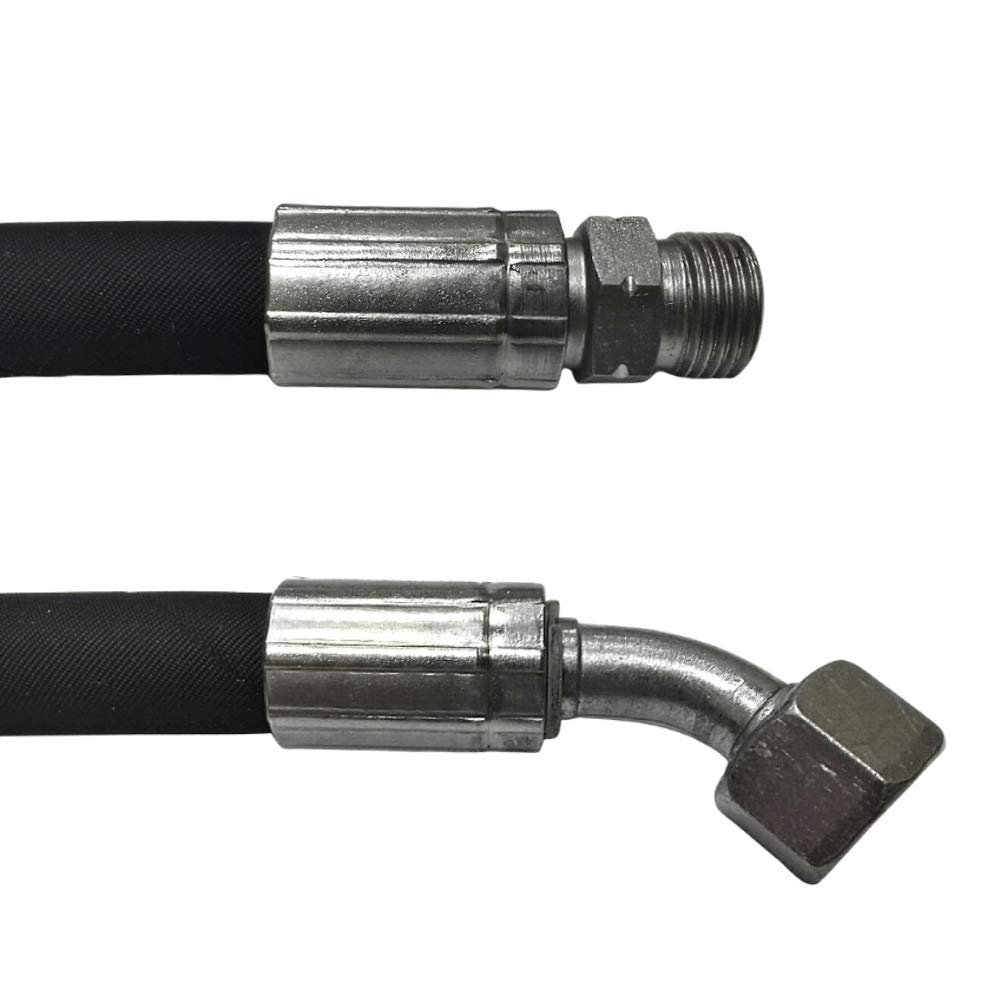

Hydraulic Hose 15L, 5200 mm, 2SN DN12, M22x1.5, CEL-DKOL45, 275 bar

Description

• Length: 5200 mm; hose type: 2SN; nominal size: DN12 (13); nominal pressure: 275 bar
• Fittings: CEL-DKOL45; thread: M22x1.5
• Suitable for mineral-based hydraulic fluids, glycol-water mixtures, water-oil emulsions, heating oil, and diesel
• Optional connections: straight DKOL, 90 bent DKOL, 45 bent DKOL, or CEL
• DKOL fittings: sealing cone with O-ring and 15L union nut; wrench size 27 mm
• CEL fitting: internal cone with 15L male thread (M22x1.5); wrench size 22 mm
• Tube: abrasion-resistant synthetic rubber, resistant to oil, fuel, and weather
• Reinforcement: two high-tensile steel wire braids
• Temperature range: -40C to +100C; briefly up to +120C
• Standard: DIN EN 853 2SN
• Custom-made product; excluded from returns, exchanges, and cancellation

Configure your 5200 mm hydraulic hose with 2SN construction, DN12 (13), 15L connection size, CEL-DKOL45 fittings, M22x1.5 thread, and a nominal pressure of 275 bar. The hose is suitable for mineral-based hydraulic fluids, glycol-water mixtures, water-oil emulsions, heating oil, and diesel. Connection options include straight DKOL, 90 bent DKOL, 45 bent DKOL, or CEL fittings. The hose has an abrasion-resistant synthetic rubber tube that is resistant to oil, fuel, and weather, reinforced with two high-tensile steel wire braids. Recommended fluids include petroleum-based hydraulic fluids, glycol-water-based fluids, and lubricants. Temperature resistance is -40C to +100C, briefly up to +120C. Because the hydraulic hose is manufactured according to your specified measurements and requirements, it is a custom-made product and is excluded from returns, exchanges, and cancellation.
