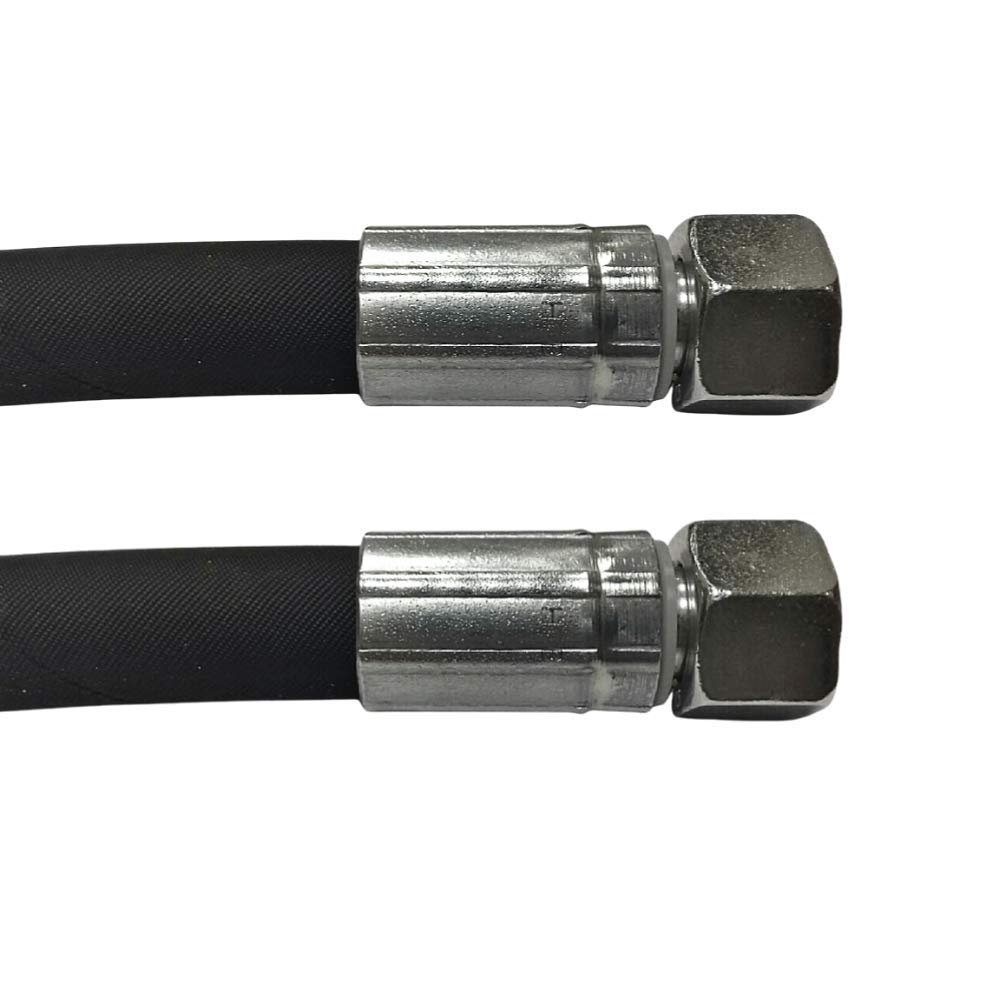

Hydraulic Hose 15L, 2800 mm, 1SN DN12, M22 x 1.5, DKOL-DKOL, 160 bar

Description

• Hydraulic hose 1SN, 2800 mm, DN12 (13), 15L; DKOL-DKOL connections
• Thread: M22 x 1.5
• Resistant to mineral-based hydraulic fluids, glycol-water mixtures, water-oil emulsions, heating oil, and diesel
• Connection options: straight DKOL; 90 angled DKOL; 45 angled DKOL; or CEL
• DKOL connections feature a sealing cone with O-ring and 15L union nut; wrench size 27 mm
• CEL connection features an internal cone with 15L external thread (M22 x 1.5); wrench size 22 mm
• Tube: abrasion-resistant synthetic rubber, resistant to oil, fuel, and weather
• Reinforcement: one high-tensile steel wire braid
• Recommended fluids: petroleum-based hydraulic fluids, glycol-water-based fluids, and lubricants
• Temperature resistance: -40C to +100C (-40F to +212F), briefly up to +120C (257F)
• Standard: DIN EN 853 1SN
• Nominal pressure: 160 bar
• Custom-made product; hydraulic hoses are excluded from returns, exchanges, and cancellation

Configure your hydraulic hose with a length of 2800 mm, 1SN hose type, DN12 (13) nominal size, 15L fittings, M22 x 1.5 thread, and DKOL-DKOL connections. The hose has a nominal pressure of 160 bar and complies with DIN EN 853 1SN. It is suitable for mineral-based hydraulic fluids, glycol-water mixtures, water-oil emulsions, heating oil, diesel, and the other recommended fluids specified above. Connection options include straight DKOL, 90 angled DKOL, 45 angled DKOL, or CEL. Because these hydraulic hoses are manufactured to the customer's specified dimensions and requirements, they are custom-made products and are excluded from returns, exchanges, and cancellation.
