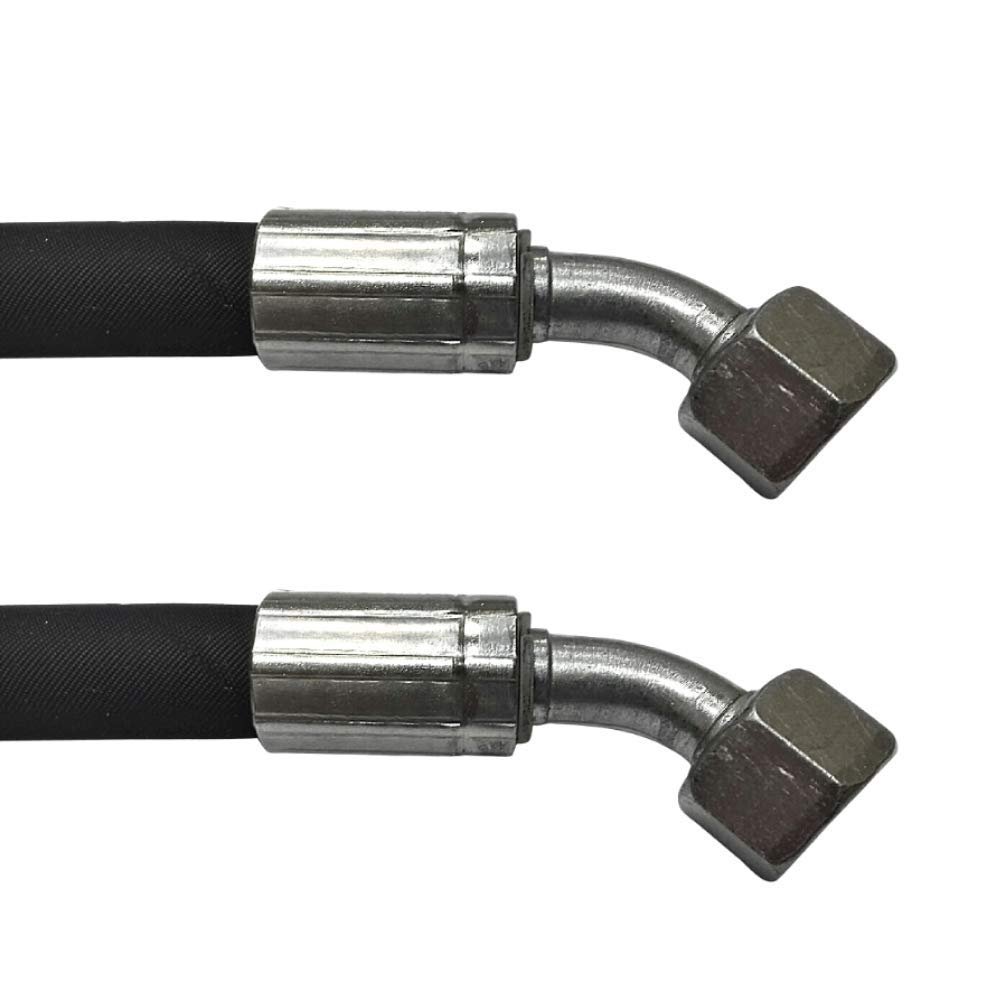

Hydraulic Hose 15L, 1100 mm, 1SN DN12 | M22 x 1.5 | DKOL45–DKOL45 | 160 bar

Description

• Length: 1100 mm; nominal size: DN12 (13), 15L
• Connections: DKOL45DKOL45; thread: M22 x 1.5
• Suitable for mineral-based hydraulic fluids, glycol-water mixtures, water-oil emulsions, heating oil, and diesel
• Connection options: straight DKOL, 90 DKOL, 45 DKOL, or CEL
• Construction: abrasion-, oil-, fuel-, and weather-resistant synthetic rubber tube with one high-tensile steel wire braid
• Temperature range: -40C to +100C (-40F to +212F), briefly up to +120C (257F)
• Standard: DIN EN 853 1SN; nominal pressure: 160 bar
• Custom-made product; excluded from returns, exchanges, and cancellation

Product description: Length: 1100 mm Connection: DKOL45DKOL45 Thread: M22 x 1.5 Hose type: 1SN Nominal pressure: 160 bar Standard: DIN EN 853 1SN The 1SN hydraulic hose has a 1100 mm length, DN12 (13) nominal size, 15L fitting size, DKOL45DKOL45 connections, and an M22 x 1.5 thread. It is resistant to mineral-based hydraulic fluids, glycol-water mixtures, water-oil emulsions, heating oil, and diesel. Available connection options include a straight DKOL fitting with sealing cone, O-ring, and 15L union nut (M22 x 1.5), requiring a 27 mm wrench; a 90 angled DKOL fitting with the same specifications; a 45 angled DKOL fitting with sealing cone, O-ring, and 15L union nut (M12 x 1.5), requiring a 27 mm wrench; or a CEL fitting with internal cone and 15L male thread (M22 x 1.5), requiring a 22 mm wrench. Technical specifications: The tube is made of abrasion-resistant synthetic rubber and is resistant to oil, fuel, and weathering. Reinforcement consists of one high-tensile steel wire braid. Recommended fluids include petroleum-based hydraulic fluids, glycol-water-based fluids, and lubricants. Temperature resistance is -40C to +100C (-40F to +212F), briefly up to +120C (257F). Because the hydraulic hoses are manufactured according to the customer's specified dimensions and requirements, they are custom-made products and are excluded from returns, exchanges, and cancellation.
