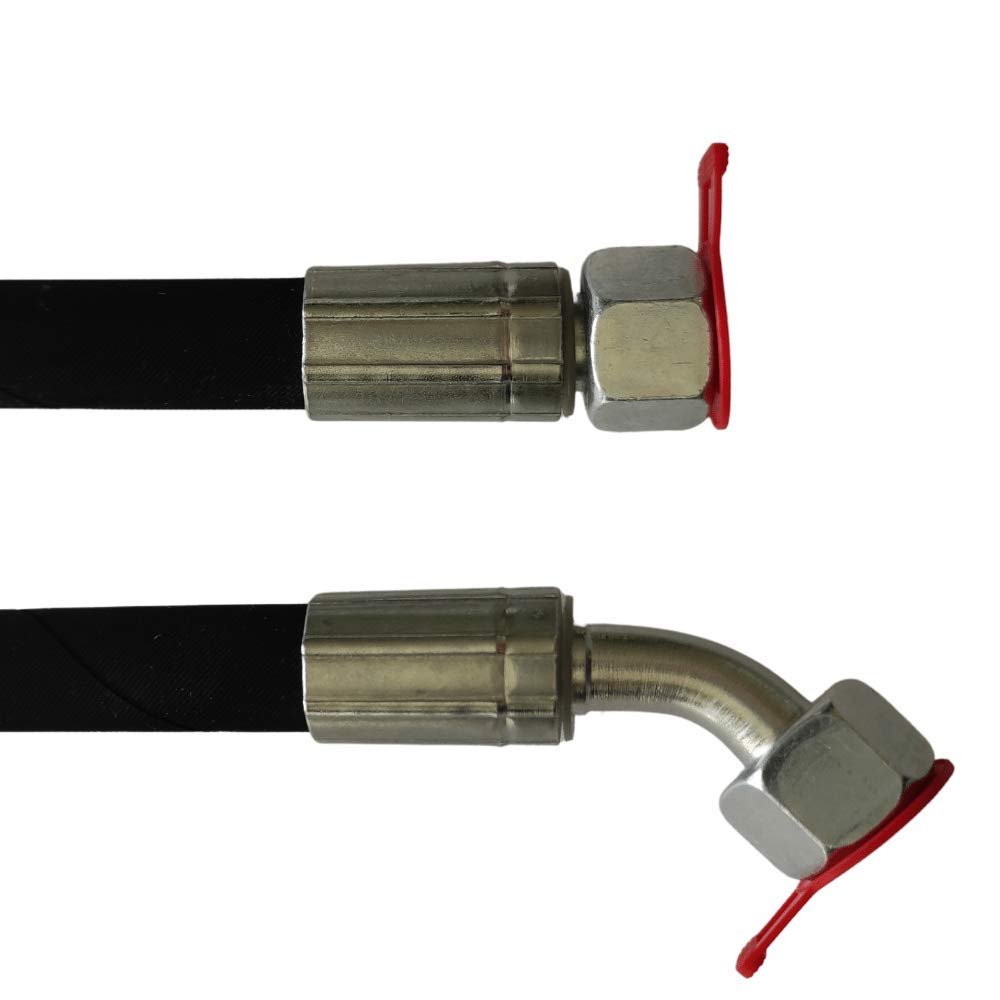

Hydraulic Hose 1500 mm 1SN DN13 | G 1/2" Thread | DKR–DKR45 | 160 bar Rated Pressure

Description

• 1SN hydraulic hose, 1500 mm, DN13, DKRDKR45
• G 1/2" thread
• Resistant to mineral-based hydraulic fluids, glycol-water mixtures, water-oil emulsions, heating oil, and diesel
• Connection options: straight DKR, 90 angled DKR, 45 angled DKR, or AGR
• DKR fittings: sealing cone with O-ring and union nut, G 1/2"
• AGR fitting: internal cone with external thread, G 1/2"
• Inner tube: abrasion-resistant synthetic rubber, resistant to oil, fuel, and weathering
• Reinforcement: 1 high-tensile steel wire braid
• Recommended fluids: petroleum-based hydraulic fluid, glycol-water-based fluids, and lubricants
• Temperature resistance: -40C to +100C (-40F to +212F); temporarily up to +120C (257F)
• Standard: DIN EN 853
• Rated pressure: 160 bar
• Hose type: 1SN
• Custom-made product: excluded from returns, exchanges, and cancellation rights

Hydraulic hose, 1500 mm long, type 1SN, DN13, with G 1/2" thread and DKRDKR45 connection options. The hose is resistant to mineral-based hydraulic fluids, glycol-water mixtures, water-oil emulsions, heating oil, and diesel. Available connection options include a straight DKR fitting, a 90 angled DKR fitting, a 45 angled DKR fitting, or an AGR fitting. DKR fittings feature a sealing cone with O-ring and union nut; the AGR fitting features an internal cone with an external thread. The hose has an abrasion-resistant synthetic rubber inner tube and one high-tensile steel wire braid. Temperature resistance ranges from -40C to +100C (-40F to +212F), temporarily up to +120C (257F). Manufactured according to DIN EN 853, with a rated pressure of 160 bar. Since the hydraulic hoses are made to customer-specified dimensions and requirements, they are custom-made products and are excluded from returns, exchanges, and cancellation rights.
