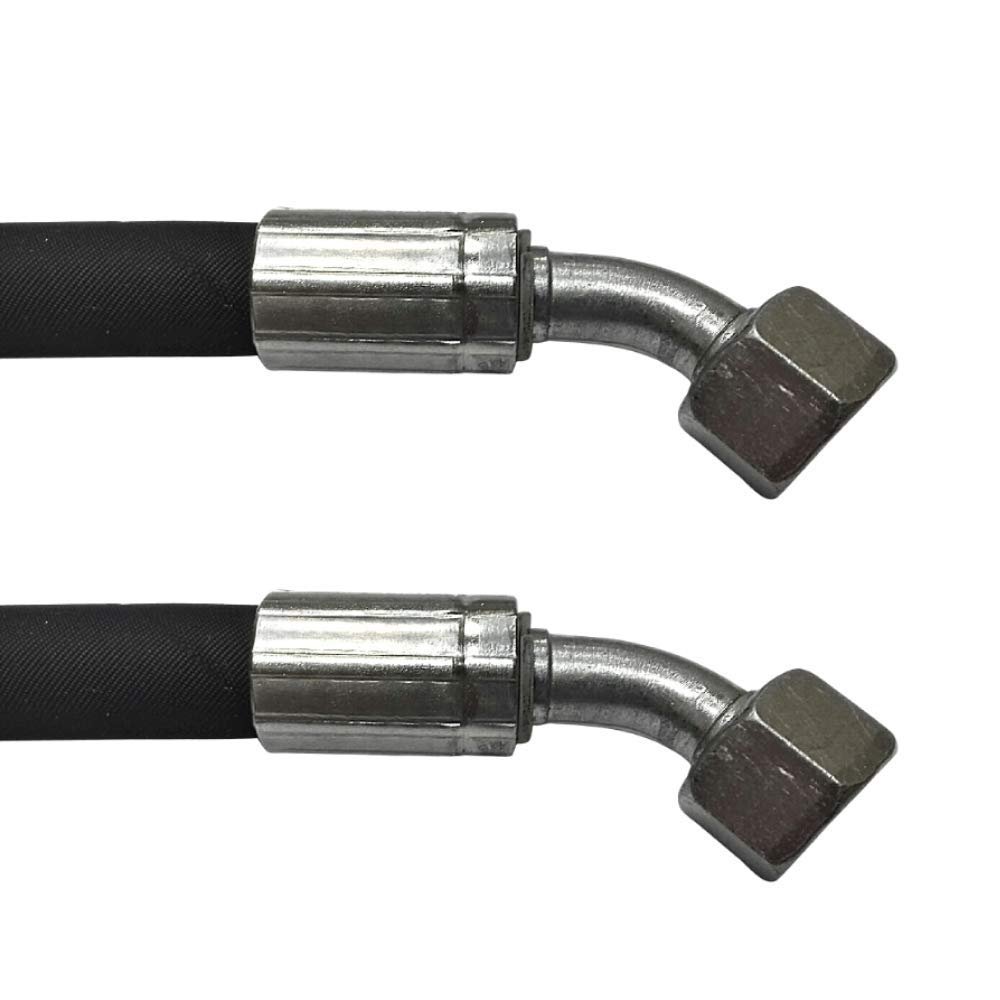

Hydraulic Hose 12L, 4,800 mm, 2SN DN10, M18x1.5, DKOL45-DKOL45, 330 bar

Description

• Length: 4,800 mm; nominal size: DN10 (12L)
• Hose type: 2SN; standard: DIN EN 853 2SN
• Connections: DKOL45-DKOL45 with M18x1.5 threads
• Nominal pressure: 330 bar
• Resistant to mineral-oil-based hydraulic fluids, glycol-water mixtures, water-oil emulsions, heating oil, and diesel
• Connection options: straight DKOL, 90 DKOL, 45 DKOL, or CEL
• DKOL connections include sealing cone with O-ring and 12L union nut; 22 mm wrench size
• CEL connection includes internal cone with 12L male thread; 19 mm wrench size
• Tube: abrasion-resistant synthetic rubber, resistant to oil, fuel, and weather
• Reinforcement: two high-tensile steel wire braids
• Temperature range: -40C to +100C; briefly up to +120C

Configure your hydraulic hose to your specifications. This 4,800 mm 2SN hydraulic hose has a DN10 (12L) nominal size, M18x1.5 threads, DKOL45-DKOL45 connections, and a nominal pressure of 330 bar. The hose is suitable for hydraulic fluids based on mineral oil or glycol-water, lubricants, water-oil emulsions, heating oil, and diesel. It features an abrasion-resistant synthetic rubber tube and two high-tensile steel wire braids. Temperature resistance is -40C to +100C, briefly up to +120C. As these hydraulic hoses are custom-made according to your measurements and requirements, they are excluded from returns, exchanges, and cancellation.
