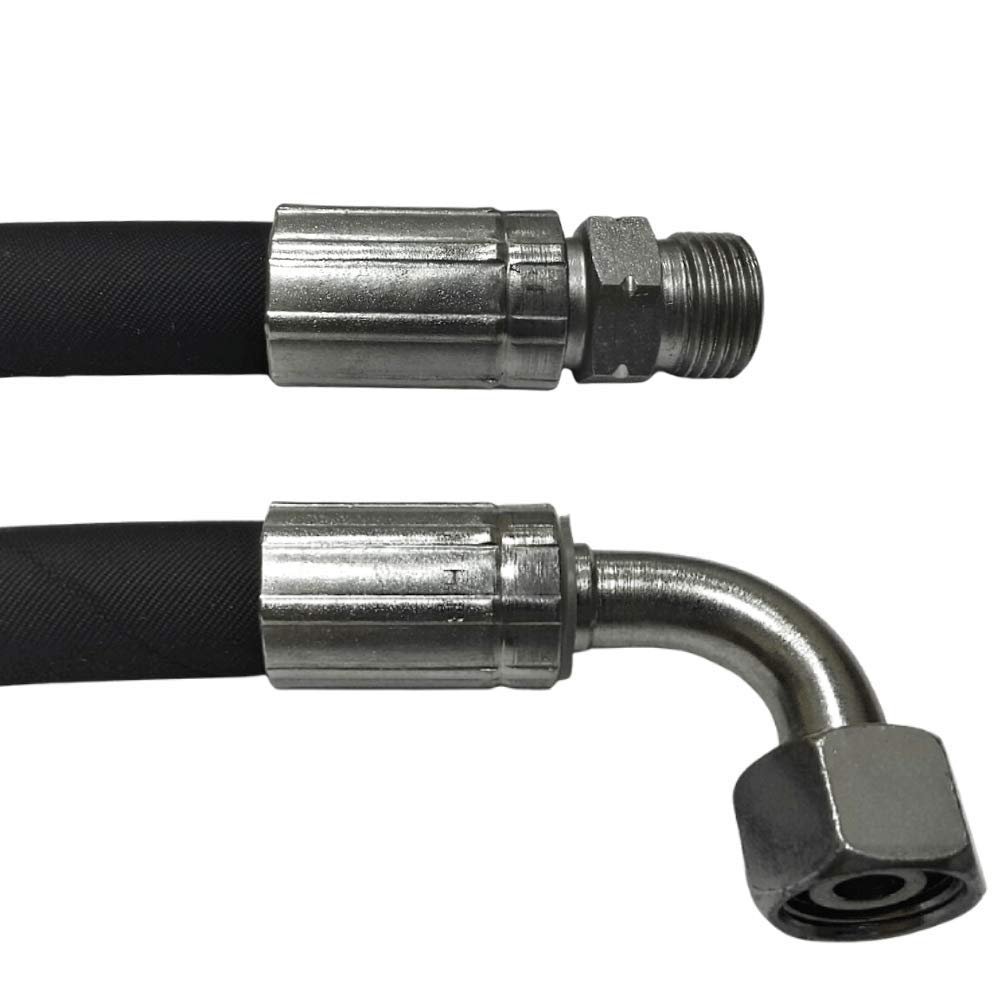

Hydraulic Hose 10L, 9,200 mm, 2SN DN8, M16x1.5, CEL-DKOL90, 350 bar

Description

• 2SN hydraulic hose, 9,200 mm, DN8, size 10L
• Thread: M16x1.5
• Nominal pressure: 350 bar
• Standard: DIN EN 853 2SN
• Resistant to mineral-based hydraulic fluids, glycol-water mixtures, water-oil emulsions, heating oil, and diesel
• Selectable connections: straight DKOL, 90 DKOL, 45 DKOL, or CEL
• DKOL fittings: sealing cone with O-ring and 10L union nut (M16x1.5); 19 mm wrench size
• CEL fitting: internal cone with 10L male thread (M16x1.5); 17 mm wrench size
• Tube: abrasion-resistant synthetic rubber, oil-, fuel-, and weather-resistant
• Reinforcement: two high-tensile steel wire braids
• Recommended fluids: petroleum-based hydraulic fluids, glycol-water-based fluids, and lubricants
• Temperature resistance: -40C to +100C (-40F to +212F); briefly up to +120C (257F)
• Custom-made to customer specifications; not eligible for return, exchange, or cancellation

Hydraulic hose 10L, 9,200 mm, 2SN DN8 with M16x1.5 thread and CEL-DKOL90 connection configuration. The hose complies with DIN EN 853 2SN and has a nominal pressure of 350 bar. Connection options include straight DKOL, 90 DKOL, 45 DKOL, or CEL fittings. DKOL fittings feature a sealing cone with O-ring and a 10L union nut (M16x1.5), while the CEL fitting has an internal cone with a 10L male thread (M16x1.5). The hose has an abrasion-resistant synthetic rubber tube and two high-tensile steel wire braids. It is resistant to mineral-based hydraulic fluids, glycol-water mixtures, water-oil emulsions, heating oil, and diesel. Because the hydraulic hoses are custom-made according to the customer's specifications, they are excluded from return, exchange, or cancellation.
