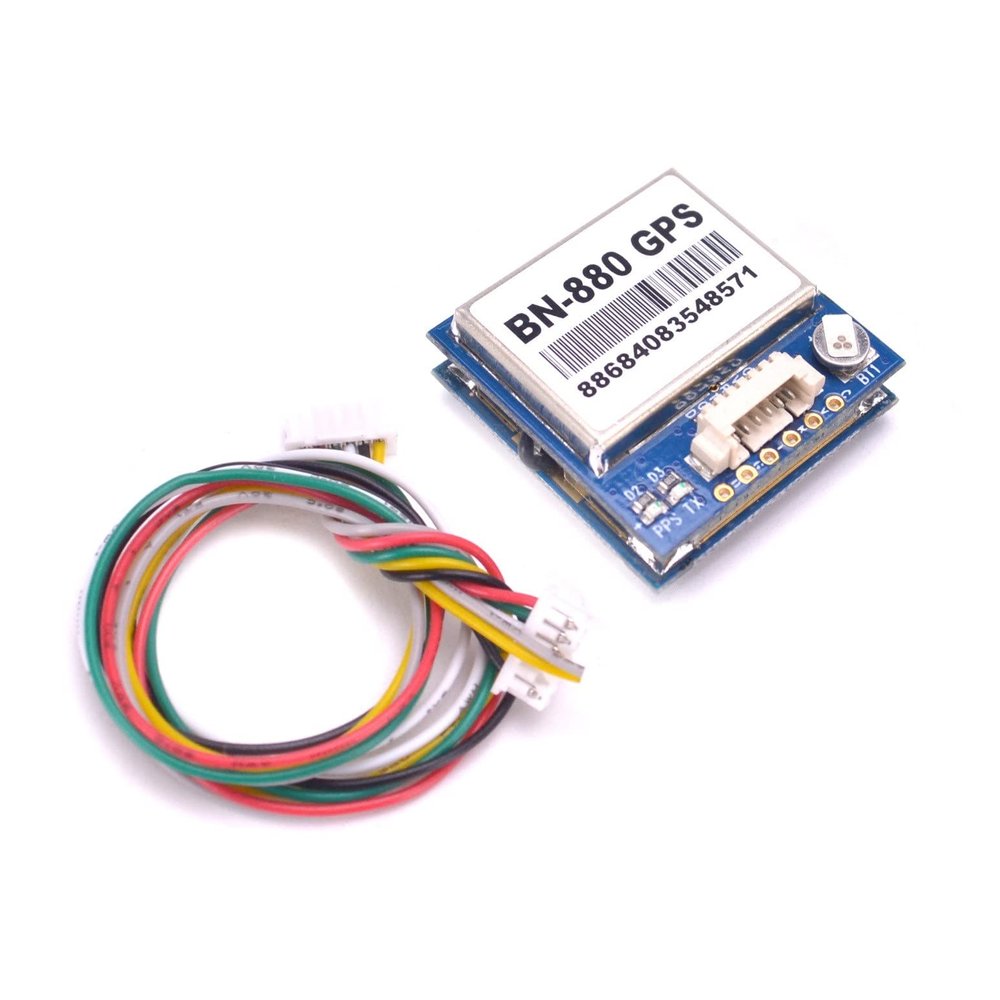

HUTIANSN BN-220/BN-880 Dual GPS Flight Control Module for Mini F3/F4, APM, Pixhawk RC FPV Drones (3PCS BN880 GPS)

Description

• Made of high-quality material with fewer burrs and a good texture; improved wear resistance may extend service life.
• Made with high-quality electronic components for more stable electronic performance.
• Tested and in good condition; 100% functional.
• Long service life and easy to install.
• We specialize in RC cars, boats, aircraft accessories, and more. Purchase with confidence.

For BN-220/BN220 or BN-880/BN880 flight control GPS dual module for Mini F3/F4, APM, Pixhawk RC racing FPV drones, aircraft, and quadcopters. New BN-880/BN880 flight control GPS module with dual-module compass and cable for APM 2.6, APM 2.8, Pixhawk 2.4.7, and Pixhawk 2.4.8. Features and specifications: - GPS module with dual-module compass - Electronic compass IC HMC5883 - 1.25 mm spacing between the 6-pin patch socket - Model: BN-880 - Power supply: 2.86.0 V DC; typical: 3.3 V or 5.0 V - Current consumption: 50 mA at 5 V during acquisition - Reception formats: GPS, GLONASS, BeiDou, QZSS, and SBAS - Reception channels: 72 search channels - Reception sensitivity: tracking -167 dBm; capture -148 dBm - Positioning time: cold start, average 26 s; warm start, average 25 s; hot start, average 3 s - Horizontal positioning accuracy: 2 m in open conditions - Output frequency: 110 Hz; default 1 Hz - Speed accuracy: 0.1 m/s without assistance - Acceleration accuracy: 0.1 m/s without assistance - Dynamic characteristics: maximum altitude 18,000 m; maximum speed 5,153 m/s; maximum acceleration 4G - UART interface: TXDA and RXDA - Supported baud rate: 4,800 bps to 115,200 bps; default listed as 38,400 dps - Operating temperature: -40 to +85 C - Storage temperature: -40 to +85 C - Size: 28 28 10 mm - Weight: 10 g - Module pins: SDA, GND, TX, RX, VCC, and SCL An additional connector for APM is provided. If you need to use it with APM, you can install the connector yourself or contact the seller to have it modified. The original connector is for the Pixhawk flight control board. For the BN-220 3.65.5 V TTL-level GNSS module, GPS/GLONASS dual-GPS module, with built-in flash, for F3/F4/F7 flight controllers. Model: BN-220 GNSS module. Item description: Electrical specifications.
