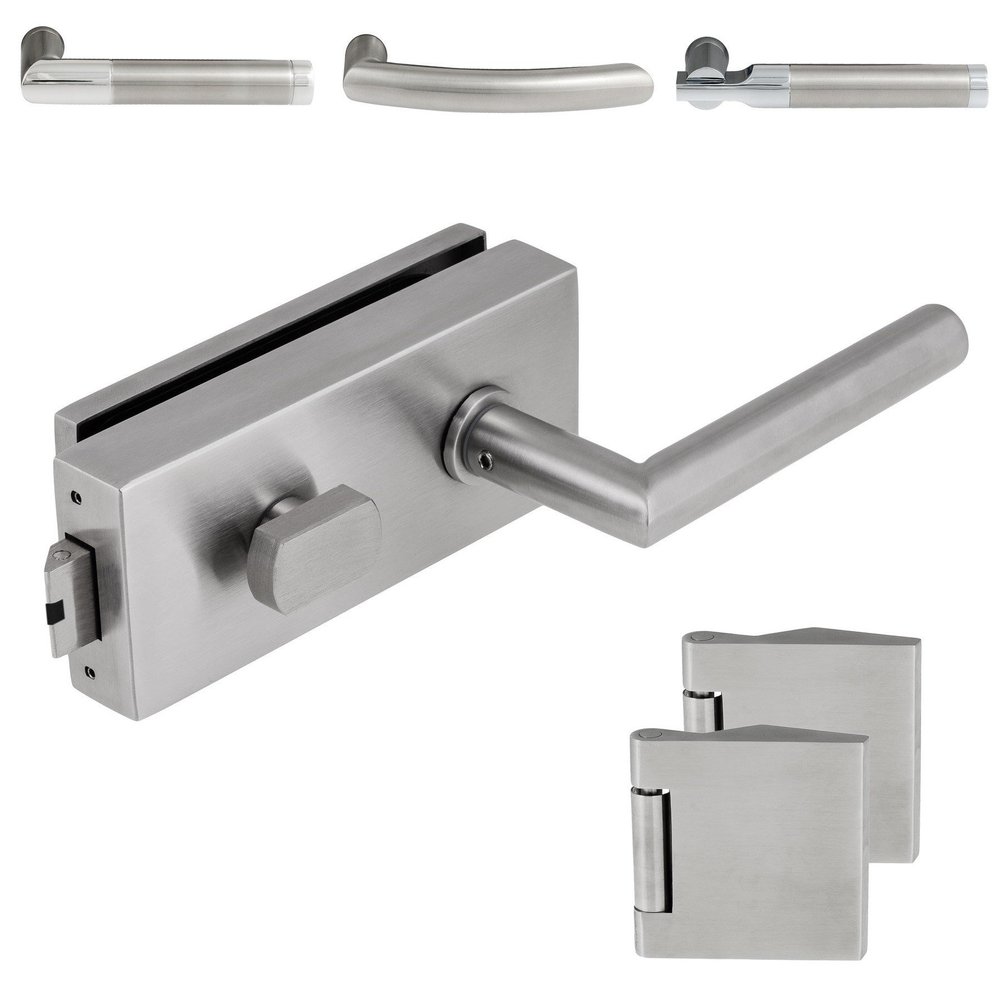

Hope Q WC Glass Door Lock Set with Integrated Thumbturn, 3-Piece Hinges, Satin Stainless Steel

Description

• WC privacy function with integrated thumbturn cylinder
• 3-piece hinges with vertical office drilling
• Q series glass door lock in brushed satin stainless steel
• For 8 mm glass; suitable for DIN left- and right-hand doors
• Rear lever hole; adapter rings for 16 mm and 18 mm handle sleeves
• Clamp follower, quiet latch, strong compression spring, quiet lock mechanism

Solid stainless steel glass door lock with a metal internal mechanism. Except for the plastic insert in the latch, which ensures quieter closing, the internal lock is free of plastic. The precisely fitted built-in clamp follower spring leaves the lock with virtually no lever handle play. Instead of the susceptible tension spring, this lock uses a considerably more effective compression spring. After the lever is operated, the strong compression spring returns to its original position, relieving the spring from tension and reducing the risk of spring breakage. Both lock covers have an internal retaining feature at the end so they do not protrude from the glass door leaf. The included adapter rings for 16 mm and 18 mm handle sleeves allow other lever handle pairs to be combined with the glass door lock. This high-quality glass door hardware set fits standard glass doors with studio lock drilling and office hinge drilling. This means two glass holes next to each other for the lock and two glass holes one above the other for the hinges; see the drilling diagram. Technical details: - For glass thicknesses of 8 mm; 10 mm available on request - Rear lever hole; adapter rings for 16 mm and 18 mm handle sleeves - Spring clamp follower, quiet latch, compression spring - Load capacity per hinge pair: 55 kg - For door frames with a 24 mm rebate depth - For hinge center sections 48.5 mm high - Suitable for DIN left- and right-hand doors Included: - Q WC glass door lock with integrated thumbturn - 1 pair of Square Min lever handles - 1 pair of square office hinges - Adapter rings for 16 mm and 18 mm handle sleeves - 2 decorative sleeves - German installation instructions - Mounting hardware Frame parts are not included.
