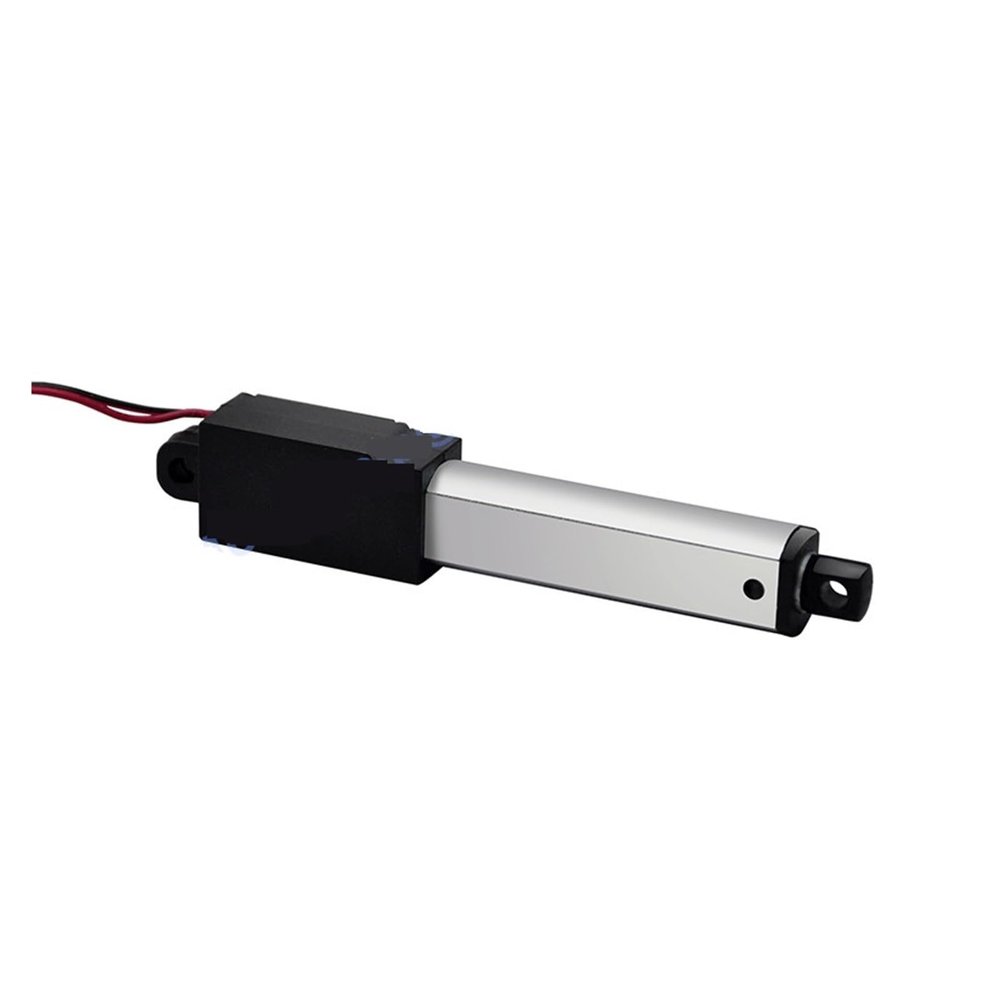

High-Speed Micro Linear Actuator, 12V, 30 mm Stroke, 32N, Waterproof

Description

• Available in 6V, 12V, and 24V DC
• Stroke options: 10, 17.5, 21, 25, 30, 50, 75, 100, or 150 mm
• Maximum load: 188N (18 kg / 44 lb)
• Maximum speed: 150 mm per second
• Operating temperature: -26 to +65C
• Aluminum alloy inner tube
• Built-in limit switches
• 25% duty cycle
• Black
• Includes one pair of mounting brackets

Mini linear actuator. Although smaller in size, it is well suited to projects where space or weight is limited. Linear actuator specifications: 1. Type: Linear actuator 2. Input: 6V, 12V, or 24V DC 3. Maximum load: 188N = 18 kg = 44 lb 4. Maximum speed: 150 mm per second 5. Limit switch: Included 6. Duty cycle: 25% 7. Inner tube material: Aluminum alloy 8. Maximum stroke: 150 mm 9. Lmin and Lmax: Normally, Lmin = stroke + 54.5 mm 10. Color: Black 11. Operating temperature: -26 to +65C 12. Includes one pair of mounting brackets Standard dimensions: 1. L1 = 100% fully closed length. Lmin is the length when the linear actuator is fully closed. At this point, it contacts the end limit switch and stops automatically. 2. Stroke refers to the actuator's movement length. 3. L2 = 100% fully open length. Lmax is the length when the linear actuator is fully open. At this point, it contacts the head limit switch and stops automatically. 10 mm stroke: L1 = 64.5 mm, L2 = 74.5 mm 17.5 mm stroke: L1 = 72 mm, L2 = 89.5 mm 21 mm stroke: L1 = 75.5 mm, L2 = 96.5 mm 25 mm stroke: L1 = 79.5 mm, L2 = 104.5 mm 30 mm stroke: L1 = 84.5 mm, L2 = 114.5 mm 50 mm stroke: L1 = 104.5 mm, L2 = 154.5 mm 75 mm stroke: L1 = 129.5 mm, L2 = 204.5 mm 100 mm stroke: L1 = 154.5 mm, L2 = 254.5 mm 150 mm stroke: L1 = 204.5 mm, L2 = 354.5 mm 12V 50 mm motor linear actuator, 24V DC motor linear actuator, 12V DC micro linear actuator, micro actuator motor.
