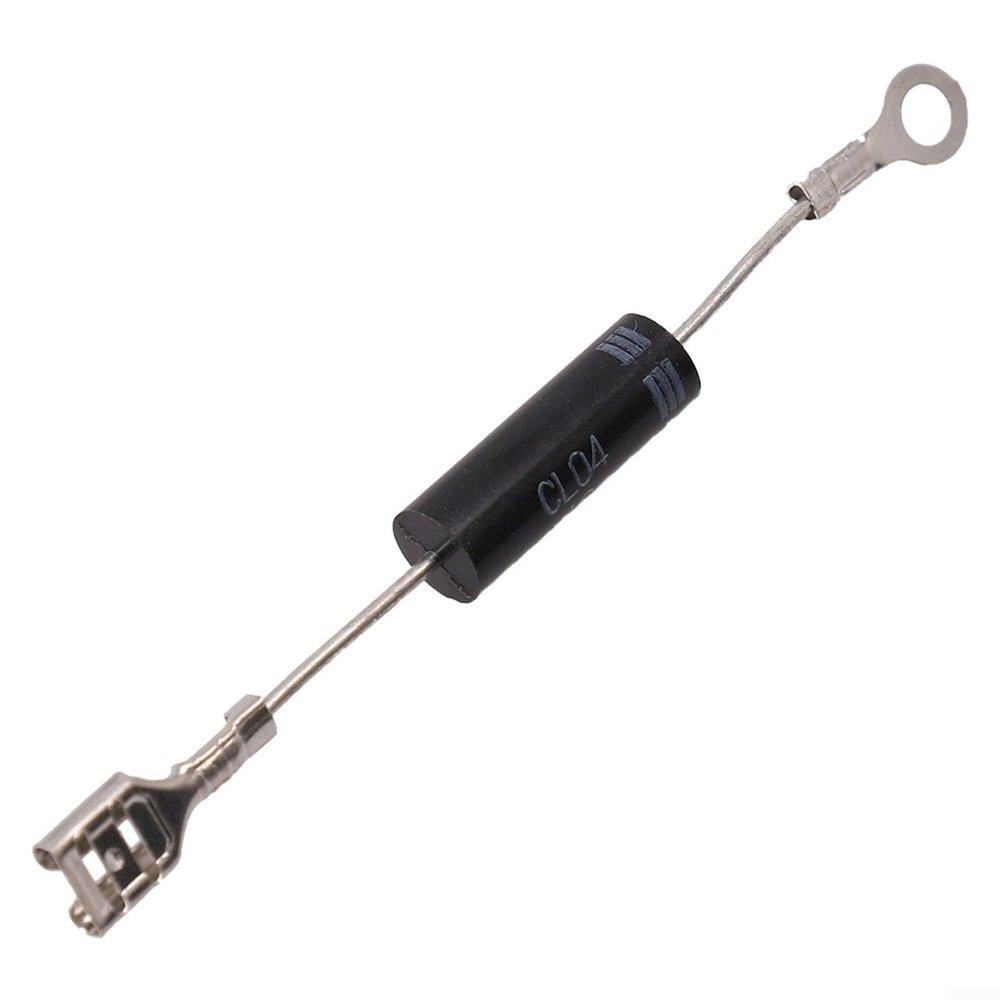

High Voltage Microwave Diode CL04-12

Description

• Includes: 1 CL04-12 microwave diode (high voltage diode) for use as a replacement component in magnetron circuits.
• UNIDIRECTIONAL PN JUNCTION: Made from P-type and N-type semiconductors to form a stable unidirectional conduction path, reducing back current and protecting high voltage sections in household microwaves.
• Performance specifications: Forward current (IF) 350 mA, operating temperature up to 105C, low forward voltage drop, and strong overload capability for reliable operation under load.
• Dimensions: Body length 22 mm, total length 89 mm, opening 4.2 mm, terminal width 6.3 mm; check these dimensions before purchasing with your oven.
• Installation and safety: Pre-tin both ends with solder for secure connections; always disconnect power and discharge the microwave capacitor before maintenance; suitable for technicians and experienced DIYers.

The CL04-12 high voltage microwave diode is designed for use as a replacement component in magnetron circuits. It features a unidirectional PN junction for stable operation, low forward voltage drop, and high overload capability. Ensure proper installation and safety precautions are followed.
