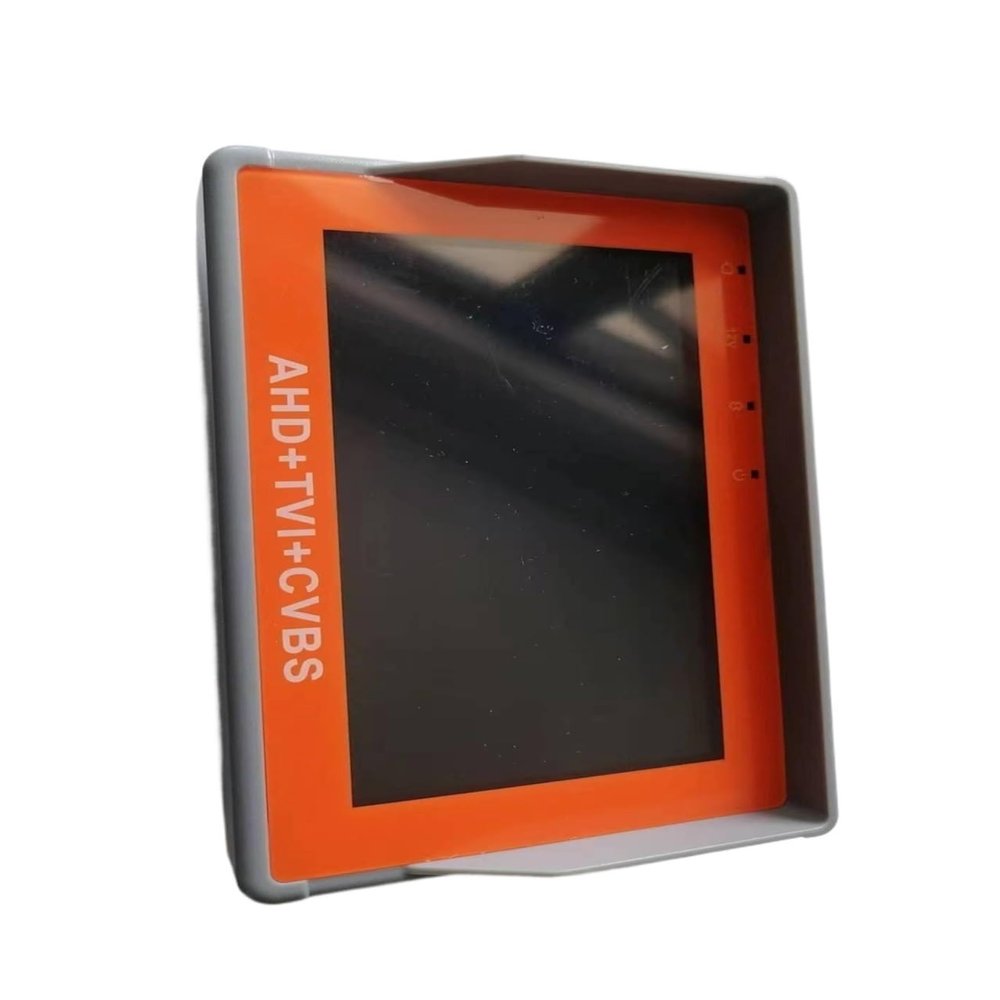

HEALBYBLE CCTV Camera Tester Monitor IV8W, RS485 PTZ Control, VGA Input, UTP Cable Tester, 8MP AHD/TVI/CVI/CVBS

Description

• Video monitor tester with integrated Pelco-D/P PTZ control protocols and RS485 interface for up/down/left/right PTZ control, camera zoom, and iris aperture adjustment.
• Provides a 12V DC power output at 1A for cameras, useful for demonstrations and testing when a power supply is unavailable.
• 5.0-inch 800 (RGB) 480 wide-viewing-angle display for intuitive viewing of camera image quality.
• Supports a multiformat video-out port image generator that sends various standard color patterns, including PAL and NTSC.
• Supports 1-channel TVI, AHD, and CVI camera inputs via BNC, including resolutions up to 8MP, plus UTP network cable testing.

Test the input of pickup devices by connecting the tester and the pickup device with a cable. Improved network cable testing is available through the UTP CABLE TEST port on the tester. The 1-channel TVI input uses a BNC interface and supports 720P25/30/50/60, 1080P, 3MP/4MP, 5MP25/30, and 8MP. The 1-channel AHD input uses a BNC interface and supports 720P25/30/50/60, 1080P, 3MP/4MP, 5MP25/30, and 8MP; when an AHD signal is connected, the tester displays the AHD camera image. The 1-channel CVI input uses a BNC interface and supports 720P25/30/50/60, 1080P25/30, 3MP, 4MP12.5/20, 5MP, and 8MP CVI camera input.
