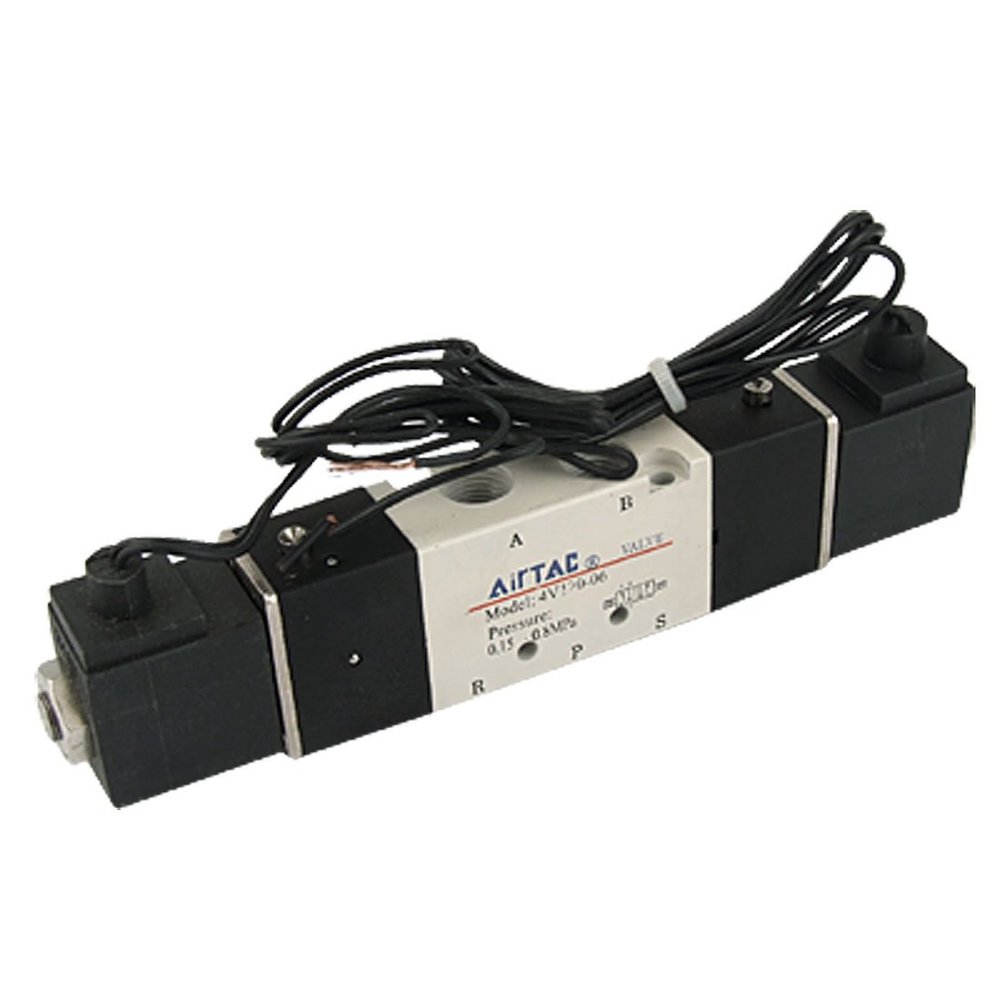

HDPHCRIUN DC 24V 2-Position 5-Way Air Control Solenoid Valve 4V120-06

Description

• Product name: Pneumatic solenoid valve
• Model: 4V120-06
• Working medium: Air filtered to 40 microns
• Movement pattern: Internally guided type
• Type: 2 positions, 5 ways
• Material: Resin, plastic
• Operating voltage/power: DC 24V, 2.5W
• Temperature rise: 35C
• Operating pressure: 1.58 kgf/cm
• Effective area: 12 mm
• Port connections: Air inlet, air outlet, and exhaust: PT 1/8
• Air inlet/outlet diameter: 0.87 cm / 0.34 in
• Cable length: 42 cm
• Wiring: Direct cable or plug
• Overall size (approx.): 14.7 3.8 1.8 cm (L W D)
• Color: White, black
• Weight: 160 g
• Package includes: 1 pneumatic solenoid valve

DC 24V 2-position 5-way air control solenoid valve, model 4V120-06. Solenoid valves control the corresponding airflow and direction for effective performance. They have a long service life and are suitable for electrically powered pneumatic control applications. Two-coil, 2-position solenoid valve.
