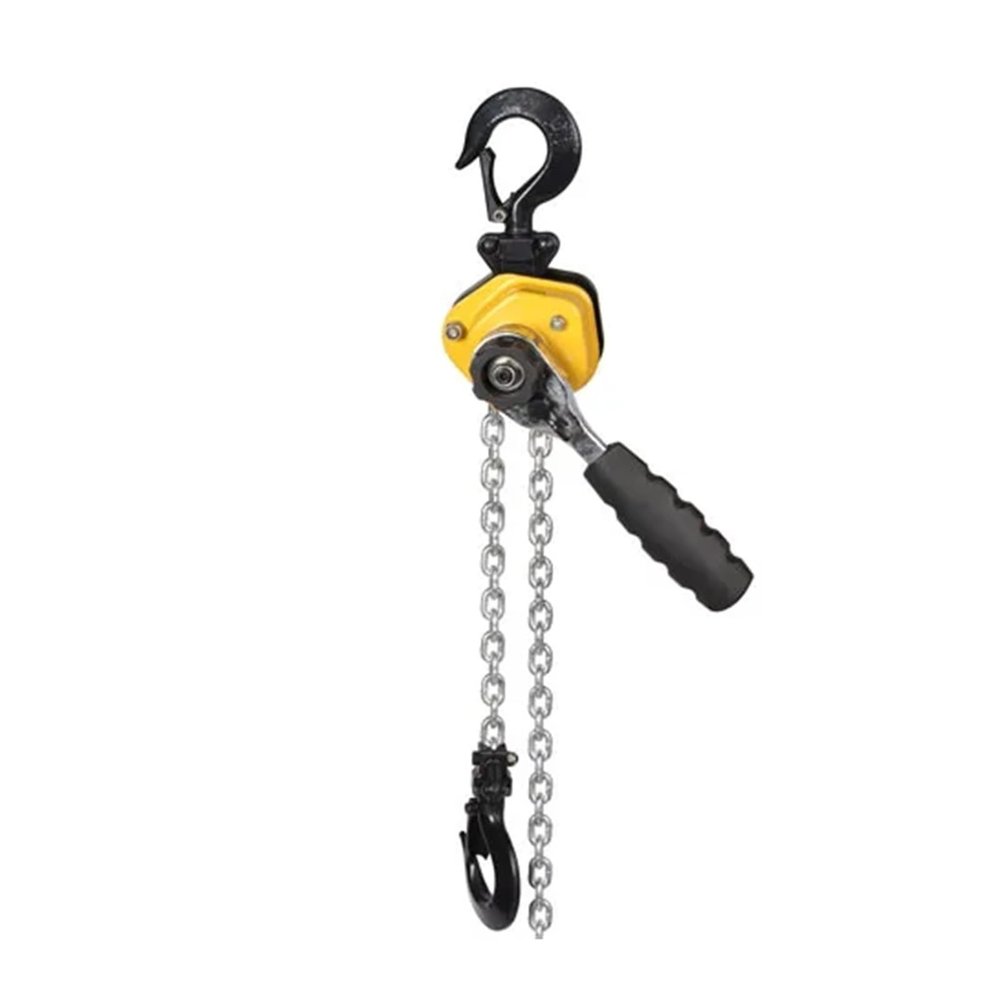

Hand-Operated Lever Chain Hoist for Boats, Trucks and Trailers, 1.5 t, 1.5 m

Description

• Fully enclosed AR hoist
• Suitable for all weather conditions
• Lightweight and robust construction
• High-quality premium-alloy load chain
• Lifts maximum loads with minimal effort

HSH-DC Series lifting hoist. Features: The lower hook is fitted with a complete thrust ring. The lifting wheel is made entirely from a single material. Requires minimal headroom and is highly versatile. The double-pawl automatic brake is well protected. The baked enamel paint finish is highly resistant to impact and abrasion. 2012-style redesigned chain hoist with a lighter, more modern-looking housing. Use: Because the HSH-DC is small and lightweight, it is suitable for work at great heights and in very confined work areas. Specifications: Models: HSH-DC 0.25 t, 0.5 t, 0.75 t, 1.5 t, 2.5 t, 5 t. Capacity (t): 0.25, 0.5, 0.75, 1.5, 2.5, 5. Standard lift (m): 1.5 for all models. Hand pull for lifting (N): 260, 260, 220, 240, 330, 330. Test load (kg): 375, 750, 1125, 2250, 3750, 7500. Load-chain diameter and pitch (mm): 4 x 12, 4 x 12, 5 x 15, 7 x 21, 9 x 27, 9 x 27. Additional weight per 1-meter chain added (kg/m): 0.346, 0.346, 0.541, 1.1, 1.8, 1.8. Dimensions (mm), A: 86, 95, 121, 139, 173, 173; B: 155, 178, 204, 235, 286, 340; C: 170, 170, 240, 240, 335, 335; D: 30, 35, 30, 42, 52, 60; E: 79, 87, 112, 133, 162, 162; Hmin: 245, 285, 335, 365, 448, 600; G: 97, 177, 124, 159, 178, 178; H: 77, 80, 84, 90, 97, 97. Net weight/gross weight (kg): 2.2/2.4, 3.2/3.4, 4.7/5, 7.6/8, 14/14.5, 22/22.5.
