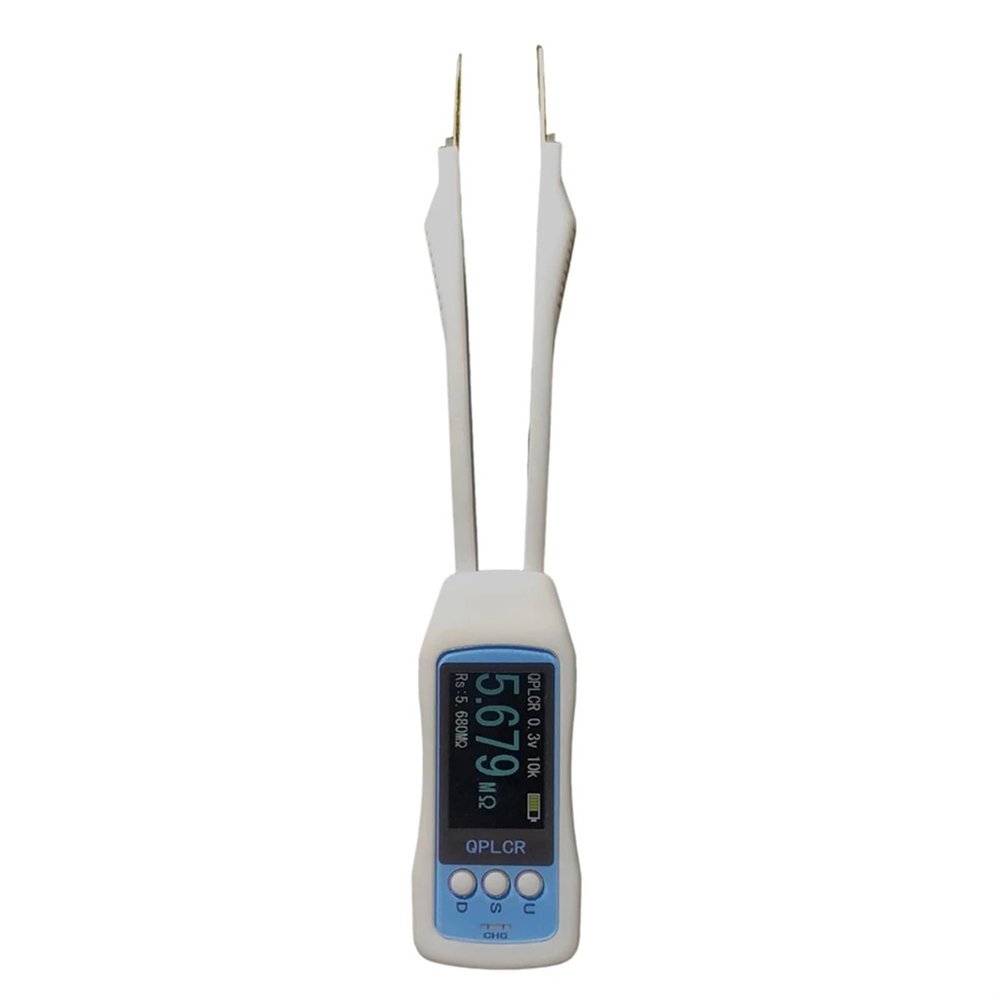

Handheld Digital LCR Meter with Smart SMD Tweezers

Description

• 1.14-inch IPS TFT display with a full viewing angle for clear readings
• Built-in 300 mAh lithium battery with approximately 6 hours of standby time
• USB Type-C interface for external 5 V power; charging indicator changes from red to green when fully charged
• Brass tweezer tips and four-wire Kelvin testing for precise measurements
• Bilingual Chinese/English interface with large-font readings

Specifications: Origin: Mainland China Certification: CE DIY supplies: Electrical Display type: Digital only Measurement parameters: 1. Measured operating frequencies: 100 Hz, 1 kHz, and 10 kHz 2. Measured operating voltages: 0.3 V and 1.0 V; 1.0 V is commonly used 3. Supported components: resistance, capacitance, inductance, and diodes Ranges: Capacitance: 1 pF10 mF Inductance: 1 H1 H Resistance: 1 m10 M Housing material: ABS + metal Product size: approximately 170.00 40.00 20.00 mm Product size: 6.69 1.57 0.79 in Note: Due to differences in monitors and lighting effects, the actual item color may vary slightly from the color shown in the images. Please allow a 12 cm measurement deviation due to manual measurement. Included: 1 LCR tweezers 1 Storage box Concerned chemical: None Measurement range: 1 m10 m Model number: LCR bridge meter Display type: Digital only
