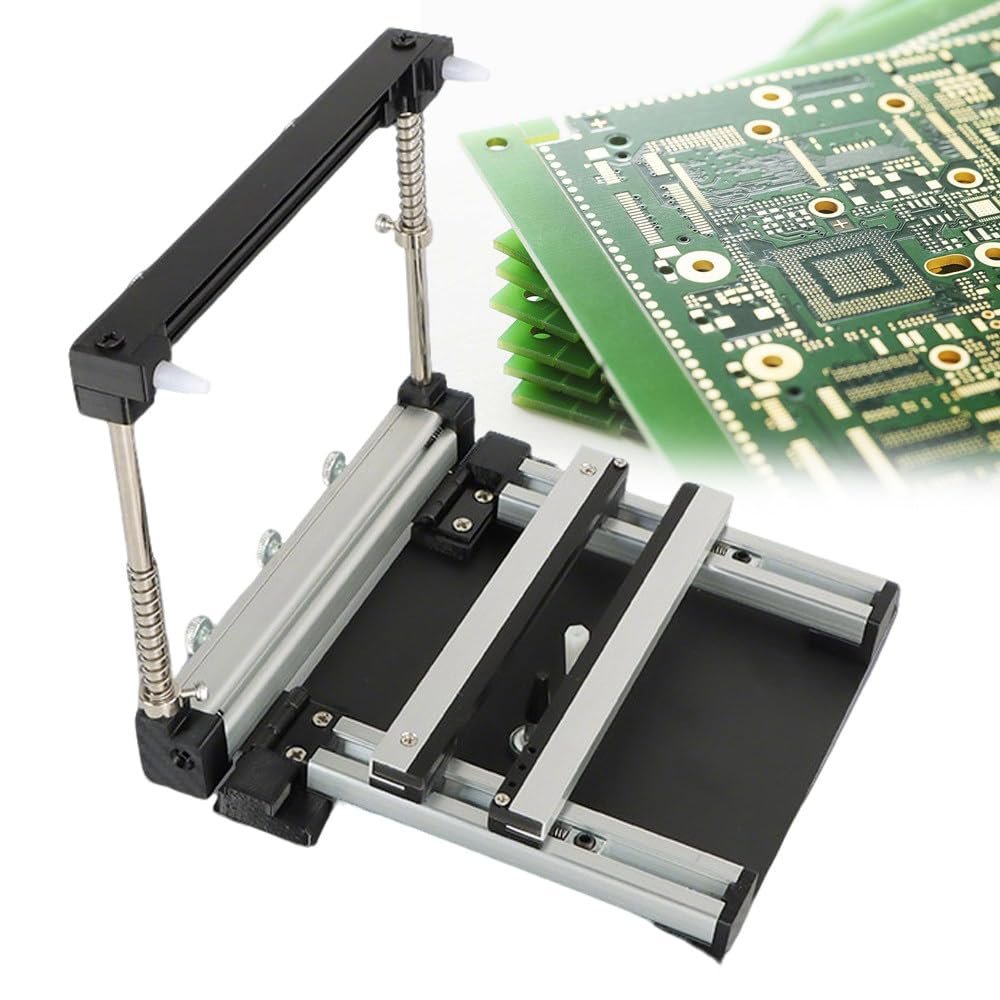

GZKDKZB Manual Aluminum SMT Stencil Printing Station

Description

• High precision: Honeycomb positioning holes and precision guide pins provide repeatability of 0.01 mm. Adjustable printing speed supports precise solder paste placement and helps reduce misalignment and cold solder joints.
• Multidirectionally adjustable: The worktable moves forward, backward, left, and right, while the stencil frame height is freely adjustable. Supports various stencil sizes and PCB dimensions.
• Sturdy and durable: The main housing is made of high-strength aluminum alloy that is lightweight, stable, and rust-resistant. Four nonslip feet reduce vibration and support stable printing.
• Easy to use: Positioning and ejector pins allow stencils to be positioned quickly without tools. Manual speed control uses an intuitive rotary knob.
• Wide range of applications: Designed for SMT stencil printing, small-batch PCB production, and prototype development in research and development. Suitable for various solder paste viscosities and for laboratories, makerspaces, and small to medium-sized businesses.

With repeatability of 0.01 mm and suitability for precision printing in small to medium-sized batches, this manual mini screen-printing table is designed for solder paste printing on PCBs. The thickness is adjustable and the unit is suitable for precise PCB assembly. Features include broad applicability, flexibility, durability, high precision, and ease of operation. Specifications: Model: SMT stencil printing table; material: aluminum alloy; printing speed: manually adjustable. Available sizes: 10 x 10 cm (table dimensions: 13.5 x 16.5 x 5 cm; maximum PCB size: 6.5 x 12 cm; effective printing area: 5.5 x 8 cm; PCB thickness: 0.81.6 mm; weight: 750 g); 15 x 15 cm (table dimensions: 21.5 x 22 x 6.5 cm; maximum PCB size: 11.5 x 17 cm; effective printing area: 10 x 13 cm; PCB thickness: 0.82 mm; weight: 1,680 g); 20 x 20 cm (table dimensions: 26 x 26.5 x 6.5 cm; maximum PCB size: 16.5 x 22 cm; effective printing area: 15 x 18 cm; PCB thickness: 0.82 mm; weight: 2,010 g). Included: PCB stencil printing table, 10 cm squeegee, Phillips screwdriver, hex screwdriver, and 2 magnetic holding clamps. Note: Slight deviations of 12 cm may occur due to manual measurement. Custom configurations are possible.
