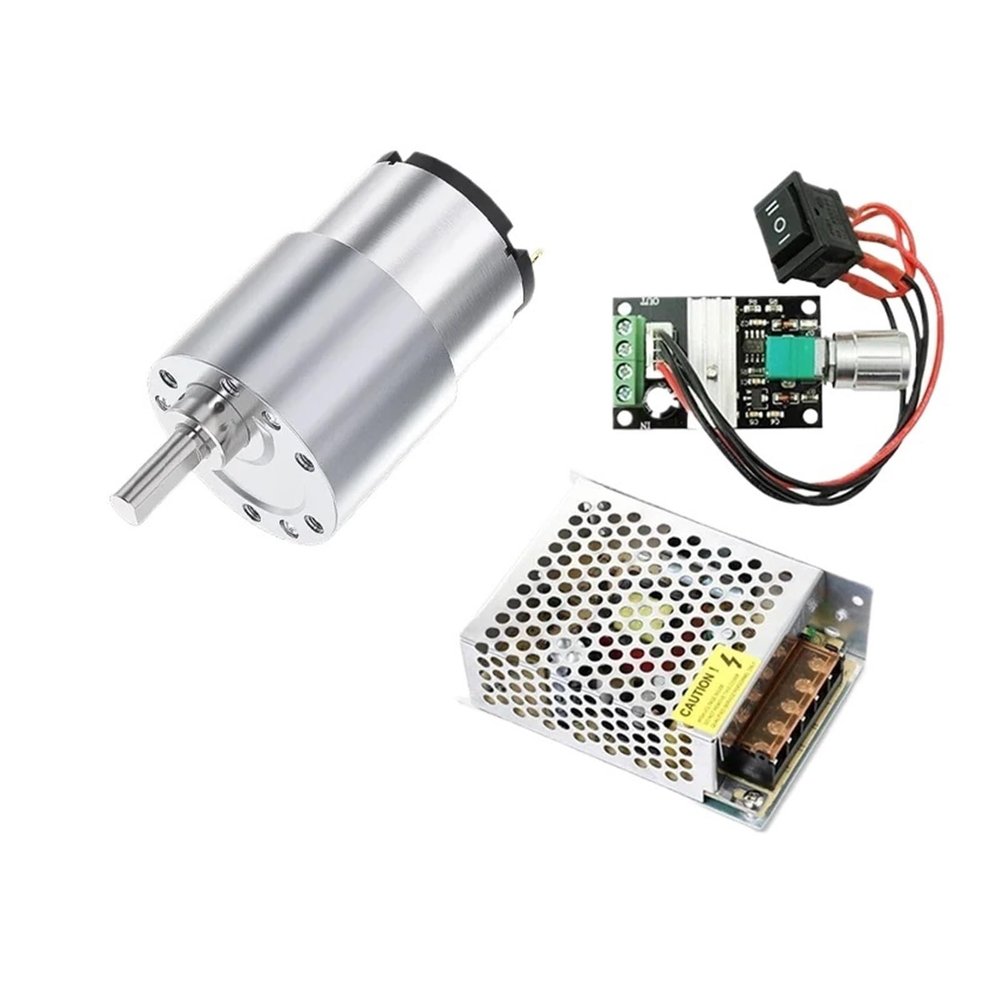

GUIPENG JGB37-520 DC 12V/24V Reduction Gear Motor, High Torque, 7-960 RPM, Reversible (Package B, 200_12V)

Description

• JGB37-520 DC 12V/24V reduction gear motor with high torque and high power
• Maximum torque: 25 kg/cm
• Speed range: 7 RPM to 960 RPM
• Compatible with 12V and 24V systems
• Compact design: 33 mm motor diameter and 22.7 mm motor body length
• Reversible operation for bidirectional control
• 15 kg capacity as stated in the source

Specifications: Note: The lower the speed, the greater the torque. Voltage: DC 12V No-load speeds: 7 RPM, 12 RPM, 22 RPM, 35 RPM, 45 RPM, 66 RPM, 107 RPM, 200 RPM, 320 RPM, 600 RPM, 960 RPM Voltage: DC 24V No-load speeds: 7 RPM, 12 RPM, 22 RPM, 35 RPM, 45 RPM, 66 RPM, 107 RPM, 200 RPM, 320 RPM, 600 RPM, 960 RPM Maximum power: 10 W Maximum torque: 25 kg/cm Motor diameter: 33 mm Motor body length: 22.7 mm Output shaft diameter: 6 mm Output shaft length: 15 mm Gearbox diameter: 37 mm
