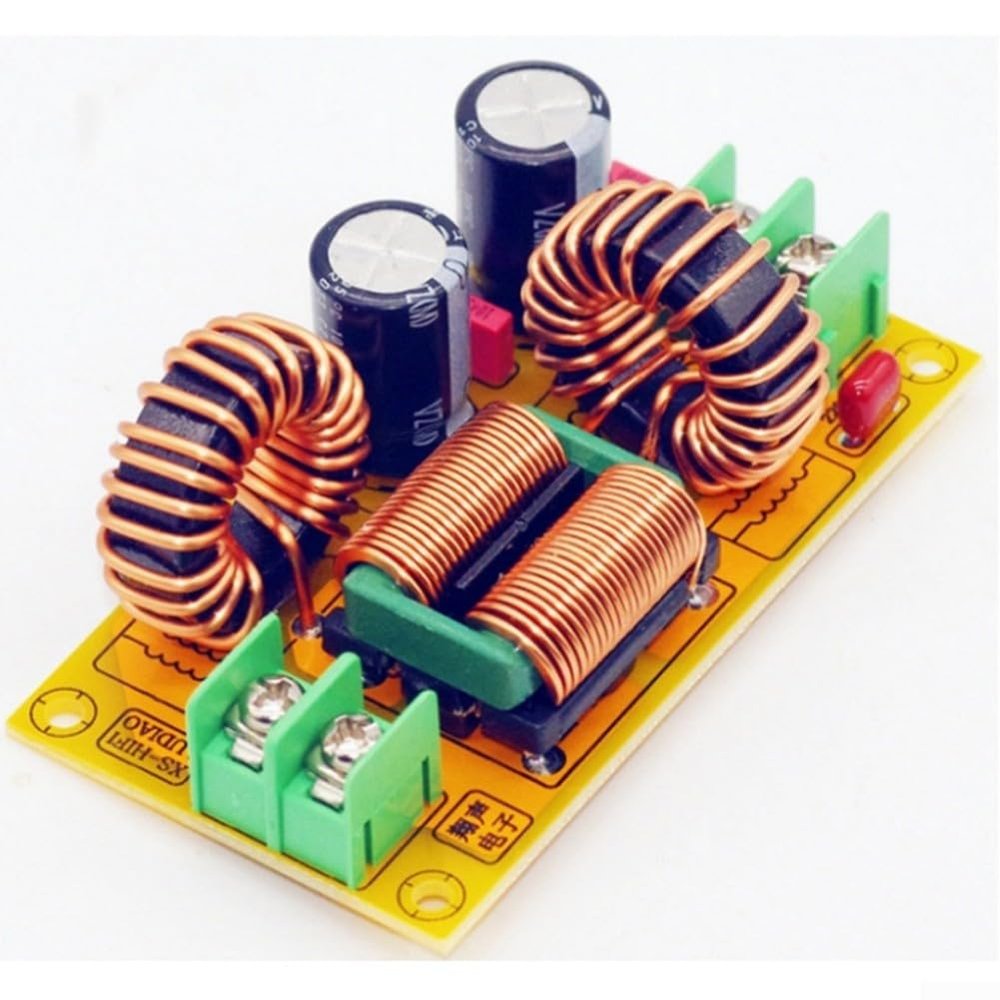

GLFLOW EMI Suppression Filter, DC LC Filter, 20 A, 50 V

Description

• Comprehensive suppression: Reduces electromagnetic interference in DC circuits with a robust LC filter design for cleaner, more stable power.
• Multi-stage filter structure: Includes primary and secondary LC filter circuits plus a common-mode filter to reduce noise and fast transient pulse interference.
• High current capacity: Supports 10 A and 20 A at up to DC 50 V, with a short high-current path for low resistance.
• Quality components: Double-sided FR4 fiberglass PCB, 470 F and 100 nF capacitors, and magnetic ring inductors.
• Versatile applications: Suitable for cars, motorcycles, and various DC-powered systems. Confirm compatibility and verify your technical requirements before installation.

Features: Compact and refined. Reliable performance. Low power consumption. Versatile applications. Shortest distance to high-current lines. Description: This DC power supply filter circuit consists of three sections: a primary LC filter circuit, a common-mode filter, and a secondary LC filter circuit. An LC filter, generally known as a passive filter, is a traditional DC power compensation device consisting of inductors and capacitors. It can filter one or more harmonics from the power supply and help clean the DC power supply. Common-mode filtering can address fast transient burst-pulse interference with repetition frequencies of several thousand hertz in some user locations and can also suppress this interference. The PCB specification is FR4, 42 77 1.6 mm. The short high-current circuit design uses a short path, allowing it to withstand higher current and resist external interference. Compatible inductors: 10 A and 20 A. Input: DC, not exceeding 50 V. Higher voltage may be possible by replacing the electrolytic capacitors. Output: DC. Current: 10 A, 20 A. Main specifications: PCB: Double-sided FR4 fiberglass board. Electrolytic capacitors: 50 V, 470 F, 2 pieces. Film capacitors: 100 nF, 2 pieces; 470 pF, 1 piece. Magnetic ring inductors: 2 pieces, rated for 20 A high current individually. Common-mode inductor: 1 piece, rated for 20 A high current with a copper strip. Sockets: 7.62 mm pitch; one each of 2-pin and 3-pin sockets. This module is suitable for DC power supplies where electromagnetic interference needs to be reduced, including cars, motorcycles, and DC circuits with relatively strong electromagnetic interference. Technical specifications: Part name: Filter. Material: As shown. Size: As shown. Color: As shown. Package contents: 1 filter.
