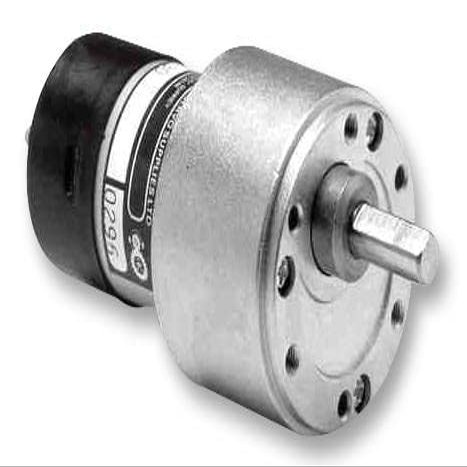

Geared DC Motor, 24 V, 8 RPM, 250:1, 1308-24-250

Description

• Geared DC motor
• Rated voltage: 24 V DC
• Rated speed: 8 RPM
• Maximum speed: 14 RPM
• Maximum torque: 100 Ncm
• Rated current: 125 mA
• Gear ratio: 250:1
• Housing diameter: 30 mm
• Outer diameter: 39.6 mm
• Overall length: 69 mm
• Shaft diameter: 6.8 mm
• Shaft length: 20.5 mm
• Operating temperature: -20C to 60C
• Termination type: Solder
• Weight: 190 g
• Package contents: 1 piece

Geared DC motor, 24 V, 8 RPM, model 1308-24-250. The motor has a rated voltage of 24 V DC, a rated speed of 8 RPM, a maximum speed of 14 RPM, and maximum torque of 100 Ncm. It has a 250:1 gear ratio, a 6.8 mm diameter shaft with a length of 20.5 mm, and a solder termination. Housing diameter is 30 mm, outer diameter is 39.6 mm, and overall length is 69 mm. Operating temperature range: -20C to 60C. No SVHC listed as of January 15, 2018. Includes 1 piece.
