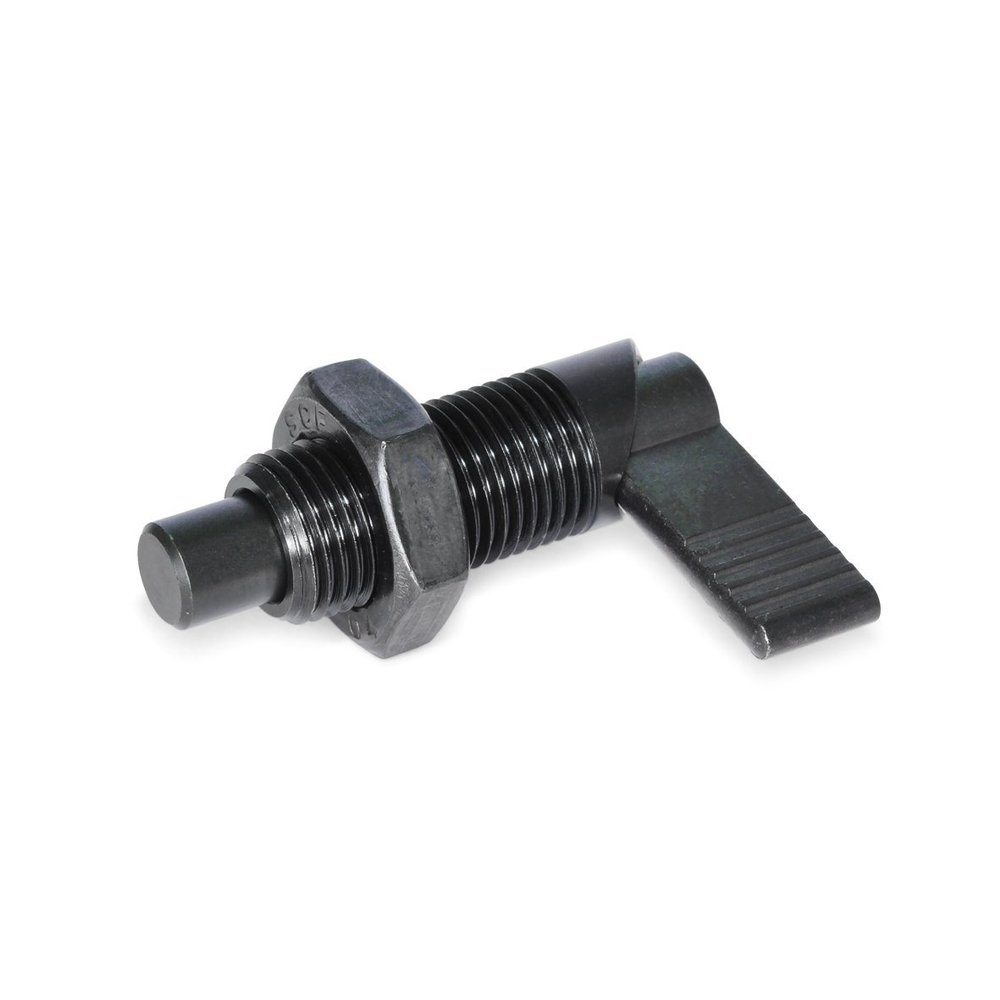

Ganter Standard Elements | Indexing Plunger GN 612-8-M16x1.5-AK | Pin Diameter: 8 mm | Burnished Steel | 1 Pc.

Description

• Pin diameter d1: 8 mm
• Thread d2: M16 x 1.5
• Overall length l1: 56 mm
• Pin length l2: 10 mm
• Plunger length l3: 32 mm
• Spring force: 11 N (initial) to 29 N (end)
• Form AK: without plastic cap, with locknut
• Burnished steel; indexing pin: nitrided
• Compression spring: corrosion-resistant stainless steel, 1.4310

GN 612 indexing plungers are used when the indexing pin should not protrude temporarily. By turning the plunger 180, the indexing pin retracts. The indexing notch enables secure positioning.
