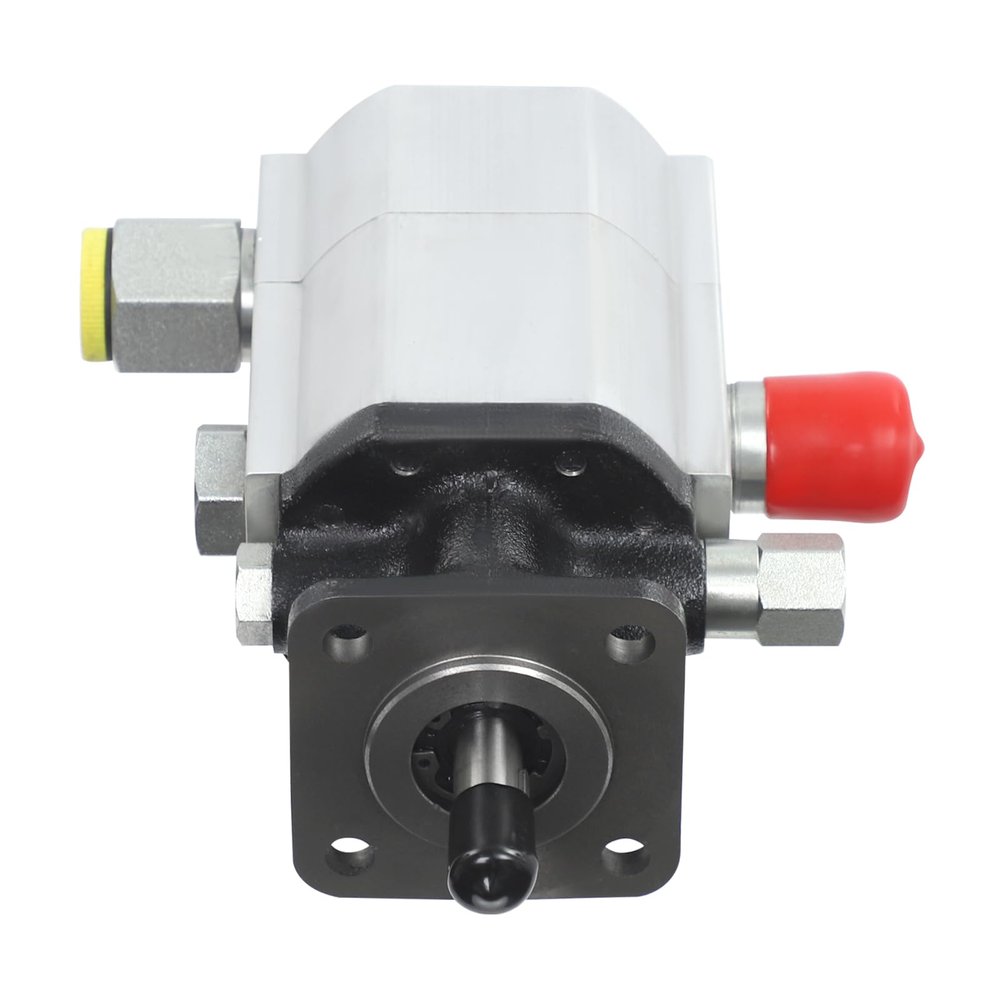

Fyssnn 13/16 GPM Hydraulic Log Splitter Pump, Gear Pump for Log Splitters, Dump Trailers & Presses (16 GPM)

Description

• High efficiency: Delivers smooth, powerful operation while minimizing energy loss, with fast cycles and consistent high pressure.
• Thoughtful design: Threaded connections are prewrapped with sealing tape and use standard outlets for quick, secure installation.
• Essential helper: Splits wood more efficiently and with less effort.
• Space-saving: Compact size is convenient for use and storage.
• Easy to clean: Smooth surface and simple construction can be wiped with a damp cloth (not included).

Specifications Color: Black and silver Installation required: Yes Pump type: Hydraulic pump Suitable medium: Hydraulic fluid (not included) Material: 6005-T6, HT200 CLB13GPM Flow rate: 13 GPM 10% Gross weight: 3.3 kg/7.28 lbs Net weight: 3.13 kg/6.9 lbs Product size: 18.3 7.2 13.7 cm/7.2 2.8 5.4 in Package size: 23.5 22 12 cm/9.25 8.66 4.72 in CLB16GPM Maximum flow rate: 16 GPM 10% Maximum pressure: 3,000 PSI 10% (22 MPa 10%) Maximum speed: 3,000 RPM 10% Rated speed: 1,440 RPM 10% Rated flow rate: 5.5 GPM 10% (20.8 LPM 10%) Volumetric efficiency: 93% Compatible motor power: 5.57.5 HP No-load speed: 3,600 RPM Inlet size: 1 in/2.54 cm Outlet size: 1/2 in NPT/1.27 cm Noise level: 75 dB Gear pump output shaft diameter: 1/2 in/1.27 cm Gross weight: 3.8 kg/8.38 lbs Net weight: 3.3 kg/7.28 lbs Product size: 130 85 166 mm/5.12 3.35 6.54 in Package size: 23.5 22 12 cm/9.25 8.66 4.72 in Application The log splitter pump is commonly used in hydraulic log splitters for forestry. It can also be used in presses, truck snowplows, machine tools, dump trailer lifting systems, and more. Package contents 1 Hydraulic log splitter pump 1 Sealing tape 1 English instruction manual 1 Wrench Notes 1. Check carefully before ordering that the size is suitable. 2. During installation, ensure that the oil circuit direction is correct; otherwise, reverse operation or damage may occur.
