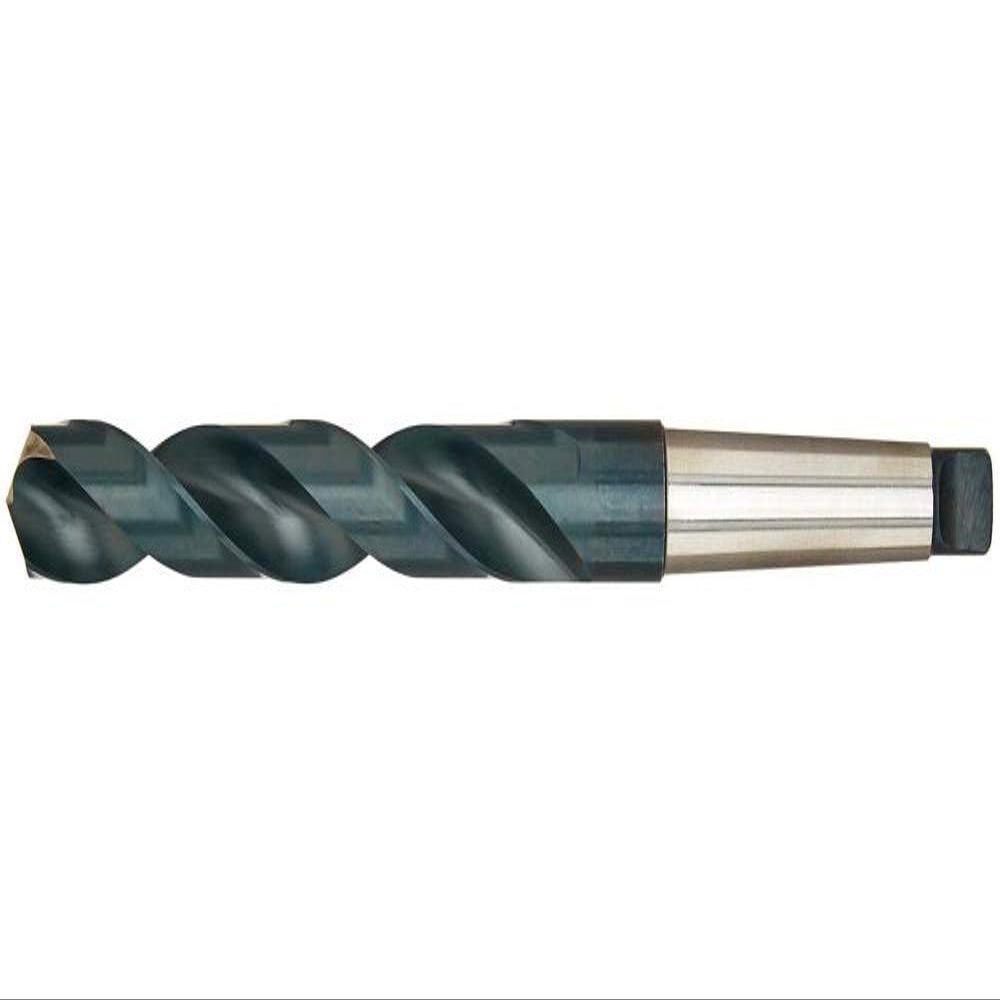

FORMAT D345N HSS Ground Morse Taper Twist Drill

Description

• Morse taper shank, HSS, DIN 345, Type N, profile-ground, steam-tempered surface
• Right-hand cutting with precision-ground point
• Web thinning according to DIN 1412, Form A
• Normal rake angle, core thickness, and core increase
• Suitable especially for alloyed and unalloyed steel, cast steel, gray cast iron, malleable cast iron, spheroidal graphite cast iron, sintered iron, and graphite
• High concentricity and pitch accuracy
• H8: 24.50 mm
• Flute length: 160 mm
• Overall length: 281 mm
• Morse taper: MT 3
• F: 0.400 mm/rev
• Steels up to 850 N/mm: 25

Design: Right-hand cutting, with a precision-ground point. Web thinning according to DIN 1412, Form A. Normal rake angle, core thickness, and core increase. Application: Particularly suitable for alloyed and unalloyed steel, cast iron, gray cast iron, malleable cast iron, spheroidal graphite cast iron, sintered iron, and graphite. High concentricity and pitch accuracy. Diameter h8: 10.00 mm. Usable length: 87 mm. Overall length: 168 mm. Morse taper: MT 1.
