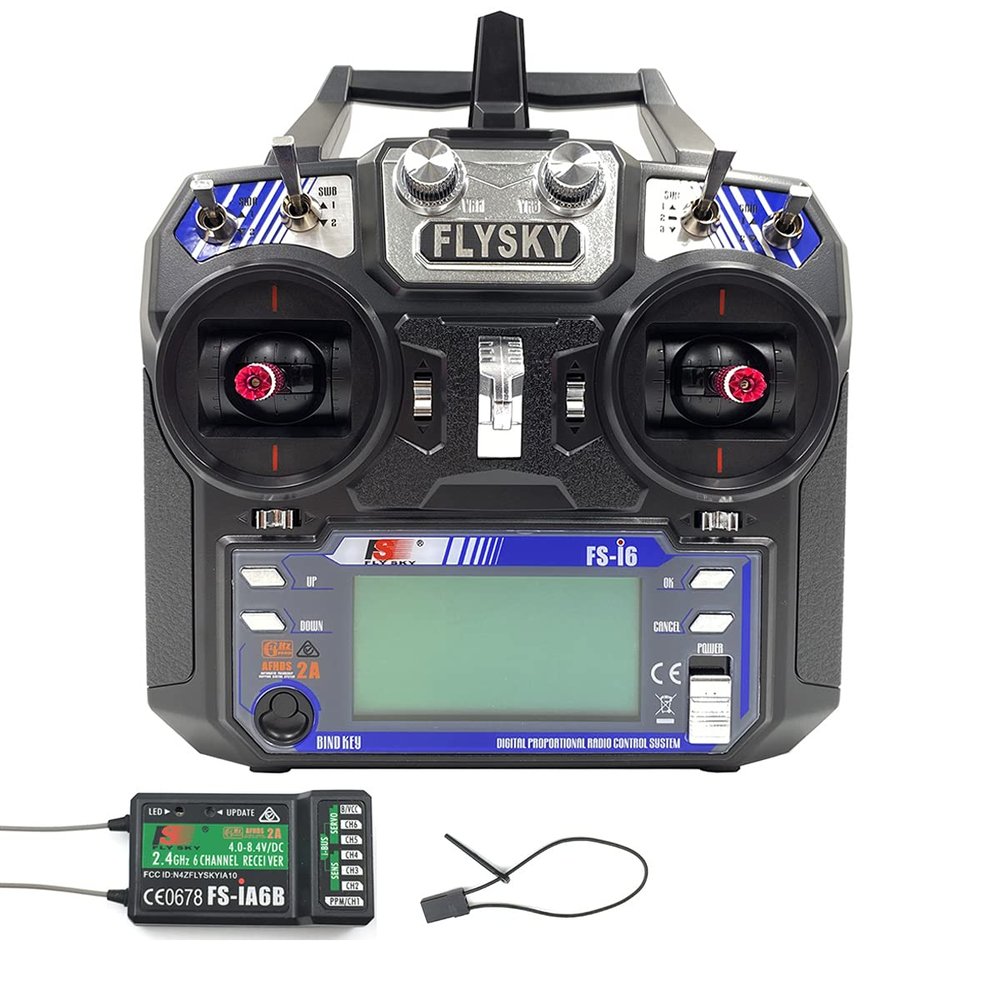

Flysky FS-i6 6CH 2.4GHz AFHDS2A RC Transmitter with FS-iA6B Receiver, Mode 2

Description

• Low-power electronic components with a sensitive receiver chip; intermittent RF modulation further reduces power consumption.
• High-gain, high-quality multidirectional antenna covers the entire frequency band.
• Suitable for racing drones, fixed-wing aircraft, quadcopters, and multirotors.
• Each transmitter has a unique ID; after binding, the receiver accepts data only from that transmitter, improving interference resistance and security.
• Includes an FS-i6 6-channel 2.4GHz AFHDS2A transmitter and FS-iA6B receiver.

Product descriptions Transmitter specifications: Channels: 6 Model type: Fixed-wing aircraft/glider/helicopter RF range: 2.4052.475GHz Bandwidth: 500KHz Band: 142 RF power: less than 20dBm 2.4G system: AFHDS 2A and AFHDS Coding type: GFSK Sensitivity: 1024 Low-voltage warning: less than 4.2V DSC port: PS2 Output: PPM Charging port: no ANT Power supply: 6V, 1.5V AA 4 (not included) Display: transflective STN positive type, 128 64 dot matrix, VA 72 39mm, white backlight Size: 174 89 190mm Weight: 392g Color: Black FS-iA6B receiver specifications: Channels: 6-channel PWM, PPM, i-Bus Model type: Aircraft/glider/helicopter Frequency range: 2.42.48GHz Band number: 140 Transmission power: no more than 20dBm RX sensitivity: -105dBm 2.4G system: AFHDS 2A Coding type: GFSK Antenna length: 26mm Input power: 4.08.4V DC Dimensions: 40 21 7mm Weight: 16.4g Color: Black Package includes: 1 FS-i6 transmitter 1 FS-iA6B receiver 1 User manual Instructions: 1. Connect the included bind cable to the B/VCC port on the receiver. 2. Connect power to any other port. 3. Hold the "BIND KEY" while switching on the transmitter to enter binding mode. 4. Disconnect the power and bind cables from the receiver. Then connect the power cable to the B/VCC port. 5. Check servo operation. If anything does not work as expected, restart this procedure from the beginning.
