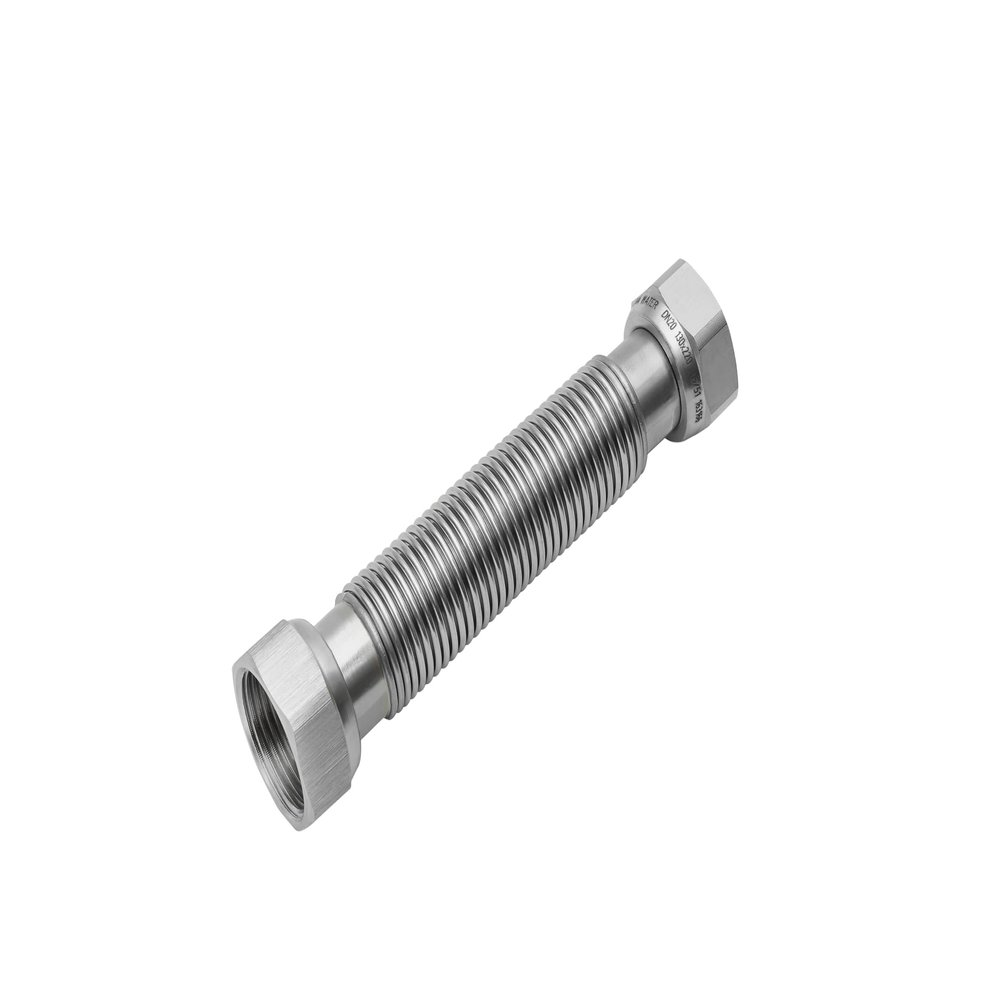

Flexo Flexible Extendable Stainless Steel Corrugated Tube with Gasket, 1", 130–220 mm, M x M

Description

• Brand: S-H-K
• Sizes: 1/2", 3/4", and 1"
• Available in various lengths
• Union nut with female thread manufactured according to EN ISO 228-1
• Tapered male thread manufactured according to EN 10226-1
• Applications: plumbing installations, radiator connections, water connections, and compensators for tanks, boilers, and expansion vessels
• Includes Klingerit flat gasket
• Made in the EU

FLEXIBLE, EXTENDABLE WATER CONNECTIONS WITH GASKET FOR PLUMBING AND HVAC INSTALLATIONS Abbreviations: M means: union nut with female thread. AG means: male thread. Flexible, extendable stainless steel corrugated tube with gasket, available in sizes 1/2", 3/4", and 1". A flexible, expandable water connection and an alternative to rigid connections. Typical applications include plumbing installations, radiator connections, water connections for boilers and water heaters, water tanks, and domestic water systems. The hose is made of austenitic AISI 304L stainless steel. Connections are made of AISI 304L stainless steel and include a Klingerit gasket and a nickel-plated brass union nut. The Flexo-ExDrop stainless steel water connection is a highly flexible installation connector designed to save time and costs. Its construction and processing provide high pressure and temperature resistance. Flexo-ExDrop connections solve installation problems typical of rigid connections. For short sections, elbows, sleeves, or similar connecting elements are not required. This reduces the time needed to connect the device and requires less effort from the installer. The connection is easy to make and can reach up to 100% of its original length. This gives the installer a reliable length reserve, while the connection remains durable, dependable, and aesthetically pleasing. Due to its corrugated structure, Flexo-ExDrop can compensate for expansion caused by temperature fluctuations. It also absorbs installation vibrations caused by switching on automation or opening valves, which significantly helps maintain the tightness of the installation. Flexo-ExDrop connections undergo special heat treatment that increases their flexibility and corrosion resistance while reducing their degree of elasticity. As a result, they retain their shape permanently. KEY FEATURES EASY INSTALLATION - The flexible structure of the hoses makes it easier to connect devices. - They allow installation with a small bending radius without reducing the flow cross-section of the working medium. SAFETY - All Flexo-ExDrop water connection components are manufactured according to high processing standards, with particular attention to user safety and health, and meet the requirements of EN ISO 10380. SERVICE LIFE - Thermal heat treatment of the hoses during production normalizes the hose material, relieves stresses, and thereby extends service life. TYPICAL APPLICATIONS - Plumbing installations, radiator connections, water connections for boilers and water heaters, water tanks and storage tanks, and domestic water systems. SPECIFICATIONS - Corrugated tube: AISI 304L stainless steel, flexible, with close corrugation. - Connection with male thread: made of AISI 304 stainless steel. - Connection with union nut and female thread: made of AISI 304 stainless steel with a brass union nut. - Connection types: M/M (item FPW2) or M/AG (item FPW3). - Gaskets: NBR/EPDM/Klingerit. - Operating temperature: -10C to +100C. - Maximum operating pressure: 1/2" 8 bar; 3/4" 7 bar; 1" 6 bar.
