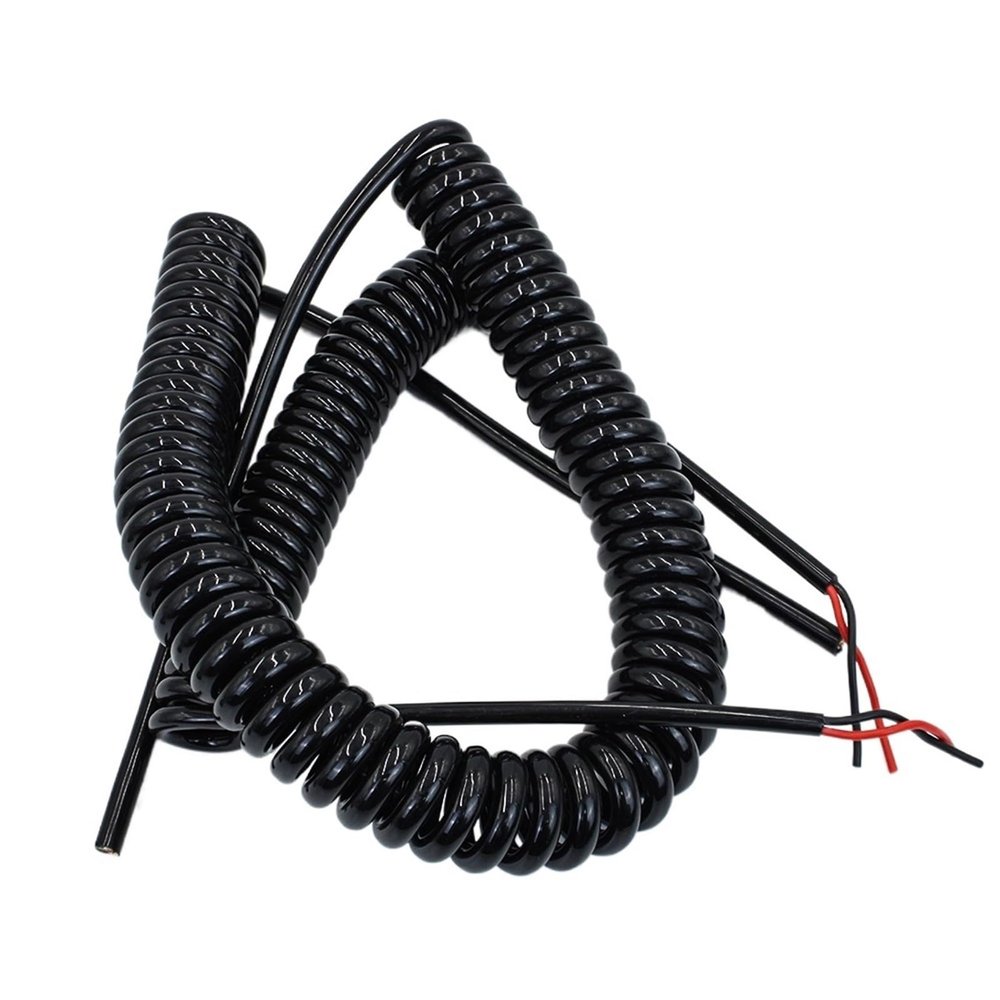

Flexible Stretch Cable, 2.5 m, Automatic Retraction, 4-Core

Description

• Operating temperature: -65C cold resistance on request; temperature resistance of 80C, 105C, or 125C
• For rated AC voltage of 450/750 V or DC voltage from less than 6 V to 1,000 V; suitable for back-and-forth movement
• Good resistance to cold, flame, oil, and wear
• For fixed installations; bends around obstacles and retains its shape
• Suitable for indoor, outdoor, and underground installations with suitable mechanical protection in conduits or similar
• Especially suitable for warehouses, agricultural buildings, gantry wiring, and factories

Stretch length: 2.5 m (ensible and stretchable beyond 2.5 m). Core sizes: 24 AWG (0.2 mm), 22 AWG (0.3 mm), 20 AWG (0.5 mm), 18 AWG (0.75 mm), 17 AWG (1.0 mm), and 14 AWG (2.0 mm). Core construction: single or bonded bare soft copper wire, or tinned copper wire. Insulation: polyoxyethylene, polyethylene, or polyethylene may be used to meet the requirements of different applications. Jacket material: generally flame-retardant elastic polyurethane (PU). Operating temperature: -65C cold resistance on request; temperature resistance of 80C, 105C, or 125C. Application: for rated AC voltage of 450/750 V or DC voltage from less than 6 V to 1,000 V, where back-and-forth movement is required. Product features: good flexibility and elasticity; the stretch length can be 23 times the length of the original spring. Provides good resistance to cold, flame, oil, and wear.
