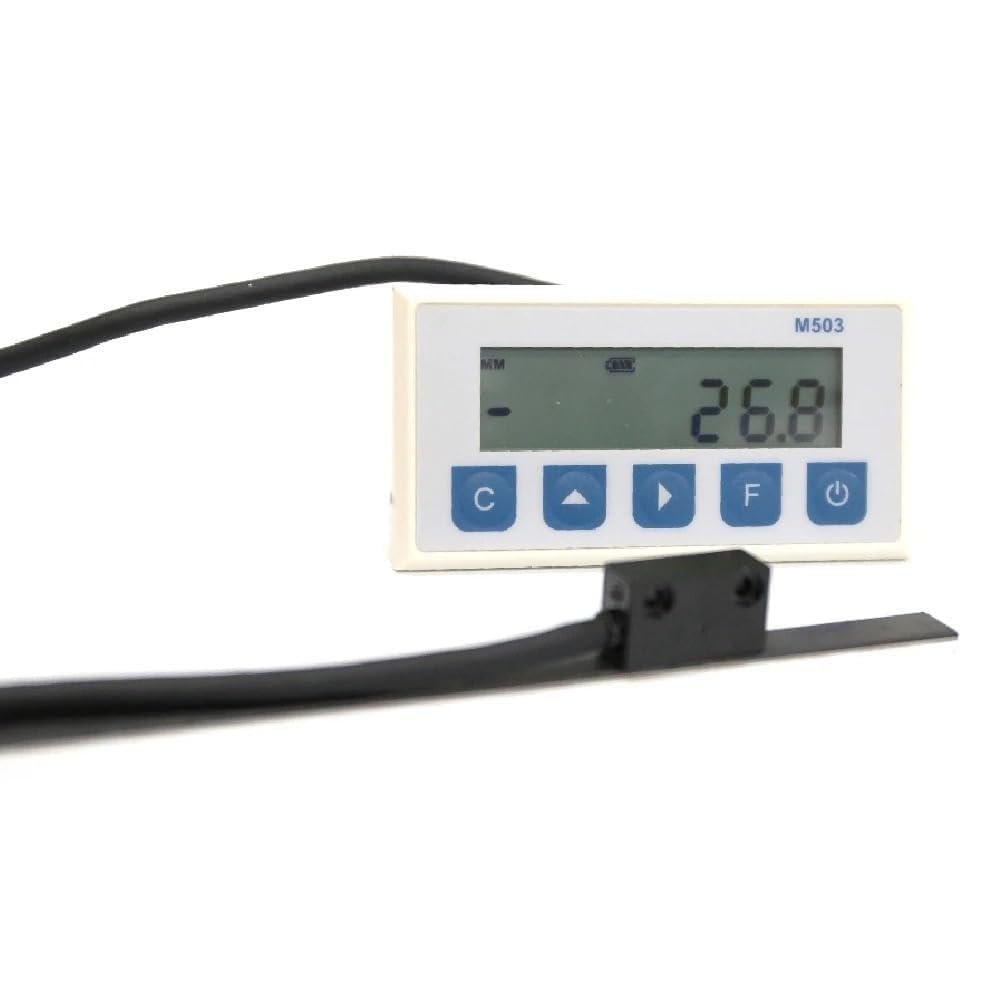

Flechae M503 Magnetic Scale Sensor Display, 1000 mm Tape

Description

• M503 magnetic scale sensor
• For DRO display with integrated magnetic measuring tape
• Suitable for woodworking, cutting and contour work
• Level measuring device
• Measurement range: -1,999,999 to 9,999,999
• System accuracy: (0.03 + 0.01 L) mm
• Repeatability: max. 0.01 mm
• Resolution: 0.01 mm / 0.1 mm / 1 mm
• Display modes: mm / inch
• Measurement modes: length / angle

M503 magnetic scale display with an integrated embedded magnetic measuring system and magnetic tape for cutting machines and woodworking. Package options: M503 display, or M503 display + sensor + tape. The M503 display option includes one display and one magnetic sensor; magnetic tape is not included. The display does not include batteries because the carrier cannot ship them. The display cannot be switched off and has very low power consumption. Technical parameters: power consumption max. 500 A with the backlight off; power supply: two AA batteries; operating temperature 0C to 60C; storage temperature -10C to 70C; outer dimensions 100 52 30 mm; opening dimensions 92 42 mm; sensor cable length 1 m; maximum moving speed 5 m/s; maximum reading distance 2.5 mm, recommended 1.5 mm; compatible magnetic strip: FT50; water resistance: digital display IP40, read head IP60; weight max. 150 g. Magnetic tape details: adhesive magnetic tape, 10 1.3 mm, pole pitch 5 mm. The magnetic tape is supplied with a stainless-steel strip; the user only needs to attach it. Model: M503. Certifications: CE, RoHS. Origin: mainland China. Product name: magnetic DRO display with sensor.
