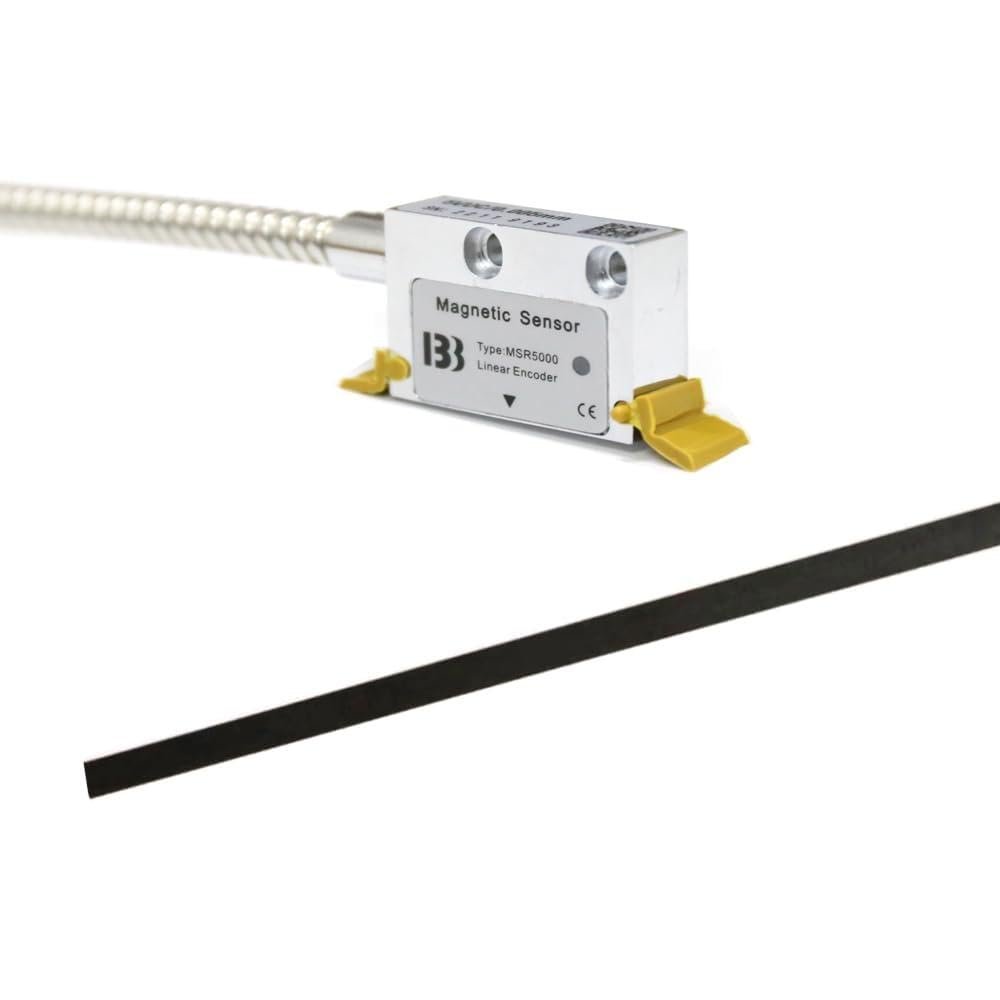

Flechae High-Precision Magnetic Scale Sensor for Milling Machines, 5 V, 0.005 mm, 5 m TTL Encoder

Description

• High-precision magnetic linear sensor for milling machines
• 5 V, 0.005 mm, 5 m TTL magnetic encoder for wood and stone lathes
• Compatible with Chinese TTL DRO systems, including Sino, Easson and Ditron
• Maximum installation gap: 4 mm; recommended gap: 2 mm
• TTL output; operating speed up to 20 m/s
• IP67 waterproof rating
• Operating temperature: -10 to +70 C
• 3 m sensor cable included
• Magnetic tape size: 10 1.3 mm
• CE, EAC and RoHS certified

High-precision magnetic scale sensor for milling machines, featuring a 5 V, 0.005 mm, 5 m TTL encoder for wood and stone lathes. The magnetic sensor with TTL output is compatible with Chinese DRO systems such as Sino, Easson and Ditron, as well as other linear glass scales. It is supplied with a linear guide that helps protect the magnetic strip and reading head. Suitable for large lathes, milling machines and various machine tools, with low operating cost and long service life. Package contents: - 1 magnetic reading sensor with 3 m cable Specifications: - Model: MSR5000 - Input: 5 V DC - Output: TTL, 5 V DC - Reading cable length: 3 m - Installation gap: maximum 4 mm, 2 mm recommended - Maximum operating speed: 20 m/s - Operating temperature: -10 to +70 C - Waterproof rating: IP67 - Compatible with glass scales for the same DRO: Yes - Suitable DRO: All Chinese TTL systems - High-precision magnetic tape: 5 + 5 mm; magnetic strip: 10 1.5 mm - Model number: MSR500 - Origin: Mainland China - Product name: Magnetic sensor
