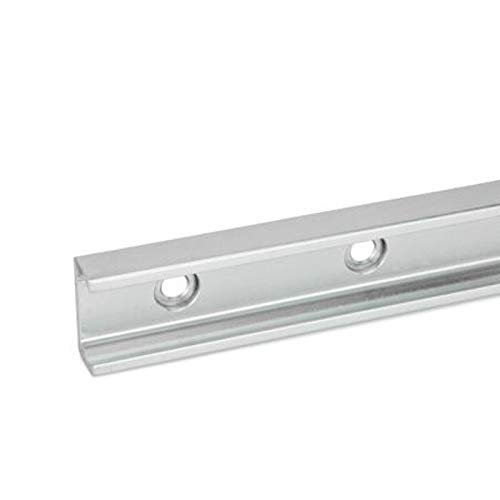

Fixed-Bearing Guide Rail (C-Profile), L 800 mm, H 35 mm, Counterbored Mounting Holes

Description

• Heat-treated steel, galvanized, blue passivated
• Raceways: hardened and ground
• Flat-head screws, steel, galvanized, blue passivated
• Fixed-bearing guide rail (C-profile), L 800 mm, H 35 mm

Technical specifications: Heat-treated steel, galvanized, blue passivated Raceways: hardened and ground Flat-head screws, steel, galvanized, blue passivated Version: XT fixed-bearing guide rail with counterbored mounting holes GN2422 guide rails are combined with GN2424 roller carriages or GN2426 rollers to create roller guide systems. The systems are characterized by high stability and smooth running, including at higher travel speeds. The possible combination of fixed-bearing and floating-bearing guide rails means they place no special requirements on the surrounding construction and allow parallelism errors to be compensated. In the XT version, flat-head screws with a correspondingly low head are included. Dimensions: h1: 35 mm l1: 800 mm m1: 40 mm b1: 16.5 mm d2: 8 mm d3: M6 d4: 15 mm l2: 12 mm m2: 80 mm s1: 3.5 mm s2: 0.8 mm sw: T30
