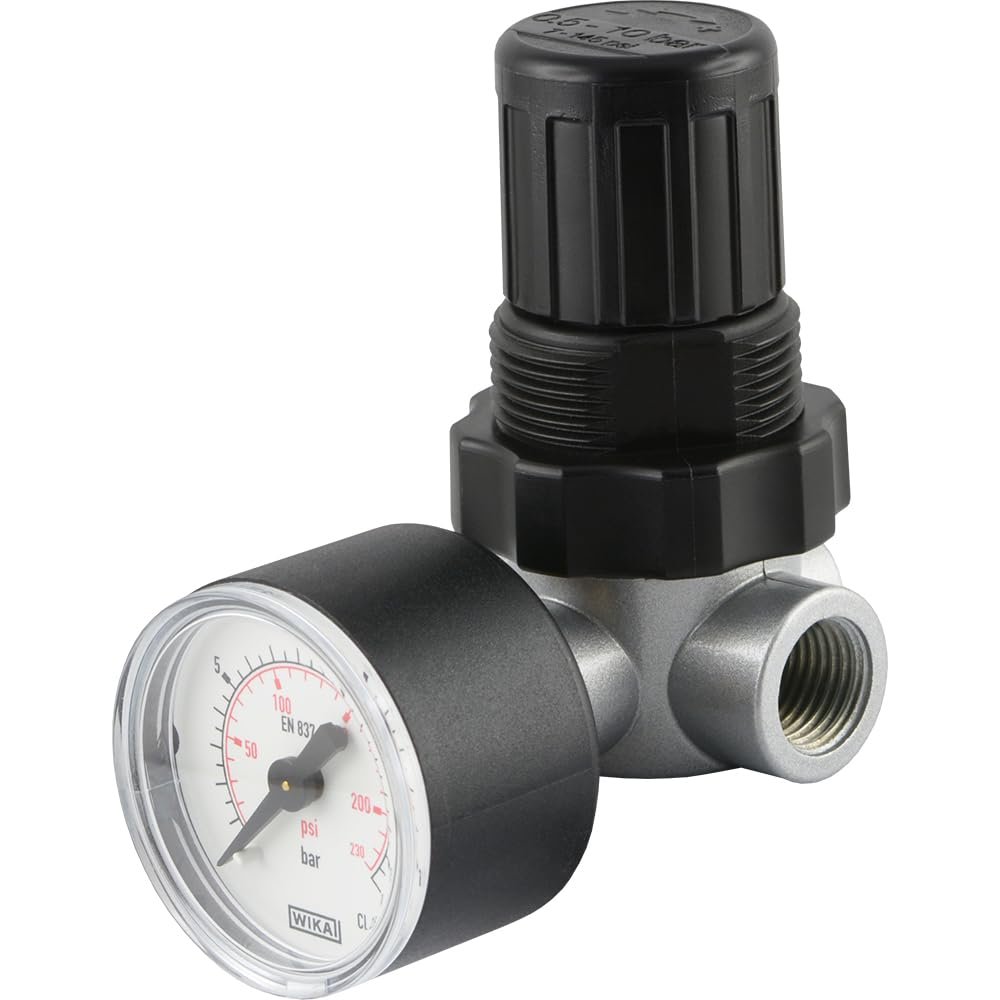

Fitting Parts - Mini Compressed-Air Regulator - Inlet-Pressure-Dependent - 450 L/min - Pressure Reducer with Pressure Gauge (Thread: G 1/4 in - Pressure Adjustment Range: 0.5-10 bar)

Description

• Design: Relieving pressure regulator with secondary venting
• Materials: Body: Z410 zinc die-cast; spring cap: POM; diaphragm: TPU; seals: NBR
• Temperature range: -10C to +60C
• Inlet pressure: max. 25 bar
• Pressure gauge display: 0-16 bar
• Pressure gauge connection: G 1/8 in
• Panel mounting thread: M 30 x 1.5

Design: Relieving pressure regulator with secondary venting. Materials: Body: Z410 zinc die-cast; spring cap: POM; diaphragm: TPU; seals: NBR. Temperature range: -10C to +60C. Inlet pressure: max. 25 bar. Pressure gauge connection: G 1/8 in Pressure gauge size: 40 mm Pressure gauge ranges: 0.1-3.5 bar (gauge display: 0-6 bar); 0.15-7 bar (gauge display: 0-10 bar); 0.5-10 bar (gauge display: 0-16 bar). Panel mounting thread: M 30 x 1.5. Media: Compressed air, non-toxic and non-flammable gases. Advantages: Automatic venting in the event of overpressure on the secondary side. The handwheel can be locked by pressing it down.
