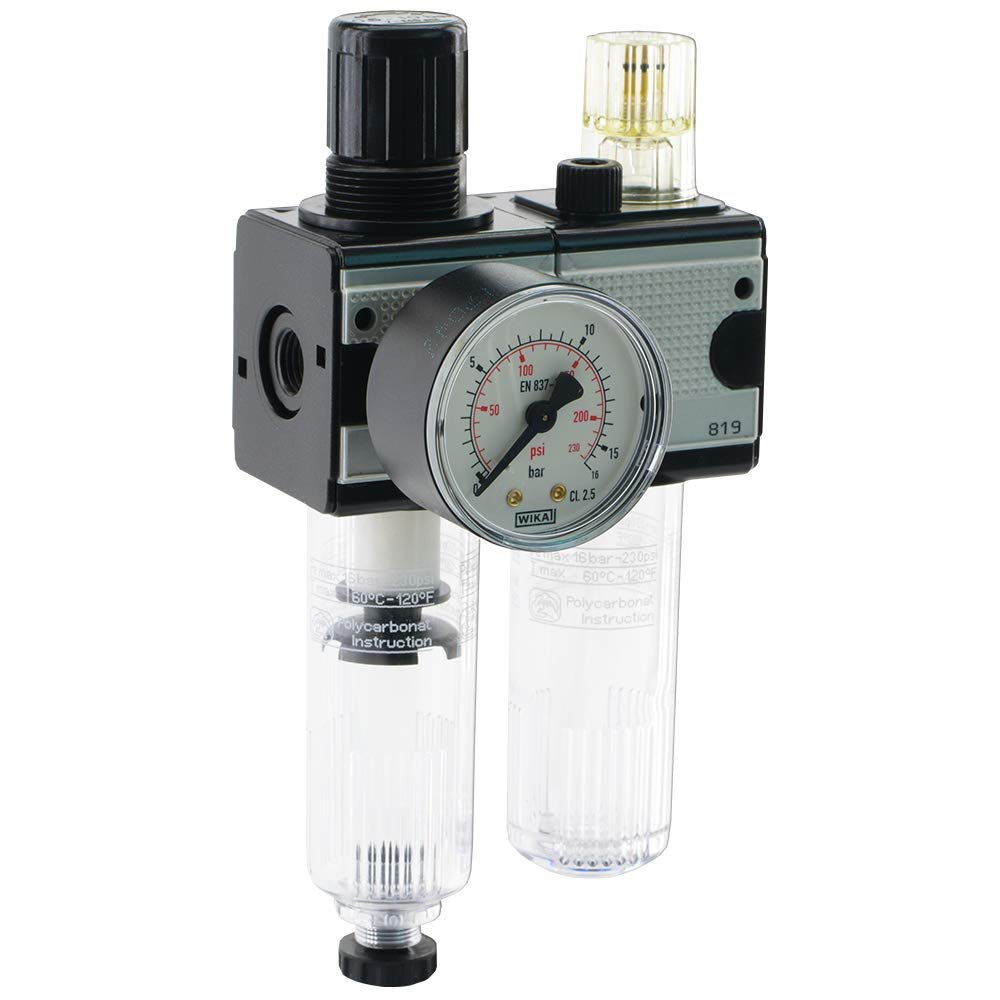

Fitting Components – Series 2 Pressure Regulator, 5,800 L/min, G 1/2 in Thread

Description

• Relieving filter regulator with attached lubricator
• Adjustment range: 0.510 bar
• Thread size: G 1/2 in
• Automatic condensate drain
• Pressure gauge connection: G 1/4 in
• Materials: Z410 zinc die-cast body, POM spring cap, NBR diaphragm and seals, polycarbonate bowl
• Temperature range: -10C to +60C
• Filter pore size: 5 m
• Media: compressed air and neutral gases
• Inlet pressure: 1.516 bar
• Maximum condensate quantity: 50 cm
• Panel mounting thread: M 50 1.5
• Oil reservoir capacity: 125 cm
• Oil dosage at 1,000 L/min: approximately 12 drops/min

Design: relieving filter regulator with attached lubricator. Materials: body made of Z410 zinc die-cast, spring cap made of POM, diaphragm and seals made of NBR, and bowl made of polycarbonate. Temperature range: -10C to +60C. Pressure gauge connection: G 1/4 in. Internal air consumption: none. Filter pore size: 5 m. Condensate drain: semi-automatic*. Media: compressed air and neutral gases. Features include automatic venting when there is excess pressure on the secondary side, simple assembly of individual components using coupling packs within a series and thread size, and a handwheel that can be locked by pressing it down. Inlet pressure: 1.516 bar. Maximum condensate quantity: 50 cm. Panel mounting thread: M 50 1.5. Lubricator response threshold at 6 bar: 140 L/min. Oil reservoir capacity: 125 cm. Oil dosage at 1,000 L/min: approximately 12 drops/min. The unit can be filled with oil while under pressure.
