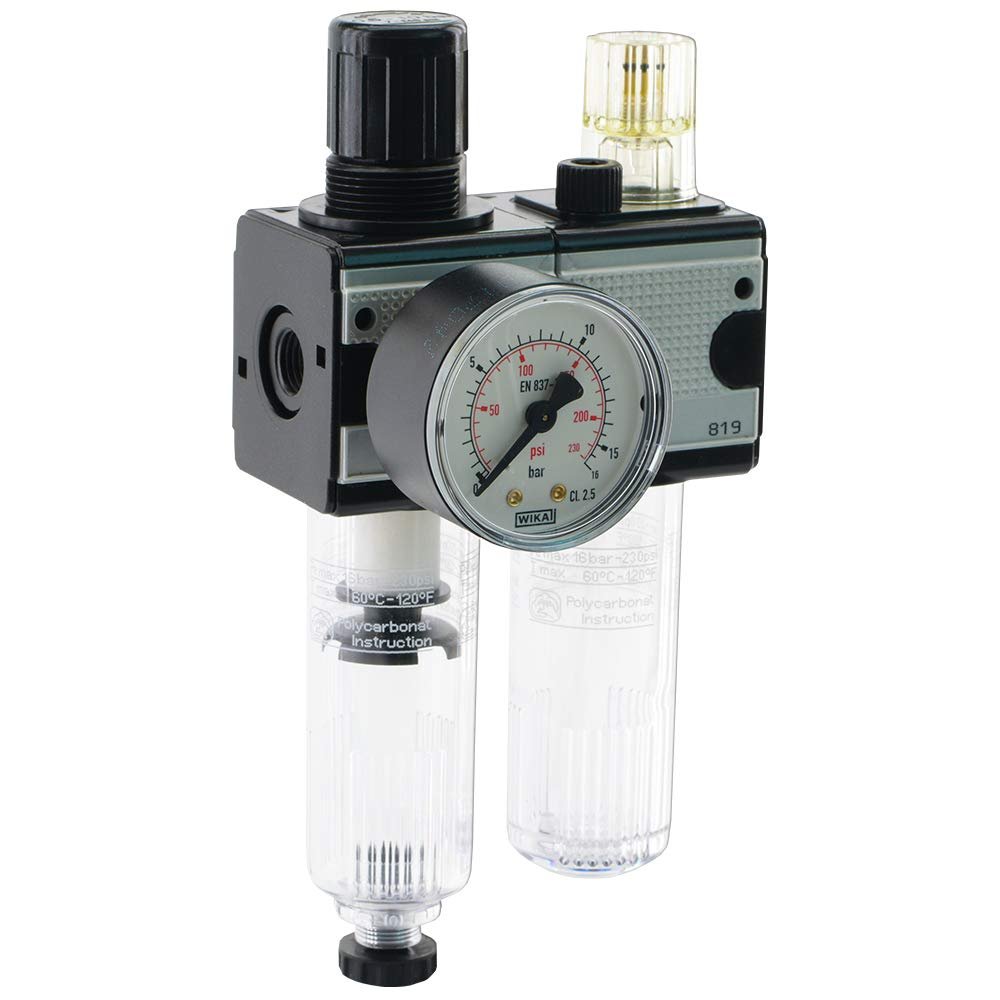

Fitting Components – Series 2 Pressure Regulator, 5,800 L/min (G 1/2 in, Automatic Drain, 0.1–3 bar)

Description

• Relieving filter regulator with attached lubricator
• Body: Z410 zinc die-cast; spring cap: POM
• Diaphragm and seals: NBR; bowl: polycarbonate
• Temperature range: -10C to +60C
• Pressure gauge connection: G 1/4 in
• Maximum condensate capacity: 50 cm
• Oil capacity: 125 cm
• Thread size: G 1/2 in
• Automatic condensate drain

Design: Relieving filter regulator with attached lubricator. Materials: - Body: Z410 zinc die-cast - Spring cap: POM - Diaphragm and seals: NBR - Bowl: Polycarbonate Temperature range: -10C to +60C Pressure gauge connection: G 1/4 in Air consumption: None Filter pore size: 5 m Condensate drain: Semi-automatic* Suitable media: Compressed air and neutral gases Advantages: - Automatic venting when there is excess pressure on the secondary side - Simple assembly of individual components using coupling packages within the same series and thread size - Handwheel can be locked by pressing it down Inlet pressure: 1.516 bar Maximum condensate capacity: 50 cm Panel mounting thread: M 50 1.5 Lubricator response threshold at 6 bar: 140 L/min Oil capacity: 125 cm Oil dosing at 1,000 L/min: Approximately 12 drops/min Additional advantage: Can be filled with oil while pressurized.
