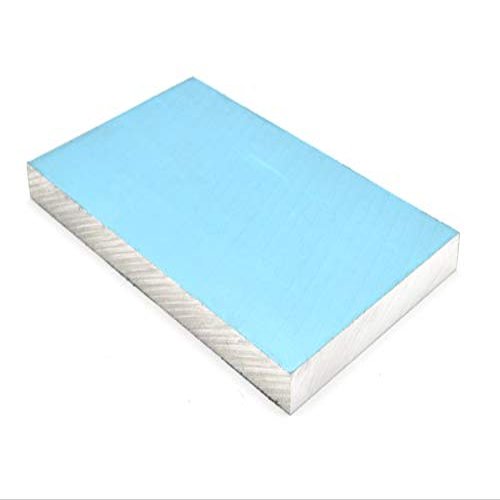

Face-Milled Cast Aluminum Plate EN AW-5083, 10 × 120 mm, 240 mm Long

Description

• Face-milled cast aluminum plate EN AW-5083
• With protective film
• Thickness: 10 mm
• Width: 120 mm
• Cut to length: 240 mm

Face-milled cast aluminum plate EN AW-5083 with protective film, 10 mm thick and 120 mm wide, cut to size. The aluminum plate is sawn to your requested length. The plates are characterized by excellent dimensional stability. Extremely low residual stress prevents the plates from warping during and after machining. Rough milling, finish machining, and additional rework are not required. Applications include reference plates, inspection tools, and fixtures. This plate is used wherever excellent dimensional stability is important. Rough milling and additional rework are no longer necessary during machining. Technical data: - Thickness tolerance: 0.10 mm - Surface finish: Ra max. 0.40 microns - Flatness up to 15 mm thickness: 0.35 mm/m - Flatness from 20 mm thickness: 0.15 mm/m Note: If the plate is to be powder-coated, it must have a hole for hanging in the coating system. This is technically essential. You can use our configurator to specify holes of your choice. If you order a plate with powder coating but without holes, we will add a 23 mm diameter hole in one corner. For very large plates, two holes will be added in two corners so that the plate can be hung straight.
