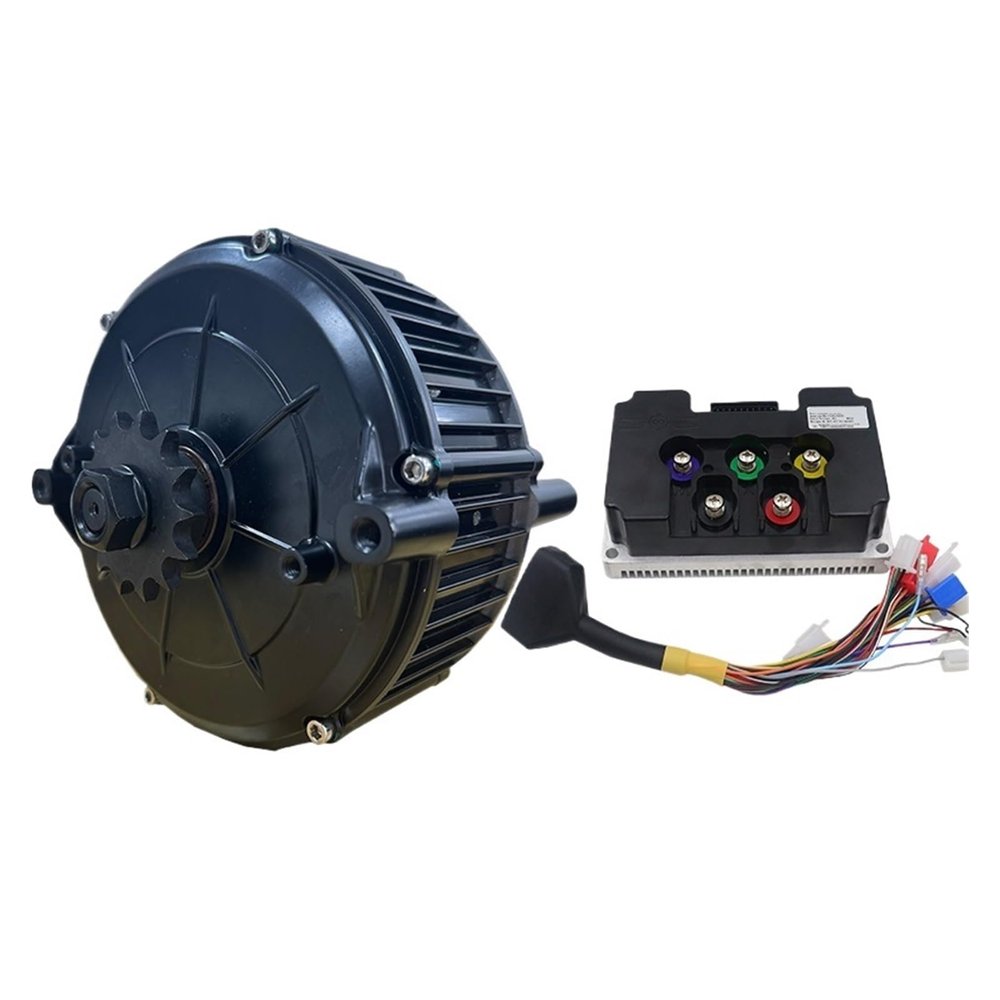

EXHOYAJB QS165 5 kW Chain-Drive Mid-Motor with Fardriver ND72680 Controller

Description

• High torque output: Reduction gearing increases torque for steep slopes, mountains, and other complex terrain.
• Modular design: The motor controller and sensor are highly integrated and can be replaced separately during maintenance.
• Broad vehicle compatibility: Compatible with vehicles using different wheel diameters and tire types.
• High stability: The motor is positioned in the center of the vehicle to improve riding stability, especially for high-speed riding or off-road use.
• Wide application: Suitable for DIY electric scooters, electric bicycles, electric motorcycles, mopeds, and more.

QS165 5 kW chain-drive mid-motor with Fardriver ND72680 controller for lightweight motorcycle mopeds. The QS165 5,000 W mid-motor can be used for electric dirt bikes capable of reaching 72 V and 90 km/h. Package includes: - 1 x QS165 5 kW chain-drive mid-mounted Hall motor - 1 x Fardriver ND72680 controller with Bluetooth Motor general specifications: - Motor type: PMSM motor with Hall sensor - Rated power: 5,000 W (10 kW peak power for a few seconds) - Rated voltage range: 4896 V - Speed: 6,0006,500 rpm (no load) - Magnet height: 35H; 5 pole pairs - Maximum torque: 50 Nm - Efficiency: 93% - Peak current limit: 180 A - Peak phase current: 500 A - Operating temperature: 60 peak - Single Hall set with waterproof connector - Waterproof rating: IP67 - Cooling: Air cooling - Phase wire: 16 mm - Color: Black - Net weight/package weight: approximately 8.2 kg/10 kg - Package dimensions: 30 cm x 30 cm x 30 cm - Drawing: See belt-drive version Controller specifications: - Controller: Fardriver - Model: ND72680 - Operating communication: Hall sensor - Available battery rated voltage: 4872 V - Peak battery voltage: 88 V - Available motor power: 3,0006,000 W - Standard throttle voltage: 05 V - Peak continuous current: 350 A - Peak phase current: 680 A - MOSFET details: 30 FET - Weight: 2.4 kg - Installation dimensions: 180 mm x 118 mm x 60 mm - Controller design: BLDC - Housing material: Aluminum - Programmable support: PC and phone - Suitable for electric bicycles, scooters, motorcycles, tricycles, karts, and ATVs Additional details: - Motor type: Permanent-magnet motor - Other part number: 5 kW - Vehicle placement: Rear - Replacement part number: 72 V - Special feature: Mid-drive PMSM - Material type: Aluminum - Item weight: 7.5 kg - Item height: 189 mm - Item width: 189 mm - Item length: 153 mm
