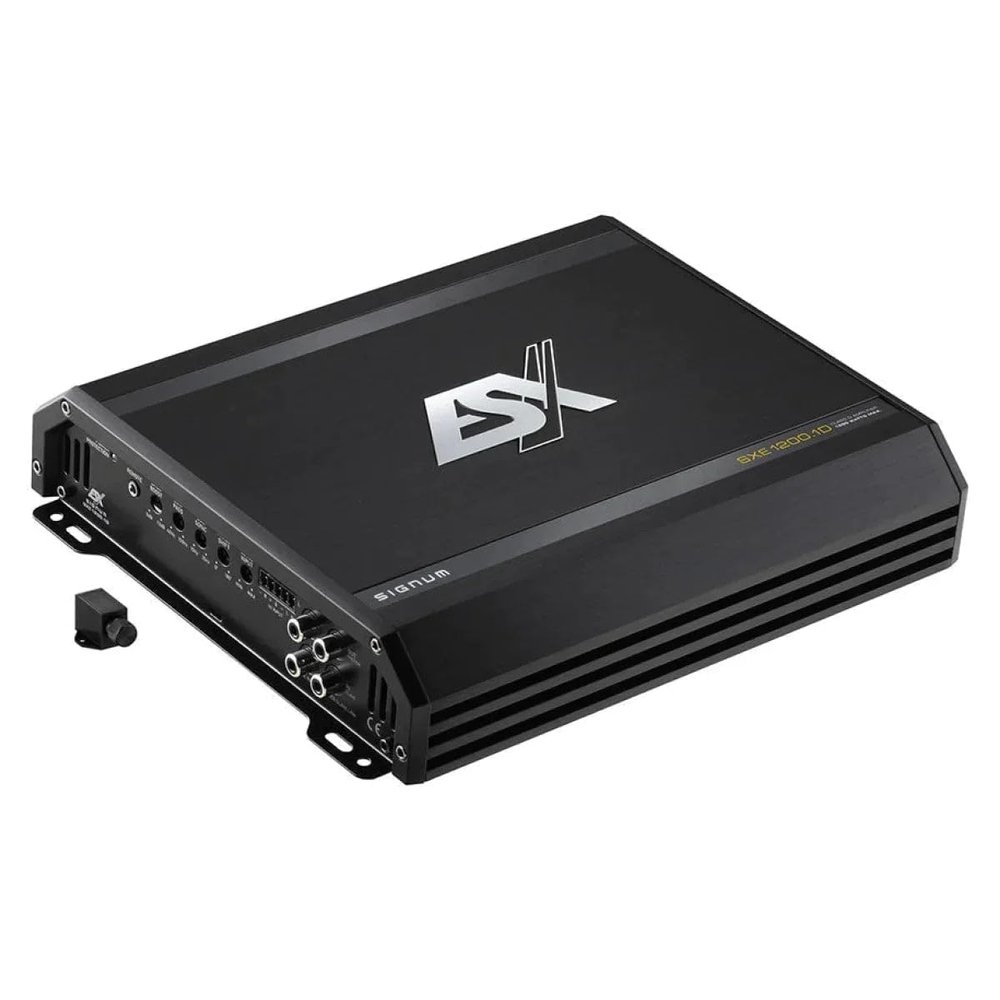

ESX SXE 1200.1D – Mono Class D Digital Amplifier | SIGNUM Series

Description

• Power: 1 x 300/450/600 watts RMS at 4/2/1 ohms
• Low-pass filter (LPF): 40150 Hz
• Adjustable subsonic filter: 1035 Hz
• Adjustable bass boost: 012 dB
• Phase shift: 0180
• High-level inputs with Error Protection System (EPS)
• Automatic turn-on via high-level inputs
• Master/slave link mode
• Compact bass-level remote control
• Efficiency of up to 88%
• Dimensions: 220 x 53 x 268 mm
• Aluminum heatsink with acrylic-glass inserts
• Flush-mounted diamond-cut logo
• Aluminum frames on the end panels
• Heavy-duty connection terminals
• Base plate with robust mounting brackets
• MOSFET PWM power supply with 3-stage protection circuit

ESX SXE1200.1D Mono Class D Digital Amplifier The SIGNUM SXE series is visually based on the successful HORIZON HXE range, but its substantial connection terminals and elegant aluminum end panels show that it belongs to a higher class. The new amplifiers also deliver high-quality sound: premium NE5532 operational amplifiers in the input section provide fine resolution across the entire frequency range and ensure very low distortion. The high-level inputs with automatic turn-on have also been upgraded and feature the Error Protection System (EPS). This prevents functions from being impaired or error messages from being written to the vehicle's memory when connected to OEM factory radios. The powerful Class D mono blocks also feature a phase controller and a master/slave option for linking two identical amplifiers, including a very small, easy-to-install wired remote control for the bass level. Features include an aluminum heatsink with acrylic-glass inserts, a flush-mounted diamond-cut logo, aluminum end-panel frames, heavy-duty connection terminals, and a base plate with robust mounting brackets.
