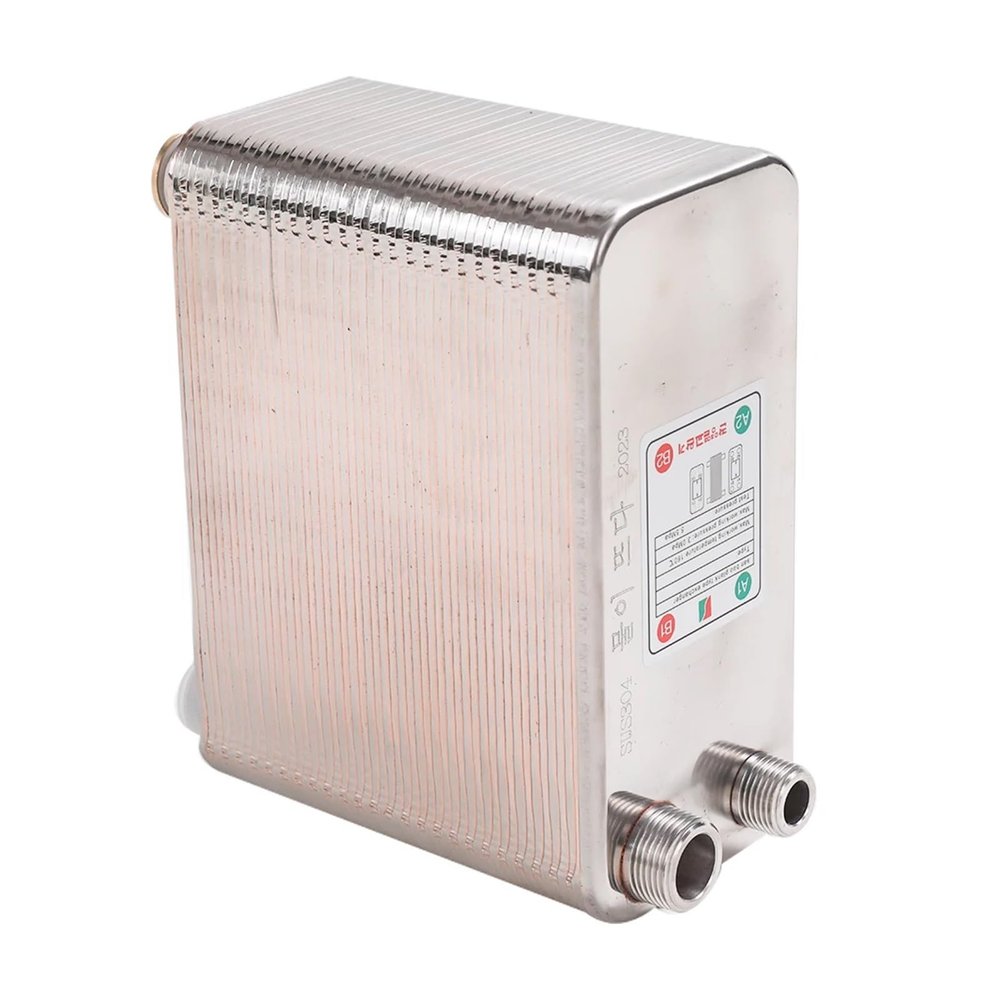

EDEDE 50-Plate Stainless Steel Brazed Heat Exchanger, Different-Side Ports

Description

• Material: SUS 304 stainless steel, food-grade quality
• Brazing material: 99.9% copper
• Applications: homebrew wort cooling and household hot-water supply
• A1/A2 connection threads: 1/2" BSPT male
• B1/B2 connection threads: 1" BSPT male

50-plate stainless steel brazed heat exchanger for homebrewing, beer cooling, instantaneous cooling, water heating, underfloor heating, and hot-water preparation. Tap-water connection: 20 mm outer diameter Heating connection: 25 mm outer diameter Product name: Brazed plate heat exchanger Number of plates: 50 Heat-transfer area per plate: 0.028 m (0.30 ft) Plate thickness: 0.250.35 mm Operating temperature: -160 to +185 C Fewer than 50 plates: suitable for hand and face washing. 6080 plates: suitable for washing dishes and kitchen utensils. 100120 plates: may support bathing, depending mainly on the heat sources ability to supply heat. Heat-exchange rate: 85% With a heat-source temperature above 50 C: comfortable bathing. Below 50 C: average bathing experience in winter. Option information: Same side: all four connections are located on the same side. Different side: the four ports are arranged on opposite sides, with two ports on each side. Please select the option according to your needs. In addition to the four connections listed above, heat exchangers with 50 plates or more have a vent opening. This vent helps release residual air from the heat exchanger so that water can flow out when the heat exchanger is used for the first time. Otherwise, the vent must be sealed with a plug.
