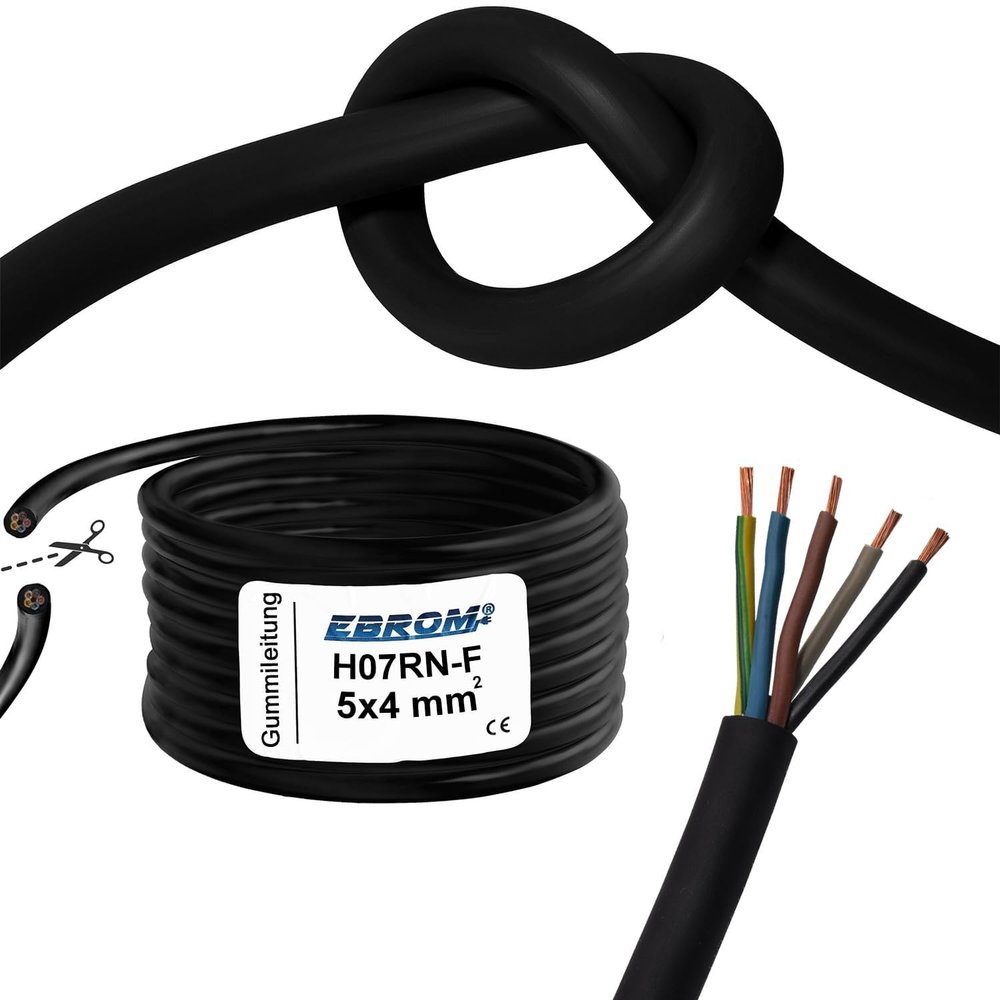

EBROM H07RN-F 5G4 Flexible CEE Rubber Cable, UV- and Oil-Resistant, 57 m

Description

• H07RN-F rubber cable, 5 cores, 5 4 mm; conductor colors: blue, brown, green/yellow, gray, black
• Approx. outer diameter: 19.9 mm
• For connecting heating appliances, tools, movable equipment and machines under medium mechanical stress
• Suitable for dry and damp rooms, outdoor use, commercial and agricultural operations, and construction sites
• Can be permanently installed in temporary structures, on construction sites, and on conveyor systems and machines
• Available in lengths from 10 m to 100 m; select the desired length in meters
• Highly flexible and mechanically robust; resistant to oil, gasoline, alkalis, grease and chemicals
• Rated voltage U0/U: 450/750 V; test voltage: 2,500 V
• Temperature range: moving installation -25 C to +60 C; fixed installation -40 C to +60 C
• Self-extinguishing according to EN 60332-1-2; flame performance class Eca according to EN 13501-6
• Flexible cables may be used for fixed installation according to DIN VDE 0100-520 only when continuously enclosed in conduits or equivalent protective measures
• Selected and prepared by EBROM cable specialists

The H07RN-F cable, manufactured in a harmonized design according to VDE 0282, is suitable for a wide range of applications requiring a robust and reliable power supply. It is designed for connecting heating appliances, commercial tools, movable equipment and machines, particularly in environments with medium mechanical stress. The cable is suitable for dry and damp rooms, outdoor use and potentially explosive areas, as well as commercial and agricultural operations and construction sites. It can also be used in temporary structures and on conveyor systems and machines. Rated voltage: U0/U = 450/750 V AC; for fixed and protected installation in conduits or equipment, it is also approved for 600/1000 V AC. Minimum bending radius: 4 the outer diameter for fixed installation and 6 the outer diameter for moving use. Conductor colors comply with DIN VDE 0293. The outer sheath is black. The robust outer sheath protects against external influences and adverse environmental conditions, while the high flexibility facilitates installation in complex environments.
