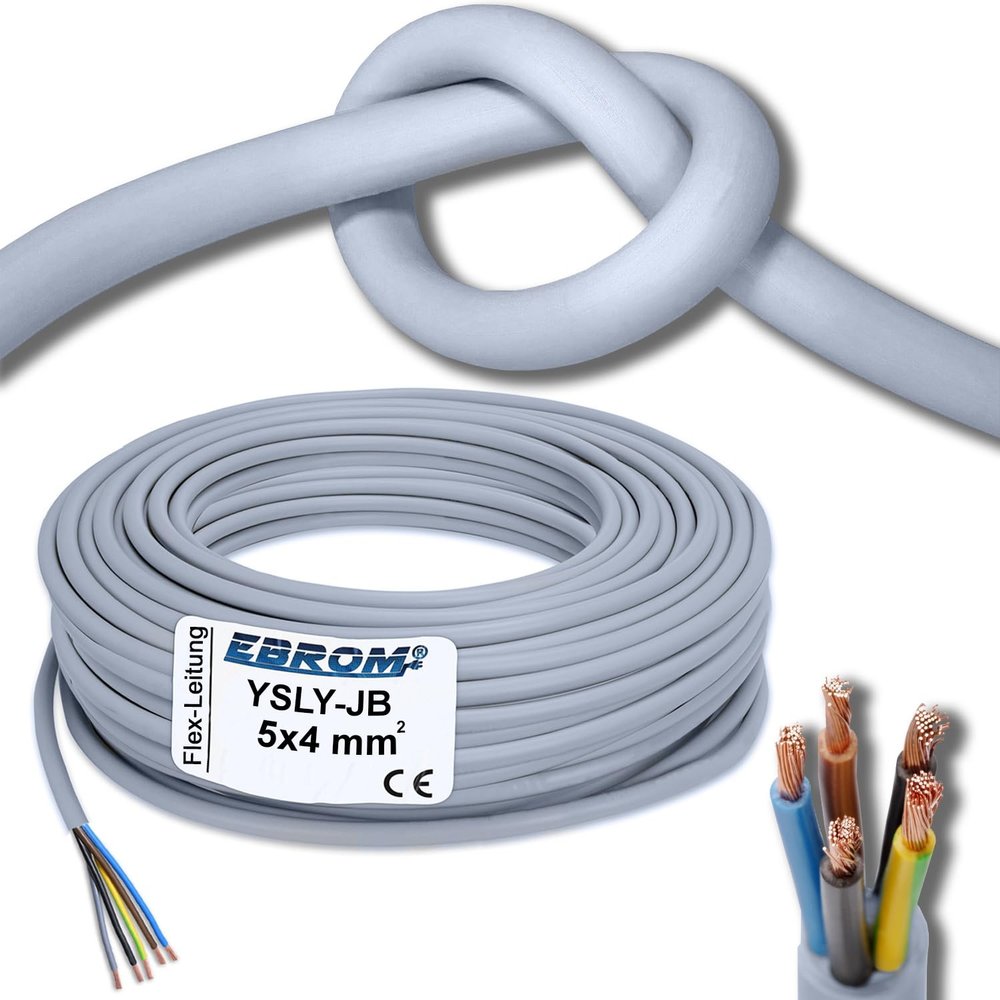

EBROM Flexible YSLY-JB 5x4 mm Installation Cable, Gray, for Charging Stations – 50 m

Description

• YSLY-JB 5x4 mm installation cable
• 5 cores: blue, brown, gray, black, and green/yellow
• Cross-section: 5 x 4 mm
• Approx. outer diameter: 13.7 mm
• Very flexible and suitable for supplying power to electric vehicle charging stations; follow installation instructions
• Suitable for many other applications, including installation in conduits in dry and damp rooms
• Mechanically robust and thermally resistant; largely resistant to oil, gasoline, alkalis, fats, and chemicals
• Available in lengths from 5 m to 70 m in one continuous piece; select the desired length in meters
• Flexible stranded copper conductor in accordance with VDE 0295
• Operating voltage: max. 500 V
• Test voltage: 2,000 V AC
• Breakdown voltage: >5 kV
• Insulation resistance: min. 20 M/km
• Temperature range: moving -5C to +80C; fixed installation -20C to +80C
• Flame-retardant in accordance with VDE 0482-332-1-2 / IEC 60332-1-2
• Fire behavior class Eca according to EN 13501-6
• Selected and prepared for you by EBROM cable professionals
• Safety notice: According to DIN VDE 0100-520, flexible cables are permitted for fixed installation provided they are continuously enclosed in conduits or protected by equivalent measures

Very flexible 5x4 mm installation cable for supplying power to an electric vehicle charging station. Its flexible properties make it easy to install, including in empty conduits, avoiding the difficulties associated with overly rigid cable. Suitable for dry and damp rooms. The cable is available in multiple lengths from 5 m to 70 m in one continuous piece; simply select the desired length in meters and add it to your cart. Follow the applicable installation instructions and the safety notice for fixed installation.
